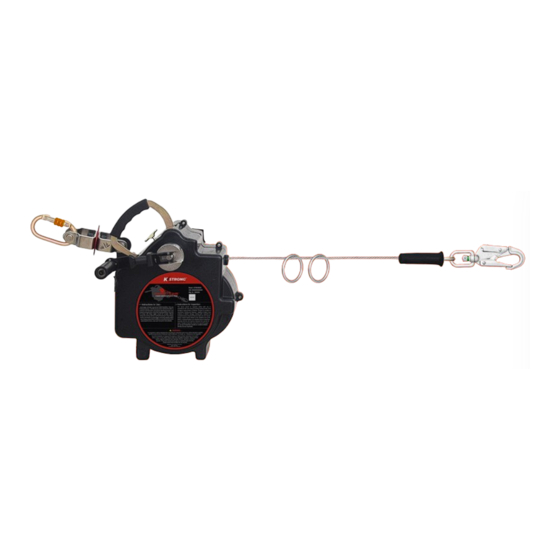

- Page 1 USER INSTRUCTION MANUAL EN 795:2012 Type C HORIZONTAL ANCHORAGE LINE TS 16415:2013 Type C USING GI WIRE ROPE THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODEL: AFA940014 EN ISO 80079-36:2016 EN ISO 80079-37:2016...
-
Page 2: Technical Specification
(for upto 2 users) APPLICATIONS: The KStrong Horizontal Lifeline System is designed for use as an anchoring means for one or two personal fall arrest systems. Use the Horizontal Lifeline (HLL) where horizontal mobility and fall protection are required. Limitations: Consider the following application limitations before using this equipment: Ÿ... -
Page 3: Installations
Hazards may include, but are not limited to; high heat, caustic chemicals, corrosive environments, high voltage power lines, explosive or toxic gases, moving machinery, or sharp edges. Contact KStrong if you have questions about using this equipment where physical or environmental hazards exist. -
Page 4: Pre-Use Check
Ensure all connections are compatible in size, shape and strength. Do not use equipment that is not compatible. Ensure all connectors are fully closed and locked. KStrong connectors (Snap Hooks and Karabiners) are designed to be used only as specified in each product's user instructions. -
Page 5: Operation
NOTE: Large throat-opening snap hooks should not be connected to standard size D-rings or similar objects which will result in a load on the gate if the hook or D-ring twists or rotates. Large throat snap hooks are designed for use on fixed structural elements such as rebar or cross members that are not shaped in a way that can capture the gate of the hook. -
Page 6: Operation And Use
AFA940014 AFA940014 OPERATION AND USE: System Installation: Fig. A shows typical horizontal lifeline system installations. When using an energy absorbing lanyard to connect to the system, the end anchorages must be located at a height which will limit the free fall to 6 ft. (1.8 m). When using a self retracting lifeline (SRL) to connect to the system, the end anchorages must be located above the user. -
Page 7: How To Install
STEP 5 STEP 6 Tensioner Connect the crank handle to the AFA940014 is ready to use. After use, rotate the handle in anti- tensioner shaft and remove excess slack clockwise direction to retrieve the wire. by rotating clockwise. The lifeline must be tensioned until a red washer is freely moving. -
Page 8: Cleaning And Maintenance
WARNING: Both ends of the lifeline must be securely attached to appropriate anchors when in use. Never attach the end of the lifeline to a harness to use it in the manner of a winch or SRL. 14. CLEANING AND MAINTENANCE: Cleaning of soil &... - Page 9 EN 795:2012 Type C & EN ISO 80079-36:2016 EN ISO 80079-37:2016 TS16415:2013 Type C (for 2 users) KStrong.com Made In India Model: AFA940014 UID: XXXXXXXXXXXX Mfg. Dt.: XXXXXX QRCODE KStrong Inc. 150 N. Radnor Chester Road Suite F200 Radnor, Pennsylvania 19087 United States...
- Page 10 LIFESPAN: The estimated product Lifespan is 10 years from the date of manufacture. The following factors can reduce the Lifespan of the product: intense use, contact with chemical substances, specially aggressive environments, extreme temperature exposure, UV exposure, abrasions, cuts, violent impacts, bad use or maintenance.
- Page 12 Certification Body : SATRA Technology Europe Ltd, Bracetown Business Park, Clonee, Dublin D15 YN2P Ireland (Notified Body 2777) For EU Declaration, please visit https://kstrong.com/asia/eu-declaration-form/ KStrong Inc. 150 N. Radnor Chester Road Suite F200 Radnor, Pennsylvania 19087 United States Contact Email: customercare@kstrong.com www.kstrong.com...
