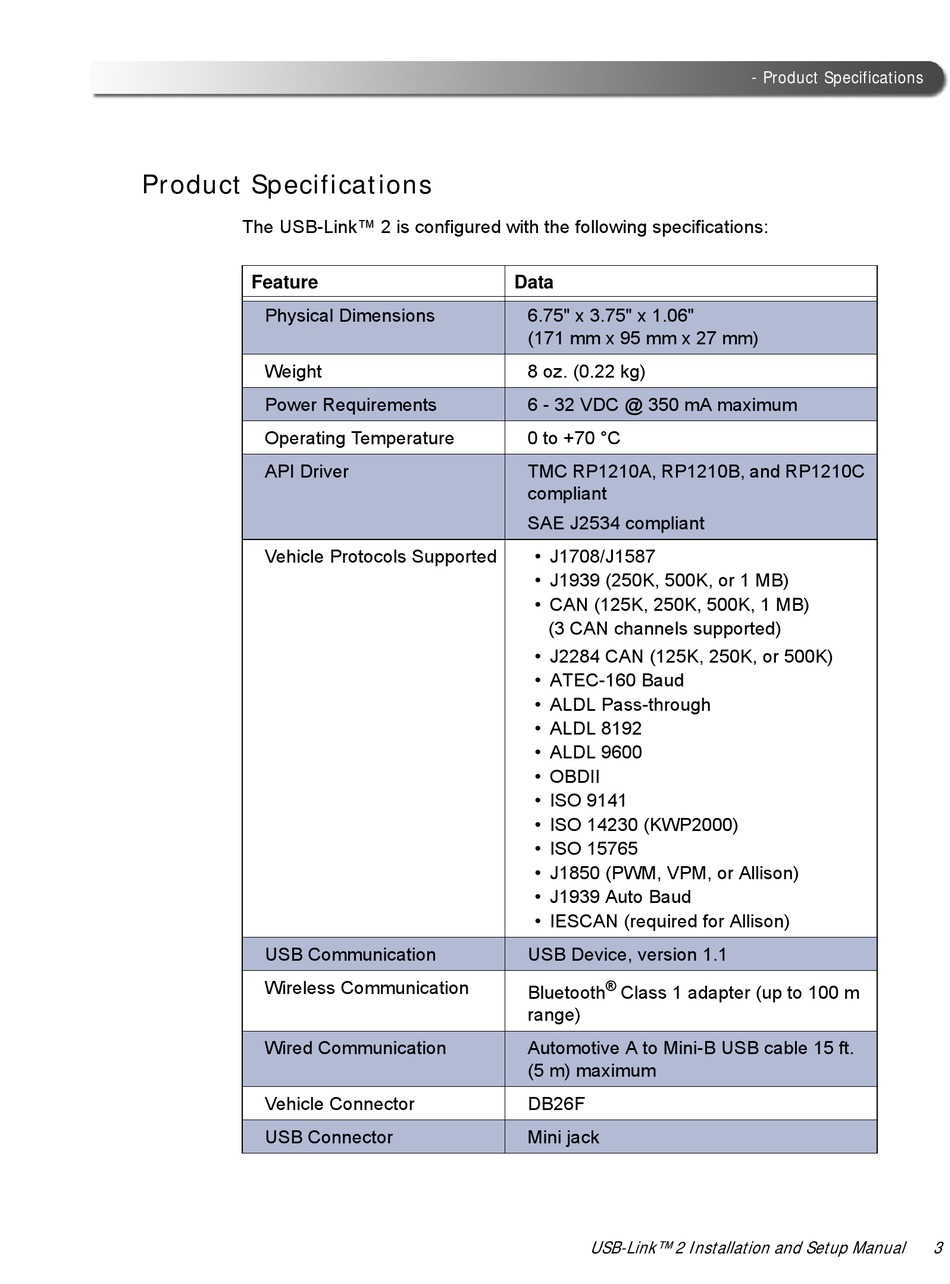

Product Specifications

The USB-Link™ 2 is configured with the following specifications:
Feature
Physical Dimensions
Weight
Power Requirements
Operating Temperature
API Driver
Vehicle Protocols Supported
USB Communication
Wireless Communication
Wired Communication
Vehicle Connector
USB Connector
Data
6.75" x 3.75" x 1.06" 
(171 mm x 95 mm x 27 mm)
8 oz. (0.22 kg)
6 - 32 VDC @ 350 mA maximum
0 to +70 °C
TMC RP1210A, RP1210B, and RP1210C
compliant
SAE J2534 compliant
• J1708/J1587
• J1939 (250K, 500K, or 1 MB)
• CAN (125K, 250K, 500K, 1 MB)
(3 CAN channels supported)
• J2284 CAN (125K, 250K, or 500K)
• ATEC-160 Baud
• ALDL Pass-through
• ALDL 8192
• ALDL 9600
• OBDII
• ISO 9141
• ISO 14230 (KWP2000)
• ISO 15765
• J1850 (PWM, VPM, or Allison)
• J1939 Auto Baud
• IESCAN (required for Allison)
USB Device, version 1.1
®
Bluetooth Class 1 adapter (up to 100 m
range)
Automotive A to Mini-B USB cable 15 ft.
(5 m) maximum
DB26F
Mini jack
