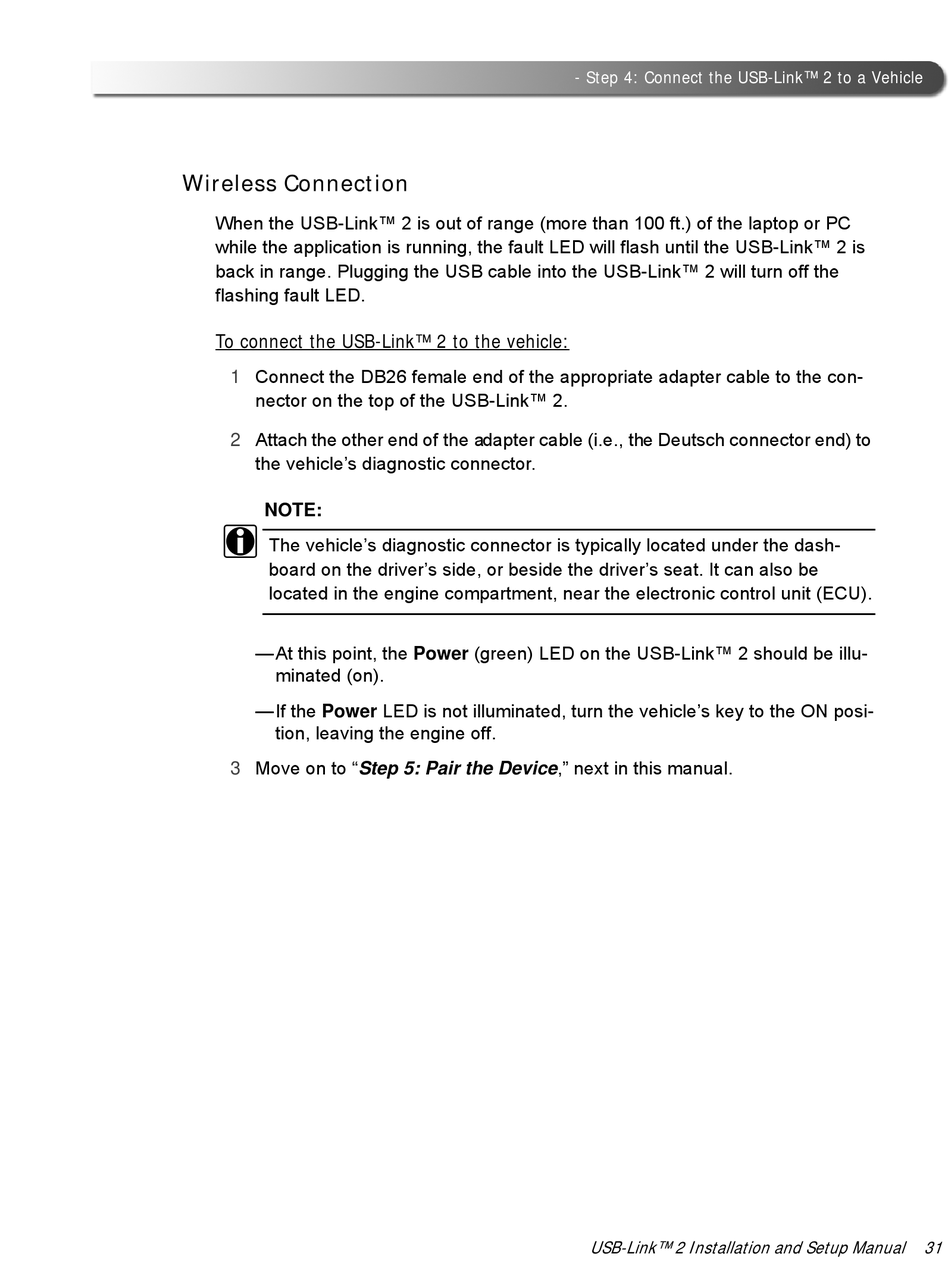

Wireless Connection

When the USB-Link™ 2 is out of range (more than 100 ft.) of the laptop or PC
while the application is running, the fault LED will flash until the USB-Link™ 2 is
back in range. Plugging the USB cable into the USB-Link™ 2 will turn off the
flashing fault LED.
To connect the USB-Link™ 2 to the vehicle:
Connect the DB26 female end of the appropriate adapter cable to the con-
1
nector on the top of the USB-Link™ 2.
2 Attach the other end of the adapter cable (i.e., the Deutsch connector end) to
the vehicle's diagnostic connector.
NOTE:
i
The vehicle's diagnostic connector is typically located under the dash-
board on the driver's side, or beside the driver's seat. It can also be
located in the engine compartment, near the electronic control unit (ECU).
—At this point, the Power (green) LED on the USB-Link™ 2 should be illu-
minated (on).
—If the Power LED is not illuminated, turn the vehicle's key to the ON posi-
tion, leaving the engine off.
Move on to "Step 5: Pair the Device," next in this manual.
3
- Step 4: Connect the USB-Link™ 2 to a Vehicle
USB-Link™ 2 Installation and Setup Manual 31
