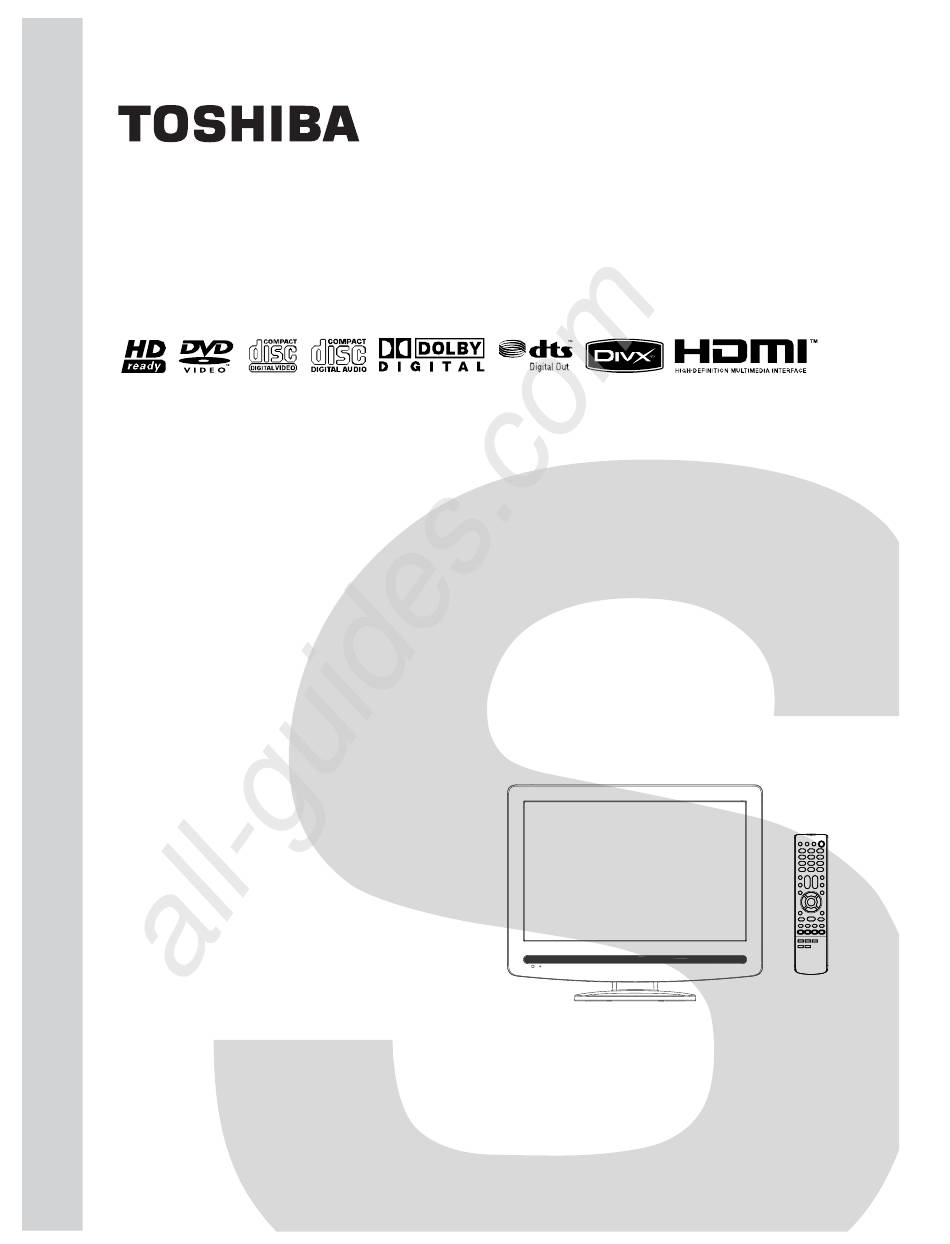

SERVICE MANUAL
19-inch Diagonal LCD TV/DVD
COMBINATION
The above models are classified as green products (*1), as indicated by the underlined serial numbers.
This Service Manual describes replacement parts for the green products. When repairing these green
product(s), use the part(s) described in this manual and lead-free solder (*2).
For (*1) and (*2), see the next page.
©2008 Toshiba Corporation
All manuals and user guides at all-guides.com
19DV550P
19DV551P
DOCUMENT CREATED IN JAPAN, December, 2008 GREEN
FILE NO. 810-200896GR
