Monicon GTR-205 Manual

Monicon GTR-205 Manual

Generator controller

Advertisement

Quick Links

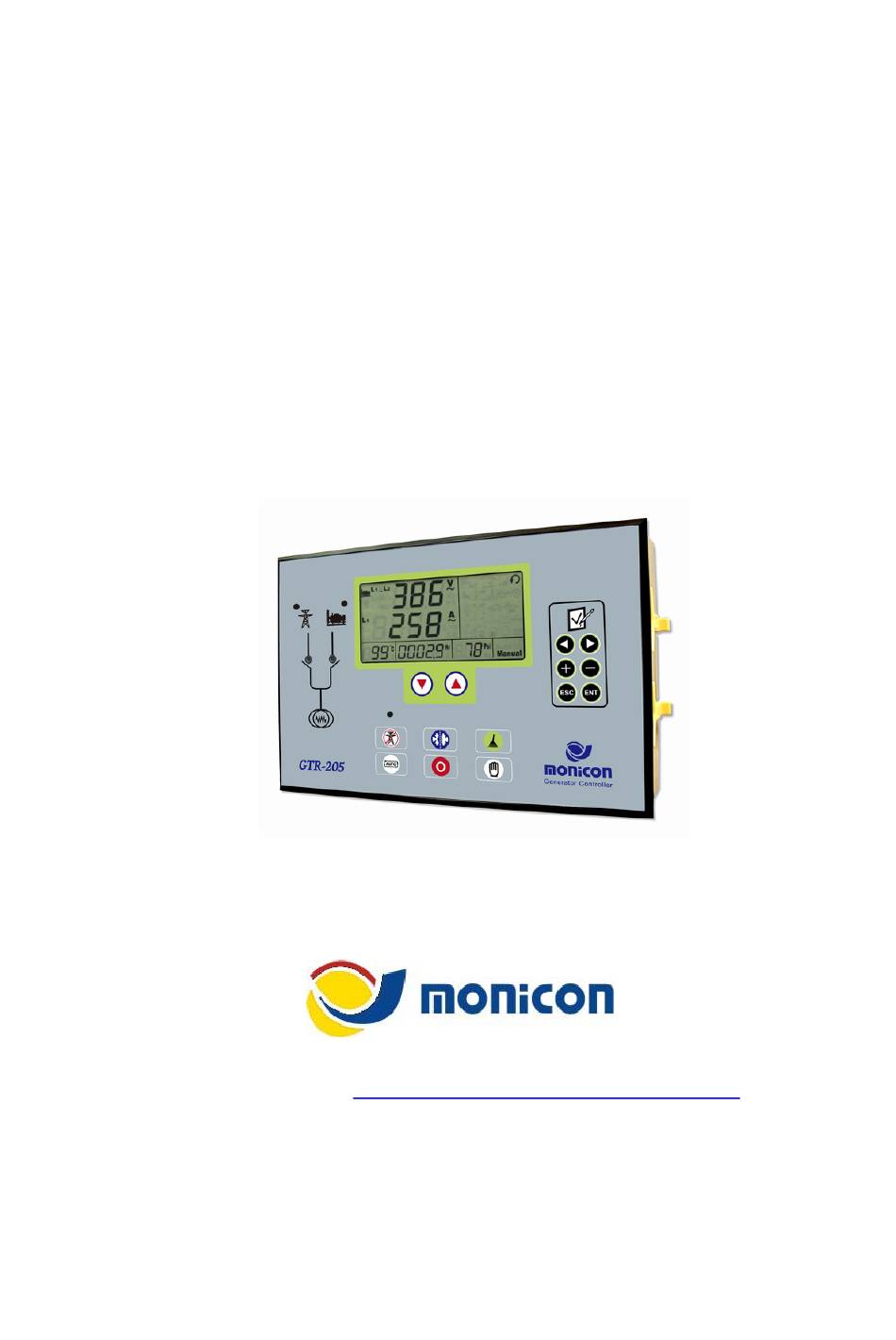

GTR-205
Generator Controller
Manual
:h t t p : / / w w w . m o n i c o n . c o m . t w
W e b S i t e
E - m a i l : s a l e s @ m o n i c o n . c o m . tw

Advertisement

loading
Need help?

Need help?

Do you have a question about the GTR-205 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monicon GTR-205

  • Page 1 GTR-205 Generator Controller Manual :h t t p : / / w w w . m o n i c o n . c o m . t w W e b S i t e E - m a i l : s a l e s @ m o n i c o n . c o m . tw...
  • Page 2: Specification

    BETA 1. Introduction GTR-205 is a full digital Gen-set controller equipped with all basic functions and LCD panel that include error message display; fault input detection, analog signal measurement and generator status. When the error occurred, GTR-205 shuts down the engine; real-time diagnosis can be known easily by reading LCD panel information.
  • Page 3: Panel Description

    GTR 205 Manual BETA Dimension 216 mm × 144 mm × 89mm Panel cutout 210 mm × 138 mm Weight 745 g 4. Panel description 4.1 Front view Fig. 1 File version: V20501E...
  • Page 4 GTR 205 Manual BETA 4.2 LED light indication Test with load Mains available Generator Close Mains available LED Close Generator 4.2.1. Mains available LED On when the mains is within limits and able to take load. Off : when the mains happens unbalance in voltage or frequency. 4.2.2.
  • Page 5 GTR 205 Manual BETA 4.4 LCD Icon Explanation Icon Explanation Icon Explanation Emergency stop AC value High coolant temperature DC value Idle Mode Unit of voltage Low frequency Running hours Low battery voltage Unit of frequency Low fuel level Unit of Celsius Low oil pressure Unit of pressure Low coolant level...
  • Page 6 GTR 205 Manual BETA 4.5.14 Gen-set L2-N Phase Voltage value 4.5.15 Gen-set L3-N Phase Voltage value 4.5.16 Utility L1-L2 Phase Voltage value 4.5.17 Utility L2-L3 Phase Voltage value 4.5.18 Utility L3-L1 Phase Voltage value 4.5.19 Utility frequency 4.5.20 Error record 4.5.21 Start fail record 4.5.22...
  • Page 7 GTR 205 Manual BETA a. Button of In/ Out parameter setting a. Button of confirm LCD display line 1 : L1-L2 gen-set voltage L2-L3 gen-set voltage L3-L1 gen-set voltage L1-N gen-set voltage L2-N gen-set voltage L3-N gen-set voltage L1-L2 utility voltage L2-L3 utility voltage L3-L1 utility voltage L1-L2 gen-set voltage...
  • Page 8 GTR 205 Manual BETA B. Parameter setting Code"0528" Gen-set System presumption : 10 seconds Paramete => => r : Stop (Figure 5) (Figure 6) (Figure 7) Parameter 1 Press the button can enter the code entry model.,The way to press code “0528” is pressing the button 5 times and pressing the button 2 times and then pressing the...
  • Page 9 GTR 205 Manual BETA D. Parameter setting switch. Part II (Figure 11) (Figure 12) For example : Parameter 1, System presumption range : 5~40 secs. If the setting value you need are lower than the system acceptable range (5 secs), the LCD panel will show you to alarm the error as figure 11.
  • Page 10: Parameter Setting

    GTR 205 Manual BETA 5.6. AUTO:Press the button will lead you into“AUTO" model and detect the utility automatically then the system will decide to start the engine or not. At that time, LCD will show the icon to present the situation of pre-heat and start the engine after the pre-heat. If the engine start failed, the system will return to the model of “Pre-heat”...
  • Page 11 GTR 205 Manual BETA Cooling duration Range: 0~1250 sec (Setting value : 0~250, Cooling time=Setting value X 2.5sec) Default: 0 sec Description: When system is accepted normal stop command, generator will be in the cooling mode and engine running until the time of this setting is reached. Idle Time Range: 0~1250 sec (Setting value : 0~250, Idle running time=Setting value X 2.5secs) Default: 0 sec...
  • Page 12 GTR 205 Manual BETA 6.10 Input switch type Range: 0~31 Default: 29 Description: Select switch type for the fault input switch. H.W.T L.O.P. Reserve Reserve Reserve L.F.L switch L.W.L switch EMS. switch switch switch Result Weighted Default List 2 ⌦ In table “1”...
  • Page 13 GTR 205 Manual BETA 6.16 High voltage setting Range:220~484 Default:414 Description : When generator’s voltage is higher than this setting value, system will show high voltage error and shut down the engine. 6.17 AC short setting Range:100~500 Default:450 Description : When generator’s AC current higher than this setting value, system will show AC short error and shut down the engine.
  • Page 14 GTR 205 Manual BETA 6.22 Display option Range:0~15 Default:12 Pick up/ RPM- ℃/℉ PSI/BAR Reserve Reserve Reserve Reserve Charger Alt. real/convert. ℃ Charger Alt. Real RPM Reserve Reserve Reserve Reserve Result Frequency ℉ Reserve Reserve Reserve Reserve Pick up convert Weighted Default List 4...
  • Page 15 GTR 205 Manual BETA 6.28 Relay 1 Range:0~29 Relay List Default:3 (Preheat output ) Description : Please study Relay List 0.The sum of errors output /1.System error /2.Gen-set 6.29 Relay 2 power supply to load /3.Preheat output /4.Fuel before Range:0~29 Default:12(Auto module) start /5.Idle output /6.Over speed (RPM) / 7.High Description : Please study Relay List...
  • Page 16 GTR 205 Manual BETA 6.38 PARA 38 Utility low frequency Range:42~61 Hz Default:54 Hz Description : When utility’s frequency lower than this setting value, system will show utility low frequency error and start the engine. 6.39 PARA 39 Utility unbalance Range:5~30 Default:5 Description : When utility’s 3 phase voltage over than this setting value, system will show...
  • Page 17 GTR 205 Manual BETA 7. System parameters Emergency stop delay: 0.4 sec/ action: stop Over frequency delay: 2 sec/ action: stop High coolant temperature delay: 1 sec/ action: stop Low oil pressure delay: 1 sec / action: stop Low coolant level delay: 4 sec/ action: stop Low frequency: 6 sec/ action: stop...
  • Page 18 GTR 205 Manual BETA 8. Back view Description 8.1 Back view Fig. 13 File version: V20501E...
  • Page 19 GTR 205 Manual BETA 8.2 Pin definition Description Description Battery plus pole L2 Phase Utility power input Battery negative pole L3 Phase Utility power input Starter output N Phase Utility power input Fuel valve output Utility LOAD 1 Stop output Utility LOAD 2 Alarm output Utility close relay contact 1...
  • Page 20 GTR 205 Manual BETA 9. Dimension Fig. 14 Back view Fig. 15 Side view Fig. 16 Top view File version: V20501E...
  • Page 21 GTR 205 Manual BETA 10. Example wiring Fig.17 File version: V20501E...

This manual is also suitable for:

Gtr-200
