Summary of Contents for Monicon GTR-168
- Page 1 GTR-168 Generator Controller Manual...
-
Page 2: Table Of Contents
GTR-168 Table of Content Controller Description ........................2 Profile...............................2 Back Panel Function Description.....................3 Case Dimension ..........................4 Specifications ............................5 Wiring ...............................6 Ver.:V16803... -
Page 3: Controller Description

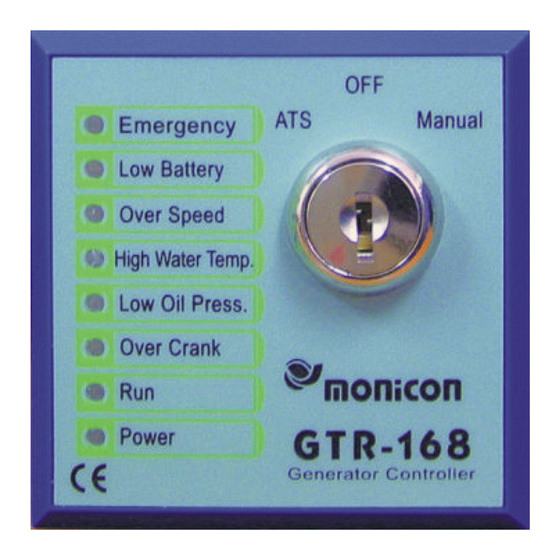

3 kinds of operation mode: Manual, Auto, Off. No special training is required due to the easy operation. Fault protection includes: Emergency stop, Over speed, High water temperature, Low oil pressure, and Over crank. GTR-168 also displays the low battery voltage warring, and indicates the running status and power status.GTR-168 equips with high firm continental-type terminal that provides easy plug in and removal. -
Page 4: Back Panel Function Description
GTR-168 3. Back Panel Function Description Fig. 2 GTR-168 Controller Back Panel Number Description Code Input power (Battery +) Ground (Battery -) Output starter relay Motor Output fuel valve relay Valve Output alarm relay Alarm Output stop relay Stop Output Idle/Pre-heat relay... -
Page 5: Case Dimension
Pin9 Cooling time 0 Sec 60 Sec 150 Sec 300 Sec List 3 Cooling Time Pin10：Idle / Pre-heat Function Select【ON：Idle；OFF：Pre-heat】 4. Case Dimension Fig. 3 GTR-168 Case Dimension of Back View Fig. 4 GTR-168 Case Dimension of Side View Ver.:V16803... -
Page 6: Specifications
GTR-168 5. Specifications DC supply： 8~36 VDC Power Consumption： Max.5 W Measuring Frequency： 0～75 Hz (min AC Volt.25V ; max AC Volt. 300V) Relay Output ： Start output：5A Valve output：5A Idle / Pre -heat output：5A Alarm Output：5A Stop output ：5A Ambient Temperature Range：... -
Page 7: Wiring
GTR-168 6. Controller Wiring Example Fig. 5 Controller wiring Ver.:V16803...
