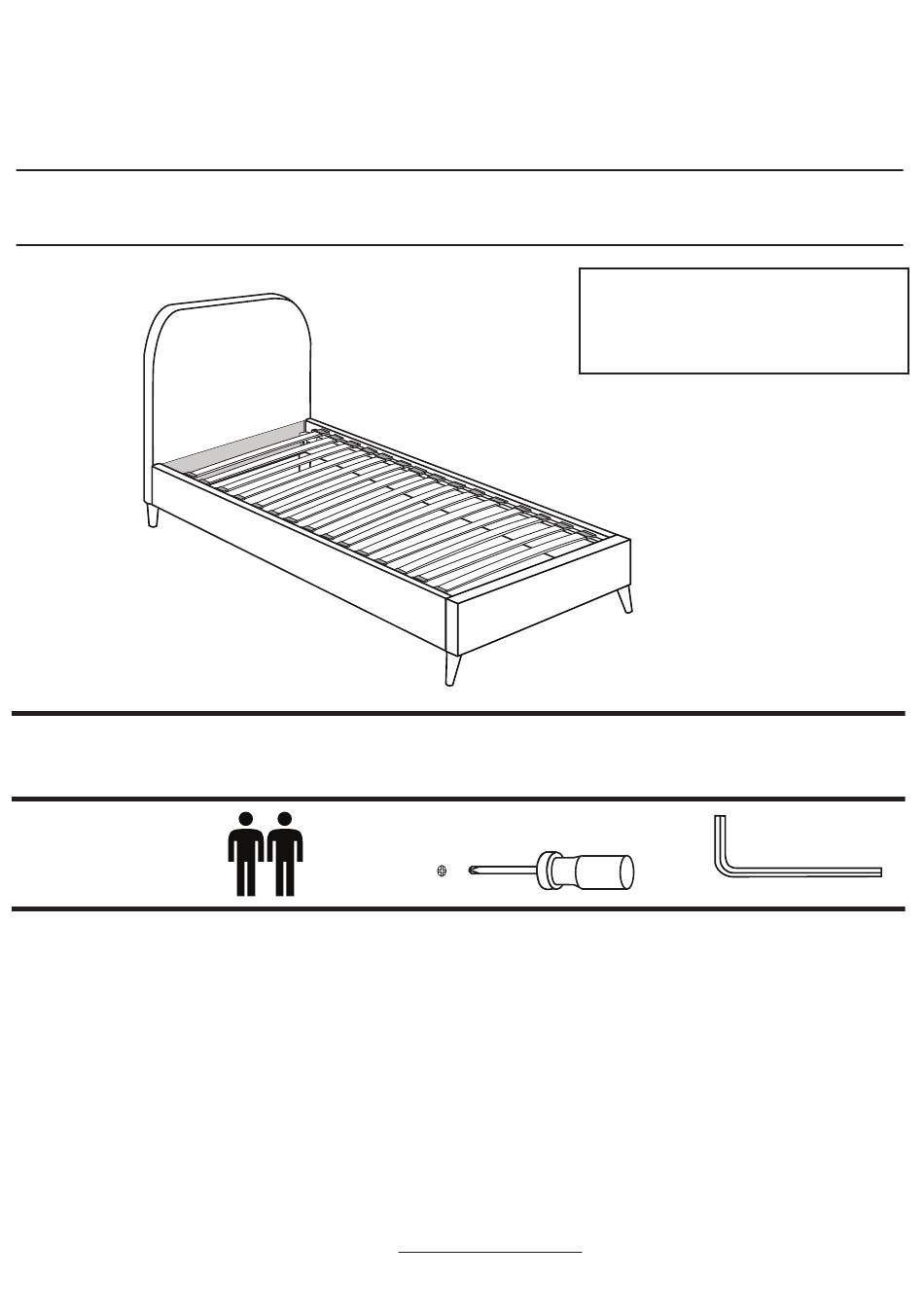

Thank you for purchasing this Jamie Bed. Please read the instructions carefully before use to ensure safe
and satisfactory operation of this product.
PRE-ASSEMBLY PREPARATION
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the John Lewis Helpline.
This product is HEAVY. It should be assembled as near as possible to the point of use. TAKE CARE WHEN
LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 40 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
If you require any additional information or have any issues with this product please call the
John Lewis Helpline on 01244 689949 or email mail@fwgroup-uk.com
Jamie Bed
Not included in hardware list
1/6
Stock Code : 803/43703
For product support or spare parts please call
the John Lewis Helpline;
E: mail@fwgroup-uk.com
T: 01244 689949
Advertisement
Related Manuals for John Lewis 803/43703
Summary of Contents for John Lewis 803/43703
- Page 1 Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the John Lewis Helpline. This product is HEAVY. It should be assembled as near as possible to the point of use. TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
- Page 2 Fittings and parts checklist Fittings M4 Allen Key x 1 Nut M8 x 2 M5 Allen Key x 1 Screw 3.5 X 30mm x 2 Spanner M13 x 1 Side Caps x 30 M6 X 25mm Bolt x 4 Spring Washer M8 x 2 Screw 3.5 X 18mm x 2 Parts Headboard x 1...
- Page 3 Step by step assembly instructions Step One Hook the pre-attached metal fixing on the Side Rails (3) over the pre-inserted bolts in the Headboard (1) and Footboard (2) then tighten the bolts with M5 Allen Key (B) to secure. Bracket Side Rail Bracket Side Rail...
- Page 4 Step Three Attach Metal Plate (6) with Wooden Leg (5) together as shown in Step 1. Make sure the arrow on the metal plate and wooden leg line up. Attach together Wooden Leg (5) and Metal Plate (6) using Spring Washer (H) and Nut M8 (E) then tighten with Spanner M13 (G) and Screw 3.5x18mm (I).
- Page 5 Step Four With the curved side facing upwards, insert end of Slats (4) into a Side Cap (C). Use your palms to push down the Side Caps (C) into the Side Rails (3), as shown in diagram below. Side Caps (30pcs) Slats (15 pcs) Step Five Bed is ready to use.
-
Page 6: Care And Maintenance
Please be careful to retain all fittings when doing this. If you require any additional information or have any issues with this product please call the John Lewis Helpline on 01244 689949 or email mail@fwgroup-uk.com John Lewis Partnership 171 Victoria Street, London, SW1E 5NN.
