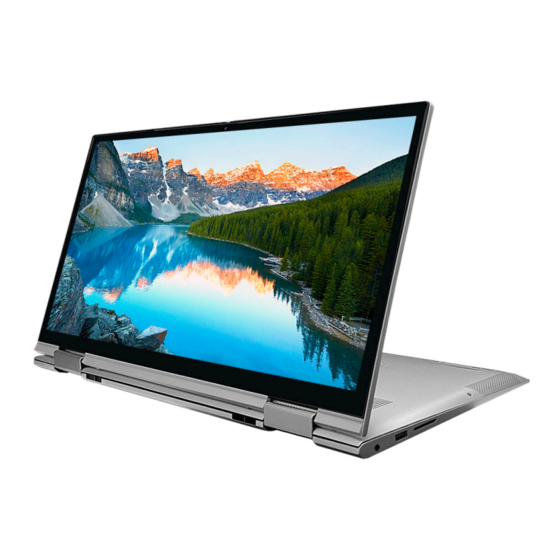

Dell Inspiron 7506 2-in-1 Silver Setup And Specifications
Hide thumbs
Also See for Inspiron 7506 2-in-1 Silver:
- Service manual (74 pages) ,
- Setup and specifications (35 pages)
Related Manuals for Dell Inspiron 7506 2-in-1 Silver
Summary of Contents for Dell Inspiron 7506 2-in-1 Silver
- Page 1 Inspiron 7506 2-in-1 Silver Setup and Specifications Regulatory Model: P97F Regulatory Type: P97F003 July 2021 Rev. A01...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2020-2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your Inspiron 7506 2-in-1 Silver................. 4 Chapter 2: Views of Inspiron 7506 2-in-1 Silver................6 Right....................................... 6 Left......................................6 Base......................................7 Display....................................8 Bottom....................................9 Modes.....................................9 Chapter 3: Using the privacy shutter.................... 11 Chapter 4: Specifications of Inspiron 7506 2-in-1 Silver...............12 Dimensions and weight.............................. -
Page 4: Chapter 1: Set Up Your Inspiron 7506 2-In-1 Silver
2. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates. - Page 5 SupportAssist SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see SupportAssist for Home PCs User's Guide at www.dell.com/...
-
Page 6: Chapter 2: Views Of Inspiron 7506 2-In-1 Silver
Views of Inspiron 7506 2-in-1 Silver Right 1. SD-card slot Reads from and writes to the SD card. The computer supports the following card types: ● Secure Digital (SD) ● Secure Digital High Capacity (SDHC) ● Secure Digital Extended Capacity (SDXC) 2. -
Page 7: Base
Gbps. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging. NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, see the knowledge base article 000124295 at www.dell.com/support. -
Page 8: Display
Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use. 4. Camera-status light Turns on when the camera is in use. 5. Right microphone Provides digital sound input for audio recording and voice calls. Views of Inspiron 7506 2-in-1 Silver... -
Page 9: Bottom
1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker Provides audio output. - Page 10 Tablet Stand Tent Views of Inspiron 7506 2-in-1 Silver...
-
Page 11: Chapter 3: Using The Privacy Shutter
Using the privacy shutter 1. Slide the privacy shutter to the left to access the camera lens. 2. Slide the privacy shutter to the right to cover the camera lens. Using the privacy shutter... -
Page 12: Chapter 4: Specifications Of Inspiron 7506 2-In-1 Silver
Specifications of Inspiron 7506 2-in-1 Silver Dimensions and weight The following table lists the height, width, depth, and weight of your Inspiron 7506 2-in-1 Silver. Table 2. Dimensions and weight Description Values Height: Front height 16.40 mm (0.65 in.) Rear height 17.94 mm (0.71 in.) -
Page 13: Chipset
Chipset The following table lists the details of the chipset supported by your Inspiron 7506 2-in-1 Silver. Table 4. Chipset Description Values Chipset Integrated in the processor Processor Generation Intel Core i5/i7 DRAM bus width 64-bit Flash EPROM 16+8 MB... -
Page 14: External Ports
M.2 cards, see the knowledge base article 000144170 at www.dell.com/support. Wireless module The following table lists the Wireless Local Area Network (WLAN) module supported on your Inspiron 7506 2-in-1 Silver. Table 8. Wireless module specifications Description Values Model number... -
Page 15: Audio
● M.2 2280 PCIe/NVMe solid-state drive + 32 GB Intel Optane Storage ● M.2 2280 PCIe/NVMe Intel Optane Storage The primary drive of your Inspiron 7506 2-in-1 Silver varies with the storage configuration. For computers: ● with a M.2 drive, the M.2 drive is the primary drive ●... -
Page 16: Intel Optane Memory H10 With Solid-State Storage (Optional)
● Windows 10 64-bit version or higher ● Intel Rapid Storage Technology driver version 15.9.1.1018 or higher Media-card reader The following table lists the media cards supported by your Inspiron 7506 2-in-1 Silver. Table 12. Media-card reader specifications Description Values... -
Page 17: Keyboard
Keyboard The following table lists the keyboard specifications of your Inspiron 7506 2-in-1 Silver. Table 13. Keyboard specifications Description Values Keyboard type Backlit keyboard Keyboard layout QWERTY Number of keys ● United States and Canada: 101 keys ● United Kingdom: 102 keys Keyboard size X =18.70 mm key pitch... -
Page 18: Touchpad
For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article 4027871 at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Inspiron 7506 2-in-1 Silver. Table 16. Power adapter specifications Description Values Type... -
Page 19: Battery
Battery The following table lists the battery specifications of your Inspiron 7506 2-in-1 Silver. Table 17. Battery specifications Description Values Battery type 53 Wh, 3-cell "smart" lithium-ion Battery voltage 15.20 VDC Battery weight (maximum) 0.23 kg (0.50 lb) Battery dimensions: Height 5.75 mm (0.22 in.) -
Page 20: Fingerprint Reader
4.20 W Anti-glare vs glossy finish Anti-glare Touch options Fingerprint reader The following table lists the fingerprint-reader specifications of your Inspiron 7506 2-in-1 Silver. NOTE: The fingerprint reader is located on the power button. Table 19. Fingerprint reader specifications Description... -
Page 21: Operating And Storage Environment
Operating and storage environment This table lists the operating and storage specifications of your Inspiron 7506 2-in-1 Silver. Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 21. Computer environment Description Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F) -
Page 22: Chapter 5: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 23 Table 22. List of keyboard shortcuts (continued) Function key Re-defined key (for multi-media Behavior control) Home The Fn key is also used with selected keys on the keyboard to invoke other secondary functions. Table 23. List of keyboard shortcuts Function key Behavior Pause/Break Sleep...
-
Page 24: Chapter 6: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 24. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
