Summary of Contents for Air Knight TT-AK245-V2

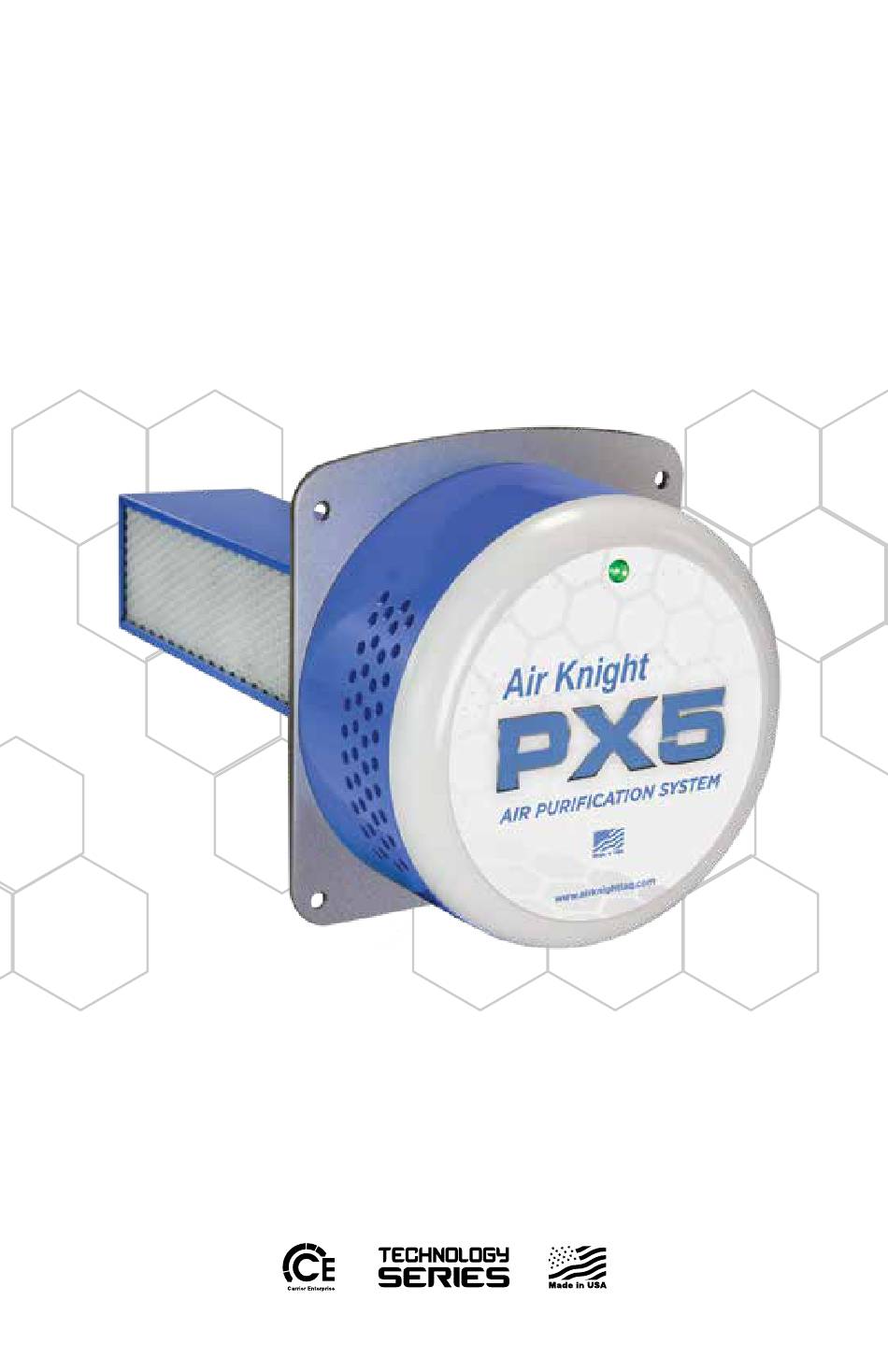

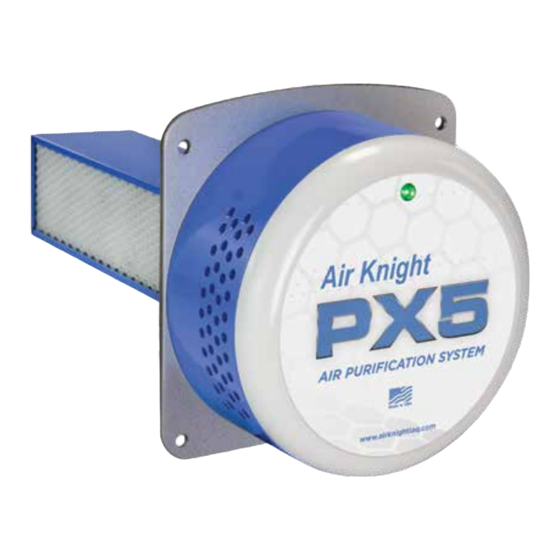

- Page 1 OWNER’S MANUAL AIR KNIGHT ® AIR PURIFICATION SYSTEM TT-AK245-V2 - 5” MODEL TT-AK249-V2 - 9” MODEL...
-
Page 2: Before Installation
BEFORE INSTALLATION • Read all instructions carefully. Failure to do so could damage the equipment or cause harm to yourself or others. • Acknowledge all warnings. • Only qualified technicians should perform the installation. UNIT COMPONENTS UV Lamp Indicator Mounting Plate Replaceable PX5 Core (Includes UV Lamp) Power Module with 24V Auxiliary Input... -
Page 3: Specifications
REPLACEMENT CELL PART # Specifications subject to change without notice. As additional safety support, the Air Knight product-line has received the following universally accepted UL certified listings; UL 1598, UL 1995, UL 867, CSA C22.2 No. 250.0 and CSA C22.2 No. 236. We are not aware of any other manufacturer of in-duct Pro-Active Air Purifiers that has received design validation from UL. -
Page 4: Installation Notes
INSTALLATION NOTES 1. Unit should be installed after the air handler or furnace in the HVAC system, Min. 8" x 8" prior to any branch duct takeoffs. 2. The ductwork around the installation area should be clean and dry to insure proper adhesion of the gasket materials and any tape used. -
Page 5: Metal Ductwork Installation
METAL DUCTWORK INSTALLATION • Locate a suitable area of the duct for installation. Minimum 8" area. If needed, cut away insulation to expose metal duct. • Mark location for 4" opening using the included mounting plate as a template. • Cut opening for the device. •... -
Page 6: Maintenance/Uv Lamp Indicator
Dispose of spent PX5 core and UV lamp at your local recycling center. You may also send your spent PX5 core and UV lamp, in the same container you received your replacement, to: Air Knight Reclamation: 1112 Industrial Drive Royse City, TX 75189 Hg-LAMP CONTAINS MERCURY Manage in accord with disposal laws. - Page 7 CHANGING THE CORE OR UV-C LAMP • Disconnect the device from power. • Removed the knurled nuts securing the device and remove the device from the core. • Remove the screws securing the core. UV-C Lamp • Remove the core from the device and dispose of properly.
-
Page 8: Limited Warranty
Dust Free®, LP (Dust Free) warrants to the original purchaser that the Air Knight® Active Air Purifier (other than the PX5™ core and the UV Lamp) shall be free from defect in material and workmanship under normal use and service, for a period of five (5) years from the date of original purchase.
