- Page 1 OWNER’S MANUAL www.airknightiaq.com...
-
Page 2: Table Of Contents
About Air Knight IPG ........ -
Page 3: Product Contents
PRODUCT CONTENTS INSTALLATION HARDWARE (5) 3/4” #8 Self-Tapping Screws w/ 1/4” Hex Head (5) 3” Threaded Bolts w/Phillips Head (5) Butterfly Toggle Bolt Anchors (6) 18-22 Gauge Wire Screw-On Nuts (2) 1/2” #10 Self-Tapping Screws w/ 5/16” Hex Head (4) 1/2” Brass Knurled Thumb Nuts #8-32 (4) #8 Star Lock Washers REPLACEMENT PARTS 14”... -
Page 4: Specifications

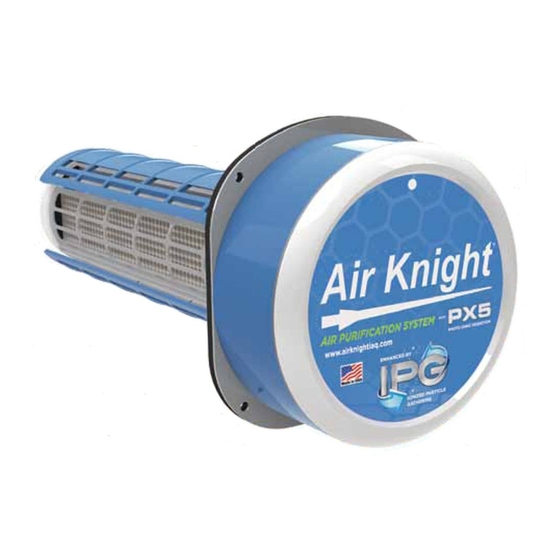

ABOUT AIR KNIGHT IPG ABOUT AIR KNIGHT IPG The Air Knight IPG in-duct air purification system is a new generation HVAC air system designed to reduce odors, smoke, germs, and a broad spectrum of indoor air contaminants. The Air Knight IPG in-duct air purification system is easily mounted into HVAC system air ducts where many air quality problems can start. -
Page 5: Recommended Installation Tools
INSTALLATION (Tools & Requirements) RECOMMENDED INSTALLATION TOOLS • 4” Hole Saw (metal specific recommended) • Drill/Power Driver • Phillips Screwdriver • 3/8” Drill Bit (for fiberglass ductwork) • 1/4” Nut Driver Bit YOU MAY ALSO NEED: • Utility Knife or Duct Knife •... -
Page 6: Metal Ductwork Installation
INSTALLATION (Metal Ductwork) STEP Locate a suitable area of the supply side duct before the first branch for installation, near a power source. Cut away insulation to expose metal duct. (If needed) STEP Using your mounting plate, trace the existing 4” hole for your cell to be placed through. - Page 7 INSTALLATION (Metal Ductwork) STEP Insert your unit into the opening, making sure the air will pass through the core as shown on Page 5. Airflow Orientation Be sure to orient the unit for proper airflow through the IPG core in either horizontal or vertical air flow systems.
-
Page 8: Fiberglass Ductwork Installation
INSTALLATION (Fiberglass Ductwork) STEP Locate a suitable area of the supply side duct before the first branch for installation, near a power source. Using your mounting plate, trace STEP the existing 4” hole for your cell to be placed through. Also, mark the locations of the (5) screw holes along the edges. - Page 9 INSTALLATION (Fiberglass Ductwork) STEP Insert Toggle Bolts into 3/8” holes in duct. Be sure the Toggle Anchors open after inserting. Tighten Toggle Bolts STEP DO NOT OVERTIGHTEN Insert your unit into the opening, STEP making sure the air will pass through the core as shown on Page 5.
-
Page 10: Maintenance/Uv Lamp Indicator
You may also send your spent IPG Core and UV lamp, in the same container you received your replacement, to: Air Knight Reclamation 1112 Industrial Drive Royse City, TX 75189 Hg-LAMP CONTAINS MERCURY. Manage in accordance with disposal laws. -
Page 11: Changing Of Ipg Core
MAINTENANCE CHANGING THE IPG CORE Disconnect power to the unit. STEP Remove the Mounting Nuts. STEP Remove the unit from the STEP Mounting Plate. Remove the (2) Screws from the STEP IPG Core. Separate the used core from the STEP base unit and dispose of property. - Page 12 MAINTENANCE CHANGING THE IPG CORE (Continued) STEP Plug the new IPG Core into the base unit. Secure with (2) Screws and remove STEP the airflow tag from the IPG Core. Insert your unit into the opening, STEP making sure the air will pass through the core as shown on Page 5.
-
Page 13: Limited Warranty
LIMITED WARRANTY Dust Free®, LP (Dust Free) warrants to the original purchaser that the Air Knight IPG (other than the IPG Core and the UV Lamp) shall be free from defect in material and workmanship under normal use and service, for a period of five (5) years from the date of original purchase. Dust Free warrants to the original purchaser that the IPG Core shall be free from defect in material and workmanship under normal use and service, for a period of four (4) years from the date of original purchase. -
Page 14: Notes
NOTES Copyright © 2013 CE... - Page 15 NOTES...
- Page 16 www.airknightiaq.com...
Need help?
Do you have a question about the Air Knight IPG and is the answer not in the manual?
Questions and answers
my IPG is already installed but unplugged in winter and plugged in spring so where do I plug it?
Plug the Air Knight IPG into a 24V power source.
This answer is automatically generated
