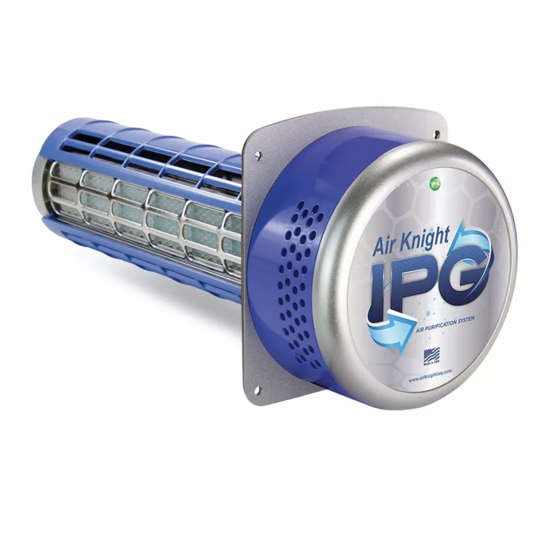

Air Knight IPG TT-AK24IPG-7 Owner's Manual

Air Knight IPG TT-AK24IPG-7 Owner's Manual

7” model, 14” model

Advertisement

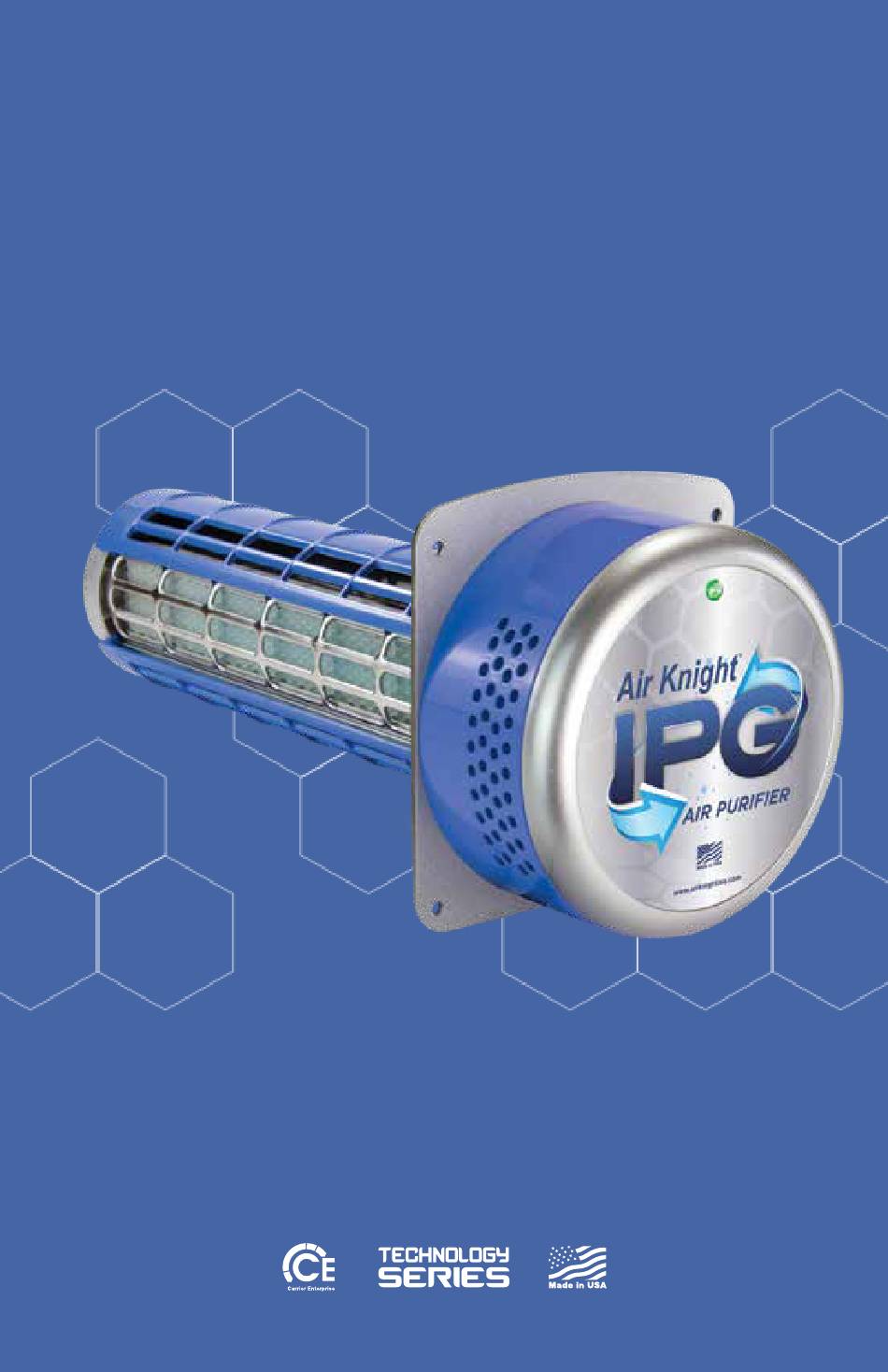

OWNER'S MANUAL
AIR KNIGHT IPG
®
AIR PURIFIER
TT-AK24IPG-7 - 7" MODEL
TT-AK24IPG-14 - 14" MODEL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPG TT-AK24IPG-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Air Knight IPG TT-AK24IPG-7

  • Page 1 OWNER’S MANUAL AIR KNIGHT IPG ® AIR PURIFIER TT-AK24IPG-7 - 7” MODEL TT-AK24IPG-14 - 14” MODEL...
  • Page 2: Before Installation

    BEFORE INSTALLATION • Read all instructions carefully. Failure to do so could damage the equipment or cause harm to yourself or others. • Acknowledge all warnings. • Only qualified technicians should perform the installation. UNIT COMPONENTS Mounting Plate UV Lamp Indicator Replaceable IPG Core (Includes UV bulb) Power Module...
  • Page 3: Specifications

    TT-IPG-CELL-14 Specifications subject to change without notice. As additional safety support, the Air Knight product-line has received the following universally accepted UL certified listings; UL 1598, UL 1995, UL 867, CSA C22.2 No. 250.0 and CSA C22.2 No. 236. We are not aware of any other manufacturer of in-duct Pro-Active Air Purifiers that has received design validation from UL.
  • Page 4: Installation Notes

    INSTALLATION NOTES 1. Unit should be installed after the air handler or furnace in the HVAC system, Min. 8" x 8" prior to any branch duct takeoffs. 2. The ductwork around the installation area should be clean and dry to insure proper adhesion of the gasket materials and any tape used.
  • Page 5: Metal Ductwork Installation

    METAL DUCTWORK INSTALLATION • Locate a suitable area of the duct for installation. Minimum 8" area. If needed, cut away insulation to expose metal duct. • Mark location for 4" opening using the included mounting plate as a template. • Cut opening for the device. •...
  • Page 6: Maintenance/Uv Lamp Indicator

    Dispose of spent IPG core and UV lamp at your local recycling center. You may also send your spent IPG core and UV lamp, in the same container you received your replacement, to: Air Knight Reclamation: 1112 Industrial Drive Royse City, TX 75189 Hg-LAMP CONTAINS MERCURY Manage in accord with disposal laws.
  • Page 7 CHANGING THE CORE OR UV-C LAMP • Disconnect the device from power. • Removed the knurled nuts securing the device and remove the device from the core. • Remove the screws securing the core. • Remove the core from the device and dispose of properly.
  • Page 8: Limited Warranty

    Dust Free®, LP (Dust Free) warrants to the original purchaser that the Air Knight IPG (other than the IPG Core and the UV Lamp) shall be free from defect in material and workmanship under normal use and service, for a period of five (5) years from the date of original purchase.

This manual is also suitable for:

Ipg tt-ak24ipg-14Tt-ak24ipg-7Tt-ak24ipg-14
