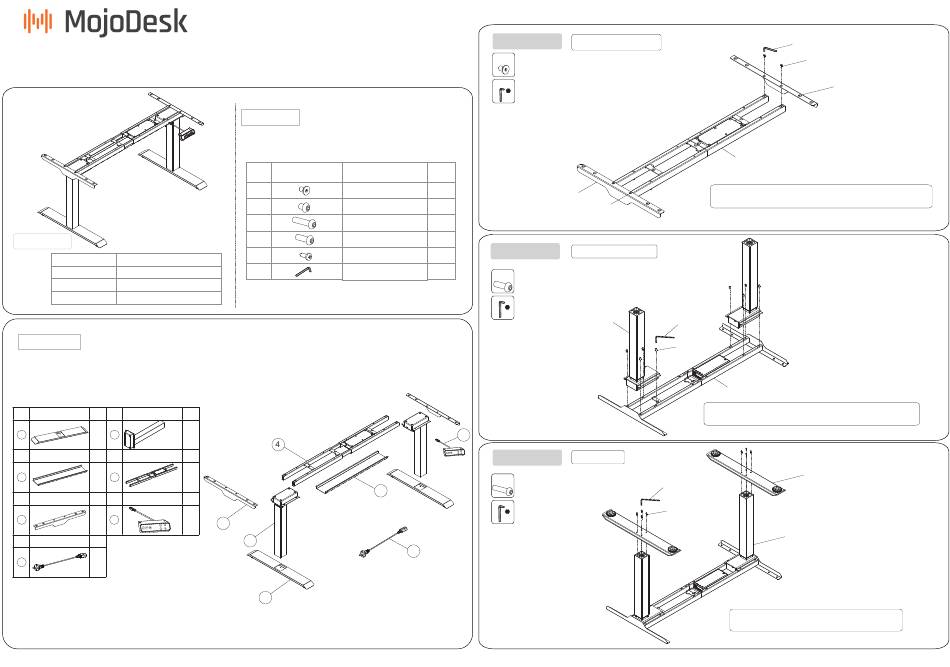

MojoDesk ET223 Assembly Manual

MojoDesk 2020 Assembly Guide
Technical data
3
Column Stage
Max. Weight Capacity 275 lbs
22.8-48.4 inch
Height Range
43.3-74.8 inch
Width Range
Component list
No. Part Qty No. Part Qty
1 2 2 2
Feet Lifting Column
Qty No. Qty
No. Part Part
3 1 4 1
Supporting Beam
Cable Management Tray (Control Box included)
No. Part Qty No. Part Qty
Control Panel
1
5 6
2
Side Bracket
No. Part Qty
7 1
Power Plug
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
No. Image Spec
A
M6
B
M6
C
M6
D
M6
E
St4.2
Allen Key
F
4x4mm
3
5
2
1
STEP 1
Install the Side Brackets
A
x4
F
4x4
Qty
4
5
4
8
12
STEP 2
Install the Lifting Columns
16
1
D
x8
F
4x4
6
STEP 3 Install the Feet
C
x8
F
4x4
7
4
Attach the side brackets(5) to the ends of the supporting beam (4) using
screws(A) as show with the Allen Key(F).
A
2
F
D
4
Insert the lifting columns (2) into the ends of the supporting beam(4).
Fix the lifting columns using screws(D) with the Allen Key(F).
F
C
Place the feet(1) on the bottom of the lifting column(2).
Fix the feet using screws(C) with Allen Key(F).
F
A
5
1
2
