Installation and operating instructions

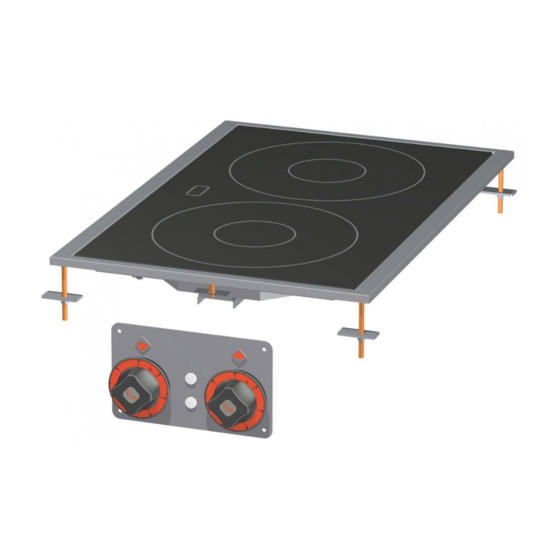

ELECTRIC GLASS CERAMIC
HOBS FOR PROFESSIONAL USE
PCCD-64ETX , PCCD-68ETX
Model LIBR.ISTR.PCCDX
Code 563025000
Review 1
Edition date 22/04/2020
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lotus PCCD-64ETX
Summary of Contents for Lotus PCCD-64ETX
- Page 1 Installation and operating instructions ELECTRIC GLASS CERAMIC HOBS FOR PROFESSIONAL USE PCCD-64ETX , PCCD-68ETX Model LIBR.ISTR.PCCDX Code 563025000 Review 1 Edition date 22/04/2020 Language English LOTUS S.p.A. Via Calmaor, 46 31020 San Vendemiano +39 0438 778020 +39 0438 778277 Translation of the original instructions...
-
Page 2: Table Of Contents
Contents Contents INTRODUCTION ......................... Installation drawing ........................Components..........................GENERAL INFORMATION......................Declaration of compliance......................User information, RAEE Directive on waste electrical and electronic equipment ......Technical data table ........................INSTALLATION........................... Delivery checks ..........................Removing the packaging ......................Mechanical installation ......................... Electrical/gas connections ......................INSTRUCTIONS FOR USE...................... -
Page 3: Introduction
INTRODUCTION 1 INTRODUCTION Installation drawing FIG. 1 PCCD..64..68E MODEL A (mm) PCCD-64ETX PCCD-68ETX B Electrical connection Translation of the original instructions... -
Page 4: Components
INTRODUCTION Components FIG. A Radiant heating elements for glass-ceramic appliances Translation of the original instructions... - Page 5 INTRODUCTION WIRING DIAGRAM (F) 1 Switch 2 Power supply terminal board 3 Radiant resistance 4 Power regulator 5 Relay board 6 White indicator light 7 Residual heat indicator light 8 Transformer Translation of the original instructions...
- Page 6 INTRODUCTION WIRING DIAGRAM (G) 1 Switch 2 Power supply terminal board 3 Radiant resistance 4 Power regulator 5 Relay board 6 White indicator light 7 Residual heat indicator light 8 Transformer Translation of the original instructions...
- Page 7 INTRODUCTION PREDISPOSITION 440V~3 (K) Electrical technical data table MODEL WIRING DIAGRAMS PCCD-64ETX F + K PCCD-68ETX G + K Translation of the original instructions...
-
Page 8: General Information
GENERAL INFORMATION 2 GENERAL INFORMATION Declaration of compliance The manufacturer declares that the appliances comply with the requirements of the regulation GAR 2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be performed in compliance with current regulations, especially with regard to ventilation of the premises and the exhaust gas evacuation system. -
Page 9: User Information, Raee Directive On Waste Electrical And Electronic Equipment
Technical data table Electrical technical data table PCCDX MAXIMUM POWER Silicon POWER MODEL POWER SUPPLY MAXIMUM INPUT (A) (kW) SUPPLY CABLE PCCD-64ETX 400V~3 50/60 Hz 10,83 4 x 2,5 mm² PCCD-68ETX 400V~3 50/60 Hz 16,54 4 x 2,5 mm² ... -
Page 10: Installation
INSTALLATION 3 INSTALLATION Delivery checks On delivery, it is important to check the following: · External conditions of the packaging · The general status of the equipment · The conformity of the model with the information in the technical data plate and the instruction manual ·... - Page 11 INSTALLATION Note The ID plate is located in the compartment inside the door for appliances with compartments, or on the left side for appliances with an oven or a top. A second plate with the model and serial number is located inside the dashboard and a third is included with the certificate of conformity.
- Page 12 INSTALLATION Note The connection cable must have the following characteristics: it must be silicone type (to withstand temperatures of 180 °C), and must have an appropriate cross-section for the power of the appliance (see technical data table). EQUIPOTENTIAL ...
-
Page 13: Instructions For Use
INSTRUCTIONS FOR USE 4 INSTRUCTIONS FOR USE General information This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other use is considered improper. The appliance is also intended for industrial use and must only be used by personnel trained for use and aware of the risks that the hot element entails. - Page 14 INSTRUCTIONS FOR USE Warning When the glass surface heats up, the luminous residual heat indicator turns on that corresponds to the plate in use. This indicator remains on as long as the glass is hot, even if the plate is off, to prevent the risk of burns Note ·...
-
Page 15: Maintenance
MAINTENANCE 5 MAINTENANCE Routine When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation. We therefore recommend stipulating a service contract. Caution Maintenance must only be performed by specialist personnel in compliance with current ... -
Page 16: Spare Parts
MAINTENANCE Spare parts It is possible to replace parts such as the valve, the piezoelectric or the ignition control unit (depending on the type of appliance) or the gas pipes easily and quickly. To replace such parts, proceed as follows: ... -
Page 17: Cleaning
CLEANING 6 CLEANING Routine cleaning Caution The use of flammable fluids to clean the appliance is forbidden To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the appliance from the power supply. -
Page 18: Maintenance Suggestions
CLEANING SCHOTT CERAN® HOB This is an original SCHOTT product, the largest international glass ceramic manufactuer and consequently an assurance of the highest quality and durability. To ensure that your hob retains all its good looks over time, we are pleased to provide some important maintenance suggestions. ... -
Page 19: How To Achieve A Brilliant Result In Three Simple Steps
CLEANING How to achieve a brilliant result in three simple steps: To ensure thorough cleaning, first remove the worst encrustations and food remains using a special cleaning spatula or a special sponge for glass ceramic hobs. Then pour a few drops of a specific detergent on to the cold SCHOTT CERAN® hob and wipe with kitchen paper or a clean cloth. -
Page 20: How To Your Schott Ceran® Hob Bright And Shining For A Long Time
CLEANING How to your SCHOTT CERAN® hob bright and shining for a long time · The dimensions of the cooking pots must always be suitable for those of the cooking area · Use cooking pots with smooth bases to avoid damaging the surface ·...
