Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
MPTL96DD
1
Rev. 01/10/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Matco Tools MPTL96DD
Summary of Contents for Matco Tools MPTL96DD
- Page 1 Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. MPTL96DD Rev. 01/10/05...
-
Page 2: General Operational Precautions
Return tool to Tri-County Power Tool, Inc. when the battery charger manufacturer may result in a repair is required. Incorrect reassembling may risk of fire, electric shock, or injury to persons. result in a risk of electric shock or fire. MPTL96DD Rev. 01/10/05... - Page 3 MPTL96DD 3/8" 9.6v Drill and Driver with LED Light ADDITIONAL SAFETY RULES FOR CHARGER AND BATTERY CARTRIDGE Do not charge battery cartridge when temperature Do not store the machine and battery cartridge is below 10˚C (50˚F) or above 40˚C (104˚F).
-
Page 4: Charging The Battery

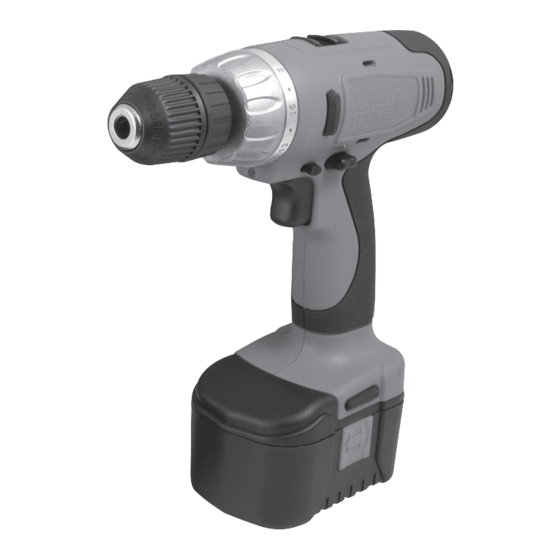

MPTL96DD 3/8" 9.6v Drill and Driver with LED Light How to Remove/Insert the Battery • Push the release buttons on both sides of the battery pack and slide forward toward the chuck to remove the battery from the unit. • To reinstall the battery, slide the battery into the unit until the battery is fully engaged. -
Page 5: Operating The Tool
MPTL96DD 3/8" 9.6v Drill and Driver with LED Light Operating the Tool Select the applied torque from the adjustment ring. Select the speed by pushing There are 17 positions available. the High/Low Speed Regulator High Speed Low Speed (For Drill) -
Page 6: Maintenance
MPTL96DD 3/8" 9.6v Drill and Driver with LED Light How to Replace the Chuck 1. Hold “A” ring firmly and turn “B” ring counterclockwise until the chuck is fully open. 2. Release the left-hand screw inside the chuck. Left-hand screw... - Page 7 MPTL96DD 3/8" 9.6v Drill and Driver with LED Light PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. RS14401-1 SCREW FOR 3/8" CHUCK RS14412 MAIN HOUSING — L & R RS19602 KEYLESS CHUCK — 3/8" RS19613 BATTERY CONNECTOR RS19603 GEAR BOX (1/2"SHAFT)
- Page 8 Model# MPTL96DD Limited Warranty Matco warrants this tool for a period of 1 year from original purchase. We will repair any MPTL96DD covered under this warranty which proves to be defective in material or workmanship during the warranty period. In order to have your tool repaired, return the tool to Tri-County Power Tool, Inc. at the address listed below, freight prepaid.
