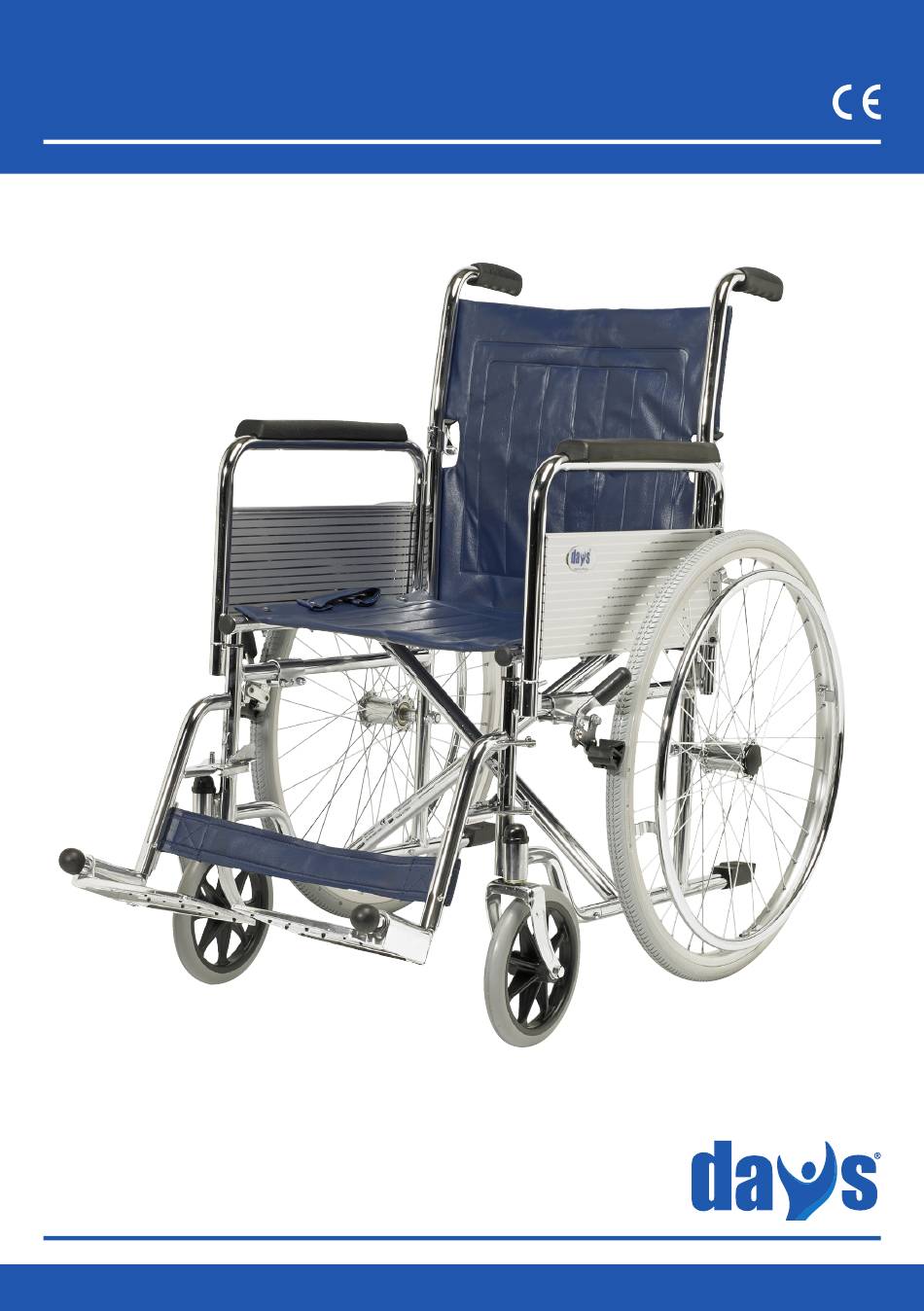

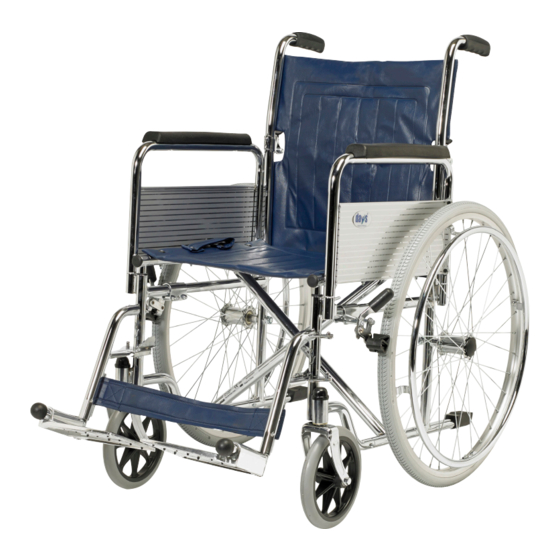

- Page 1 Days Chrome Plated Steel Wheelchair Owner’s Manual...
-
Page 2: Table Of Contents
Maintenance Inspection ................9 Cleaning .....................9 Technical Specifications ................10 Warranty Information ................11 Limitation of Liability ................11 Product codes covered by these instructions 09 146 3090 09 143 9116 23823 09 146 3108 09 143 9397 23823N 09 143 9330... -
Page 3: Introduction
Introduction Welcome to the Days Chrome Plated Steel wheelchair and thank you for choosing our product. This latest model has been designed with specific practical user needs in mind. It combines solid, rugged construction, safety and performance. We are confident that it will prove a reliable companion in your home as well as outdoors. -
Page 4: Feature Guide
Feature Guide Attendant Propelled Fixed/Fold Down Back Armrest Manual Brake Footrest Transit Wheel Footplate Front Castor Self-propelled Fixed/Fold Down Back Armrest Handrim Footrest Self-propelled Wheel Footplate Front Castor... -
Page 5: Safety Guidelines
Safety Guidelines Do not exceed the following weight limits: • Standard range: 115 kg (18 stone), Heavy Duty: 140kg (22 stone). Do not use on the road, except when crossing between pavements. • When crossing the carriageway of a public road always take extra care and observe the •... -
Page 6: Adjustment Procedures
Adjustment Procedures Swing-away Footrest Length Adjustment Adjustments are made with the user sitting in the wheelchair with feet on footplates. 1) Use a spanner to loosen the bolt at the rear of the footrest support hanger. 2) Adjust the footplate up or down as needed to provide maximum support of thighs on the seat upholstery, then re-tighten the bolt. -
Page 7: Folding The Chair
Folding and Unfolding the Chair Remove the seat cushion. The wheelchair is folded by grasping the seat canvas at the front centre with one hand and at the rear with the other. A simple lifting action will draw both sides of the chair together into the folded position. -
Page 8: Slopes & Gradients
Slopes and Gradients Do not attempt to climb or descend beyond your limitations to avoid tipping over. Climbing Upwards Lean the upper body forward and move the wheelchair forwards with short quick pushes on the Handrims. Downward Travel DO NOT Lean backwards in the chair and let the handrim slide gently through your hands to control downward speed and direction. -
Page 9: Transportation
Transportation We recommend that you do not sit on your Wheelchair when in a vehicle, but transfer to a vehicle seat. A Wheelchair secured in a vehicle will not provide the equivalent safety level and security as the vehicle’s seating systems. However, when transfer is not practical or impossible, ensure the following: 1. -
Page 10: Technical Specifications
Technical Specifications Self-Propelled Attendant Seat Width 46cm (18˝) 46cm (18˝) Seat Depth 41cm (16˝) 41cm (16˝) Seat Height (Front) 51cm (20˝) 51cm (20˝) Seat Height (Rear) 47cm (18½˝) 47cm (18½˝) Backrest Height Above Seat 41cm (16˝) 41cm (16˝) Footrest Length 38 - 53cm (15 - 21˝) 38 - 53cm (15 - 21˝) Armrest Height Above Seat... -
Page 11: Warranty Information
Warranty Information Days Chrome Plated Steel wheelchairs are warranted for 12 months from the date of purchase on frame and crossbars. • During the warranty period any parts that have become defective due to faulty workmanship or material will be repaired or replaced without charge by a Days supplier/dealer •... - Page 12 Tel: 1300 473 422 International: Fax: 1300 766 473 Tel: +44 1623 448 706 www.performhealth.com.au Fax: +44 1623 448 784 Days is a registered trademark of Performance Health International Ltd. ® 71535 Is2 © Copyright Performance Health International Ltd. 2019...
