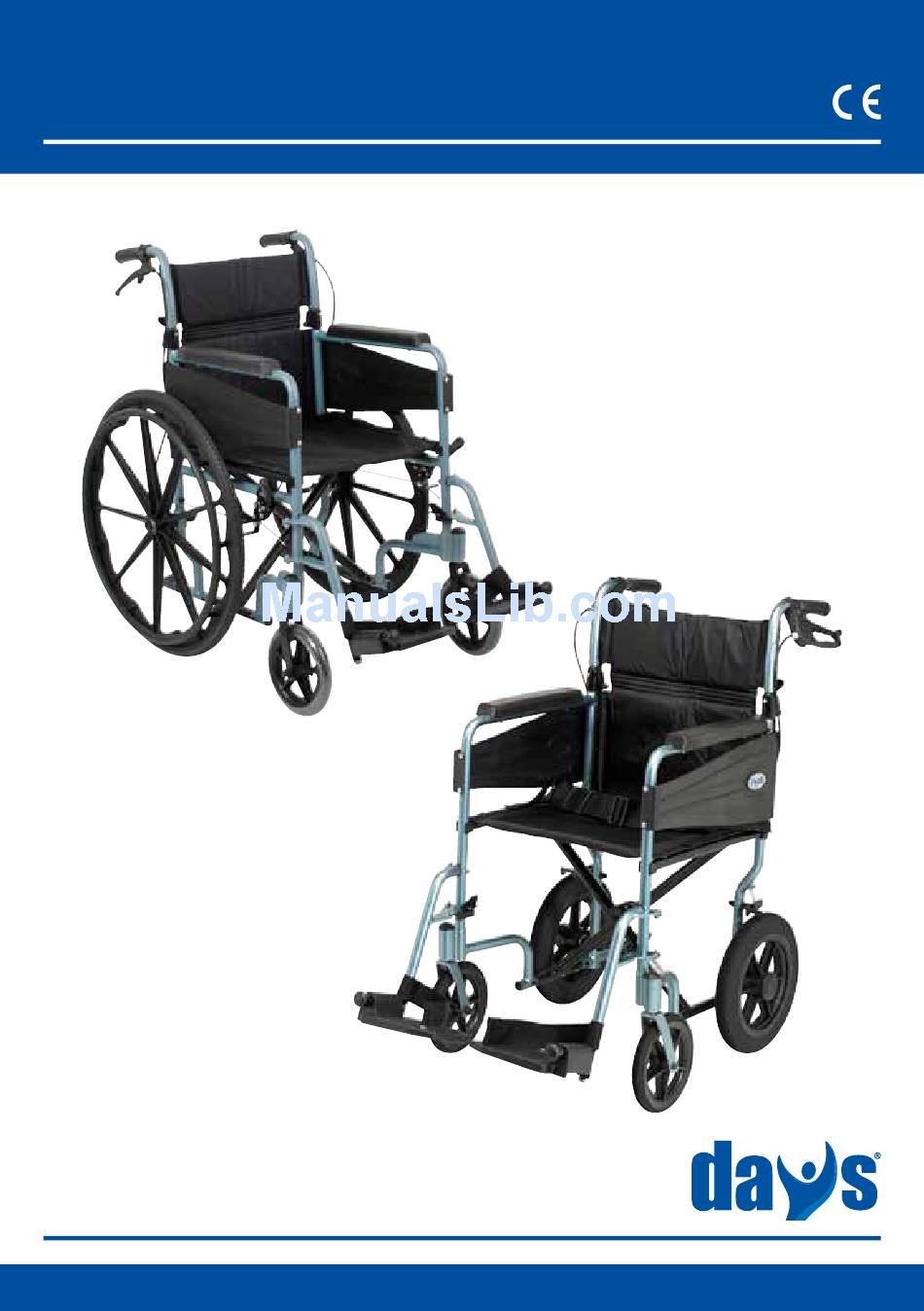

- Page 1 Days Escape Lite Wheelchair Owner’s Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Intended Use .....................3 Technical Description ................3 Feature Guide ....................4 Safety Guidelines ..................5 Safe Operation ...................5 Adjustment Procedures ................6 Footrest Adjustments ................6 Heel and Calf Straps ................6 Seat Belt ....................6 Operations of Use ..................6 Footrests ....................6 Brakes ....................6 Folding Back ..................6 Folding the Chair ..................7... -
Page 3: Introduction
The Days Escape Lite wheelchairs have been tested to Australian Standards and is registered with the Australian Register of Therapeutic Goods ARTG 200209. The Days Escape Lite is not fitted with approved tie-down anchorage points and is not intended for use as a seat in motor vehicles (Not AS/NZS 3696.19 compliant). -
Page 4: Feature Guide

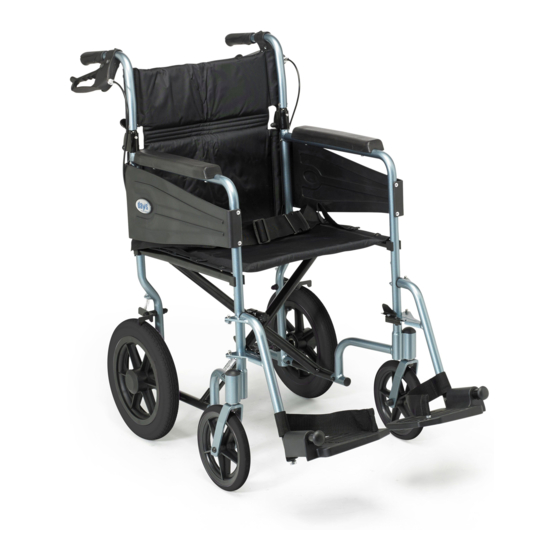

Feature Guide Attendant Propelled Brake Lever Armrest Folding Back Brake Cable Brake Footrest Transit Wheel Footplate Front Castor Self Propelled Brake Lever Folding Back Armrest Self-Propelled Wheel Manual Brake Footrest Hand Rim Footplate Front Castor... -
Page 5: Safety Guidelines
Safety Guidelines • Do not exceed the stated maximum user weights • Do not use on the road, except when crossing between pavements. When crossing the carriageway of a public road always take extra care and observe the Highway code •... -
Page 6: Adjustment Procedures
Adjustment Procedures Swing-away Footrest Length Adjustment Adjustments are made with the user sitting in the wheelchair with feet on footplates. 1. Use a spanner to loosen the bolt at the underside of the footrest support hanger. 2. Adjust the footplate up or down as needed to provide maximum support of thighs on the seat upholstery, then re-tighten the bolt. -
Page 7: Folding The Chair
Folding the Chair The wheelchair is folded by grasping the seat canvas at the front centre with one hand and at the rear with the other. A simple lifting action will draw both sides of the chair together into the folded position. Unfolding the Chair When both wheels have been secured, grasp PUSH... -
Page 8: Wheelchair Assistance
Wheelchair Assistance Practical Use Many activities require the wheelchair owner to reach, bend and transfer in and out of the wheelchair. These movements will cause a change to the normal balance, the centre of gravity and weight distribution of the wheelchair. To determine and establish your particular safety limits, activities involving reaching, bending and transferring should first be practised with a qualified health care professional. -
Page 9: Transportation
Fitting Rear Wheels (Self-propelled Models) The Days Escape Lite wheelchair self-propelled is fitted with quick release rear wheels. It is important to ensure that wheels are correctly fitted to avoid accidents. To fit rear wheels depress rubber cover at the centre of the wheel hub and push the wheel spindle firmly into the axle bush, ensuring that both ball bearings are fully exposed beyond the axle bush. -
Page 10: Warranty
Warranty Information Days Escape Lite wheelchairs are warranted for 12 months from the date of purchase on frame and crossbars. • During the warranty period any parts that have become defective due to faulty workmanship or material will be repaired or replaced without charge by a Days supplier/dealer •... -
Page 11: Technical Specifications
Technical Specifications – Escape Lite Wheelchair Propulsion Attendant Self-Propelled Seat Parameters Seat Height - Front (from the ground) 510+/-5mm 510+/-5mm Seat Height - Rear (from the ground) 490+/-5mm 490+/-5mm Seat Width <on the outside of the tubes> 460mm 460mm Seat Depth... - Page 12 Your Authorised Dealer These user instructions are available in large print, please contact Performance Health Customer Services for a copy. Please retain these instructions for future reference. Manufactured for Performance Health Supply, Inc. Performance Health France Performance Health International Ltd. 28100 Torch Parkway Suite 700, Zone Industrielle de Montjoly, Nunn Brook Road, Huthwaite,...
Need help?
Do you have a question about the Escape Lite and is the answer not in the manual?
Questions and answers
what is the folded up measurement of the Days Escape Lite Wheelchair to fit into the boot of a car
The folded width of the Days Escape Lite Wheelchair is 23 cm (9″), and the height is 91 cm (36″).
