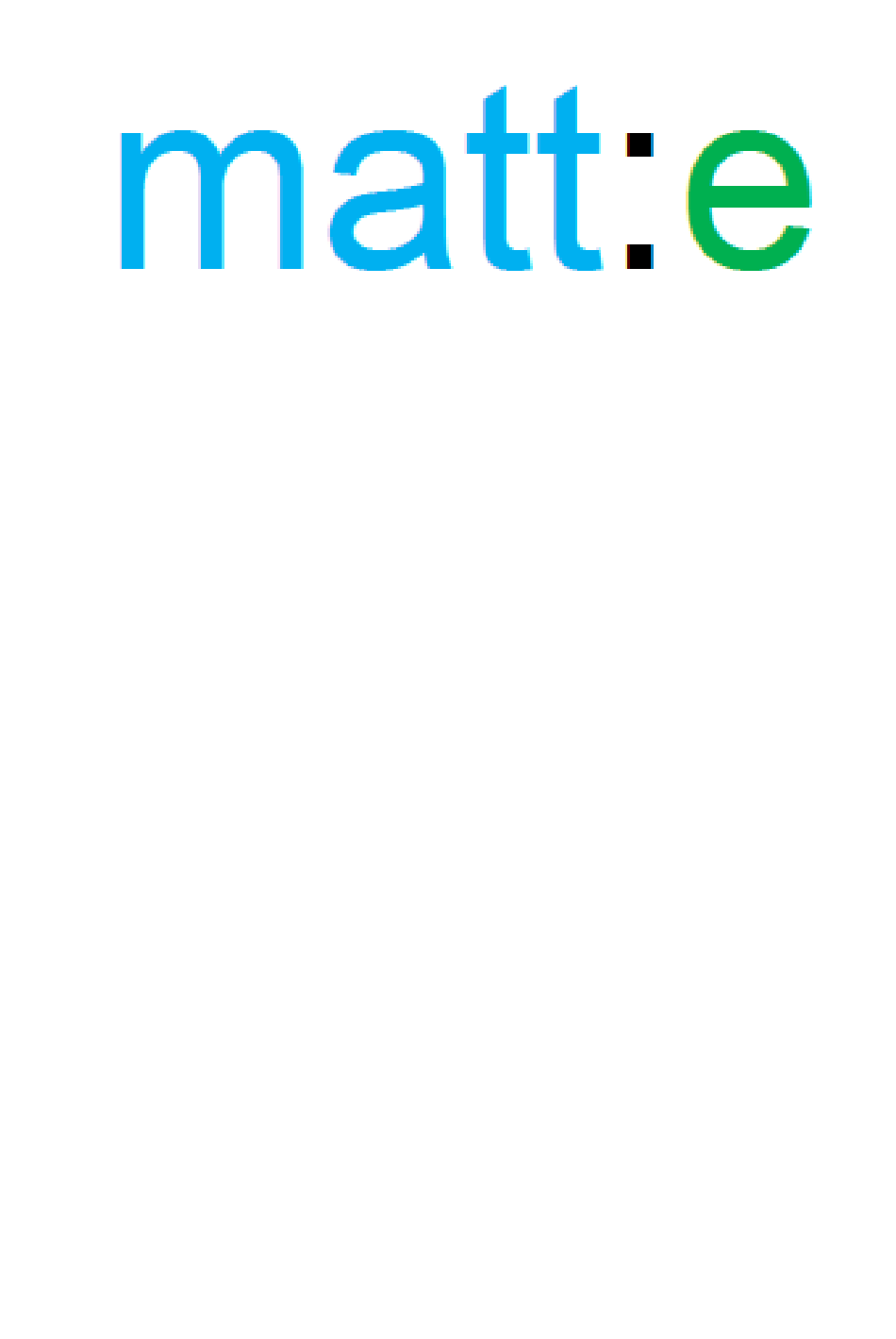

- Page 1 Domestic Voltage Optimisation Unit Installation Manual V2.3 Oct 2014...
- Page 2 This product must be installed by a competent person in accordance with the IEE Wiring Regulations, BS7671 (17 Edition or later) and current Building Regulations. Ensure the electrical supply is disconnected before installation or removing the cover of the B60 unit. P a g e...
-
Page 3: Table Of Contents
B60 Voltage Optimisation Unit Contents Product Description Warning Notice Safety Advice Introduction Installation Typical Installations Dimensions & Mounting the unit Electrical Connections Specifications P a g e... -
Page 4: Product Description

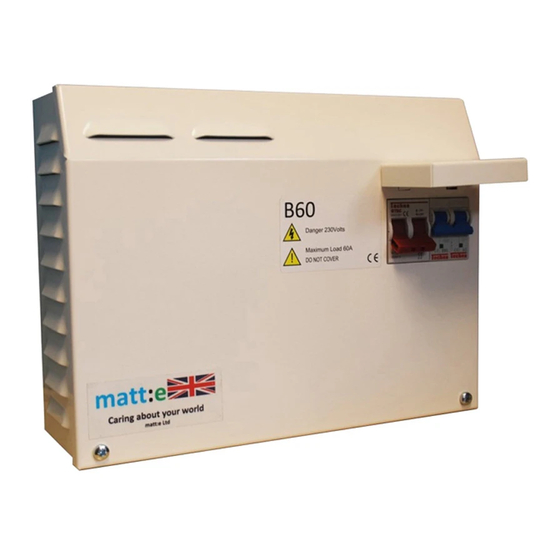

The unit must be installed in a dry ventilated location, it must never be covered or have restricted ventilation. matt:e B60 voltage optimisation unit is rated for a maximum 14kW load. For any information not contained within this document, please contact our technical support team on 01782 473002. -
Page 5: Introduction
B60 has short circuit, overload and thermal protection built in. Rated at 14kW, the unit is suitable for the majority of domestic and light commercial / retail installations. -
Page 6: Typical Installations
B60 Voltage Optimisation Unit Typical Installation Suppliers Grid Power Fuses VO Power Suppliers Meter Suppliers Isolator Made in Britain Danger 230Volts Maximum Load 60A Caring about your world Made in Britain Distribution Board matt:e B60 VO unit P a g e... -
Page 7: Dimensions & Mounting The Unit
B60 Voltage Optimisation Unit Mounting the unit The unit is designed to be installed between the main electricity meter and consumer unit in the most practical and accessible position available. The installation location should be clean, dry and well ventilated. - Page 8 B60 Voltage Optimisation Unit Fixing Dimensions P a g e...
-
Page 9: Electrical Connections
B60 Voltage Optimisation Unit Electrical Connections The unit is supplied with a 63 Amp miniature circuit breaker that provides overload and short circuit protection for the unit. The transformer is fitted with an embedded thermal switch. Should the temperature of the transformer increase beyond acceptable levels the thermal switch will operate and automatically shut off the supply to the transformer by ‘tripping’... - Page 10 B60 Voltage Optimisation Unit Typical Retrofit with PV Suppliers Meter Suppliers Inverter Isolator Henley Isolator Type Blocks matt:e B60 (V2) Voltage Optimiser Consumer Unit 10 | P a g e...
-
Page 11: Specifications
V2.3 Oct 2014 Warranty The B60 Domestic Voltage Optimisation Unit is guaranteed for a period of 12 months from the date of purchase. To extend this warranty to 5 years record the serial number of the unit on the enclosed Warranty Card and return it with proof of purchase to the address given on the Warranty Card.
