- Page 1 Electric Vehicle Charger Protection Units SP-EVCP-T SP-EVCP-R Installation Manual V1.0 Oct 2019...
-
Page 2: Table Of Contents
Single Phase EV Charger Protection unit Contents Product Description Warning Notice Safety Advice Introduction Dimensions & Mounting the unit Electrical Connections Operating Instructions Specifications Warranty Declaration of Conformity PRODUCT ADVISORY NOTICE This product must be installed by a competent person in accordance with the IEE Wiring Regulations, BS7671 (18 Edition or later) and current Building Regulations. -
Page 3: Product Description
The unit must be installed in a dry ventilated location; it must never be covered or have restricted ventilation. The SP-EVCP-R and SP-EVCP-T units are rated for a maximum 32A. For any information not contained within this document, please contact our technical support team on 01543 227290 or info@matt-e.co.uk. -
Page 4: Introduction

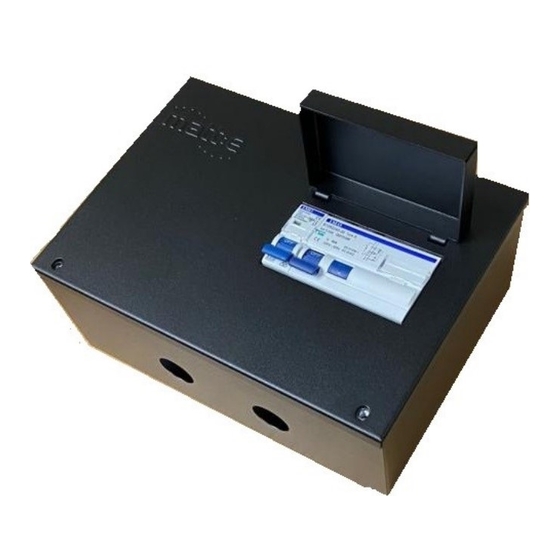

Single Phase EV Charger Protection unit Introduction matt:e of range Single Phase Electric Vehicle Charger Protection units are designed to protect Electric Vehicle Charging equipment when installed onto single phase PME infrastructures . All units incorporate an electronic detection circuit and 3 pole contactor. The R version has a Type A RCBO on the incoming side of the unit. -
Page 5: Dimensions & Mounting The Unit
Single Phase EV Charger Protection unit Please refer to the diagram below for the dimensions and mounting arrangements of the unit. P a g e... -
Page 6: Electrical Connections
Single Phase EV Charger Protection unit Electrical Connections The user wiring connections are indicated in the diagrams below. P a g e... - Page 7 Single Phase EV Charger Protection unit Connect the incoming cable from the distribution board directly to either the terminals (-T version) or the RCBO (-R version). Connect the outgoing cable to the contactor. P a g e...
-
Page 8: Operating Instructions
Single Phase EV Charger Protection unit THIS PRODUCT IS DESIGNED FOR AN ISOLATED EARTHING ARRANGEMENT. CHECK BEFORE USING SWA CABLE On completion of installation the tightness of all electrical connections should be checked before energising the unit. See specifications for tightening torques. Operating Instructions With the supply switched on the unit will monitor the incoming supply voltage. -
Page 9: Specifications
The SP-EVCP units are guaranteed for a period of 2 years from the date of manufacture. This warranty is limited to the replacement of faulty components only. t: 01543 227290 e: info@matt-e.co.uk w: www.matt-e.co.uk matt:e Ltd, Unit 5, Common Barn Farm, Tamworth Road, Lichfield WS14 9PX P a g e... -
Page 10: Declaration Of Conformity
The following harmonised standards and technical specifications have been applied: EN61439-2 2011 Low-voltage switchgear and controlgear assemblies. EN60947-3 Low-voltage switchgear and controlgear EN61009-1 Residual current operated circuit-breakers with integral overcurrent Signed for and on behalf of: matt:e Ltd Place of issue Date J Charlton, Director Lichfield, England...
