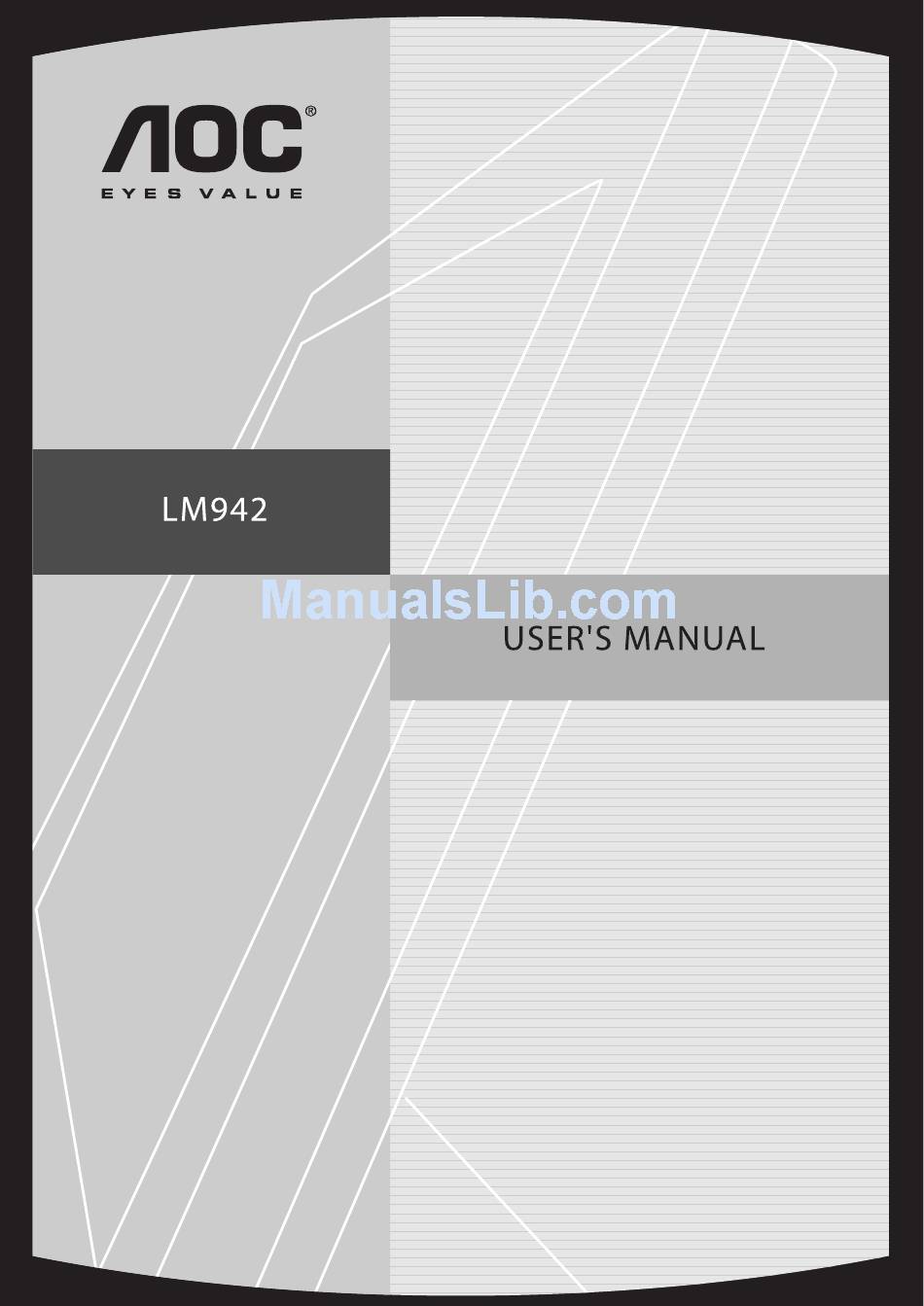

Summary of Contents for AOC LM942
- Page 2 Page1-2 stands for TCO’99 model only. Please see back label for model distinction. Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 3 Swedish Confederation Naturskyddsforeningen (The Swedish Society for Nature Conservation), and by Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety. The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things.
-
Page 4: Environmental Requirements
Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. - Page 5 CFCs (freons) The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g.
-
Page 6: Operation Instructions
Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 7: Table Of Contents
Content Safety Precautions...1 First Setup ...2 Quick Installation...2 Rear View of the Product ...3 Using On Screen Display (OSD) Functions ...4 Supporting Timing Modes ...7 Technical Information...8 Care and Maintenance...9 Troubleshooting ...9... -
Page 8: Safety Precautions
Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. -
Page 9: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories : Power cable. User guide book. Quick Installation 1. Connect video cable (D-Sub cable) Make sure both monitor and computer are powered OFF. Connect the video cable ( D-Sub cable) to the computer. -
Page 10: Rear View Of The Product
Front View of the Product ➊ OSD TURN ON/OFF ➋ SCROLL DOWN/DECREASE ➌ SCROLL UP/INCREASE Rear View of the Product ➐ ➐ POWER INPUT ➑ VGA CABLE (D-SUB 15 PIN) ➊ ➋ ➌ ➍ ➎ ➏ ➍ CONFIRM SELECTION ➎ POWER ON/OFF ➏... -
Page 11: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when not in main menu. Confirm the selection. Select the desired item when in OSD menu. When not in OSD menu, it is to immediately activate Contrast/ Brightness. - Page 12 Short Cuts Function from the button(s) Auto Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen. Contrast : To adjust the foreground white level of screen image. : increase contrast, Brightness : To adjust the luminance of the video.
- Page 13 Sharpness : To adjust the clarity of a non-SXGA (1280x1024) signal with button. Setup Menu : To set up Language Select, Resolution Notice, OSD Position, and OSD Time Out. Language Select : To allow users to choose from available languages. Resolution Notice : Resolution Notice is to remind you set the best quality for the image.
-
Page 14: Supporting Timing Modes
Supporting Timing Modes VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz... -
Page 15: Technical Information
Technical Information Technical Specification LCD Panel 19.0” TFT Power Management Energy Star compliant VESA DPMS compatible < 1 W Displayable Resolution SXGA 1280 x 1024 max. Vertical Frequency 75Hz max. Pixel Dimension 0.294 x 0.294 mm LCD Display Color 16.2M (6 bits + FRC/ color) Viewing Angle 140/130, CR >... -
Page 16: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. Make certain your monitor is installed in a clean and moisture-free area. - Page 17 Wrong or abnormal colors If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection. Connect the monitor to another computer. According to WEEE regulation , this monitor can't be handled as normal trash in Europe when it is out of usage.
