Table of Contents

S-21780, S-21781
DIGI-DAY
ELECTRONIC SCOREBOARD
®
DIGITAL DISPLAY
Power Loss Indicator
Segment ID
POWER LOSS INDICATOR
In the event of power loss, display will go dark, yet hold
in memory the number of days and time. When power
is restored, there will be an LED indicator and display
will resume normal operations. Time will shift back by
amount power was off. To reset time of day and remove
power loss indicator, follow procedure in step 3.
STEP 1
CONNECT REMOTE TO THE DIGITAL DISPLAY
Your remote has the capability to connect to five
different digital displays.
• Press and hold CONNECT button (also labeled "1-5")
for approximately 3 seconds. The display(s) will flash
the frequency number across all digits.
• Press the same number on the remote of the display
you want to connect. The display will flash that number
in segment 4, four times and resume normal operation
(other displays will also return to normal operation).
• Your remote control is now connected to the
selected digital display.
PAGE 1 OF 9

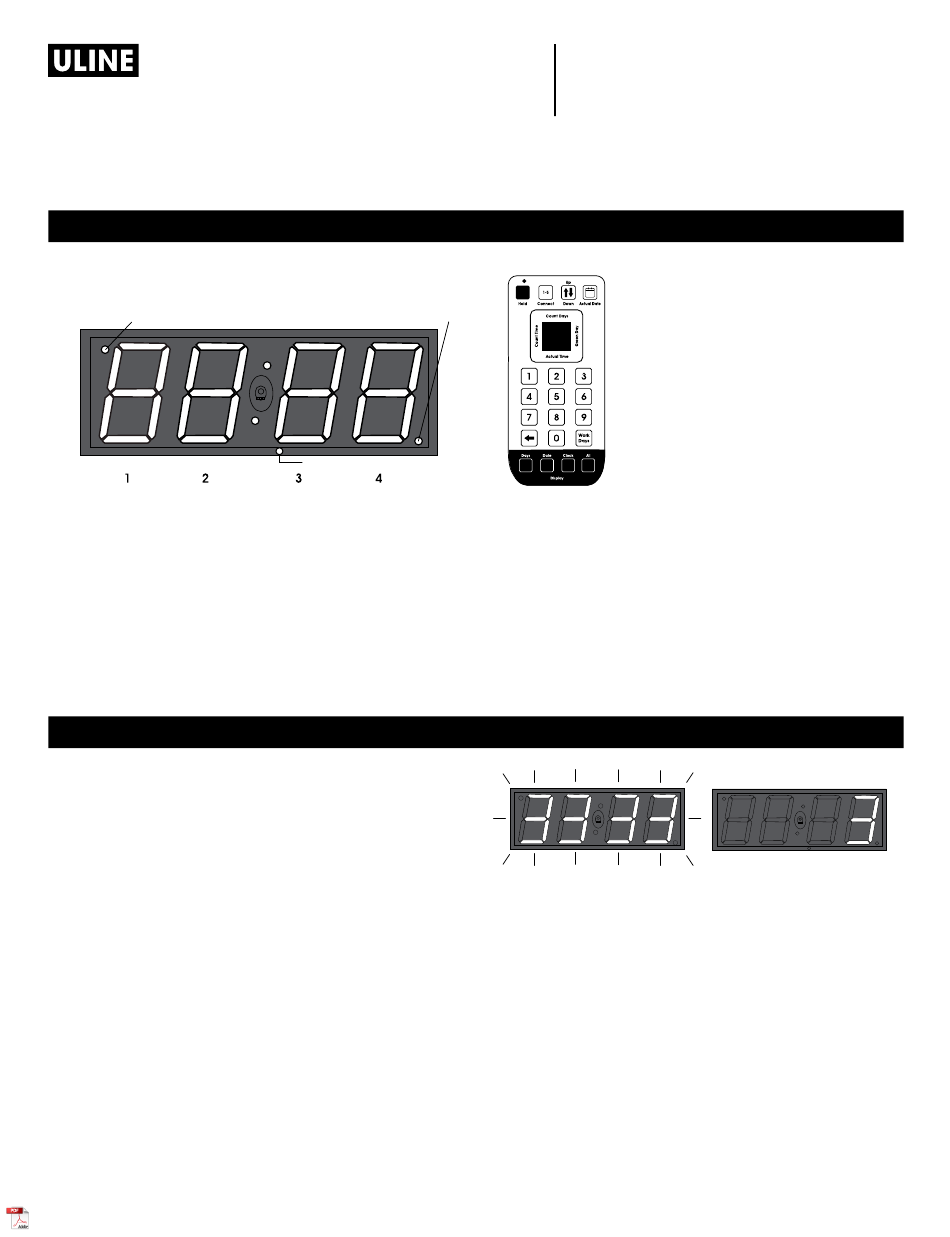

OVERVIEW OF CONTROLS
Counter Indicator on Hold
AM (Green) / PM (Red) Indicator
OPERATION
Pour le français, consulter les pages 7-9.
1-800-295-5510
uline.com
REMOTE CONTROL
All digital display functions require
use of remote control.
The remote control is programmed to
control up to five different encoded
digital displays. Whether the
scoreboard has one or five displays,
each can be controlled individually
by following the "Connect Remote to
the Digital Display" steps.
COUNTER INDICATOR ON HOLD
To pause number of days, press red HOLD button. There
will be an LED indicator on the lower right, and the
count will hold or freeze. To resume function, press the
HOLD button. LED indicator will turn off.
STEP 2
VERIFY COUNT UP FUNCTION
The scoreboard has the ability to either count up or down.
• Press UP/DOWN button once to verify correct mode.
In display segment 1, the horizontal bar will be at top
for Count Up mode or at bottom for Count Down mode.
• To change the Up/Down mode, press UP/DOWN button.
• After verifying, press ENTER button.
Para Español, vea páginas 4-6.
0621 IS-21780
