U-Line H-9501 Quick Start Manual

H-9501

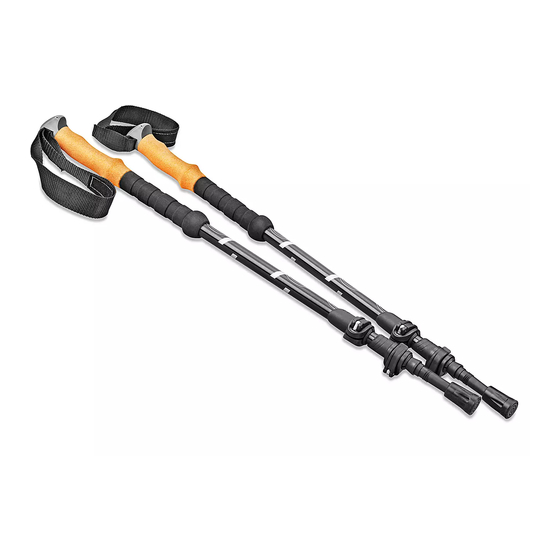

TREKKING POLES

USING AND ADJUSTING LOCK MECHANISM

1. Open quick locks fully, until lever stops. Adjust poles
to desired height. Extend the middle and lower
sections evenly. (See Figure 1)
Figure 1
2. Turn thumb screws 1/4 – 1/2 turn clockwise to tighten.
(See Figure 2)
Figure 2
PAGE 1 OF 6
1-800-295-5510
uline.com

INSTRUCTIONS

3. Close the quick locks. (See Figure 3)
NOTE: If tightened correctly, the locks should
require firm pressure to close.
Figure 3
4. Test the locks by applying downward pressure on
the poles. If the sections collapse or slip, repeat the
previous steps. (See Figure 4)
Figure 4
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
0421 IH-9501
