Device manual
PKV 30-DPS
Protocol converter for PROFIBUS-DP slave
Hilscher Gesellschaft für Systemautomation mbH
Rheinstraße 78
D-65795 Hattersheim
Germany
Tel. +49 (0) 6190/9907-0
Fax. +49 (0) 6190/9907-50
Sales: +49 (0) 6190/9907-0
Hotline and Support: +49 (0) 6190/9907-99
e-mail: hilscher@hilscher.com
Homepage: http://www.hilscher.com
Advertisement
Table of Contents
Related Manuals for hilscher PKV 30-DPS
Summary of Contents for hilscher PKV 30-DPS

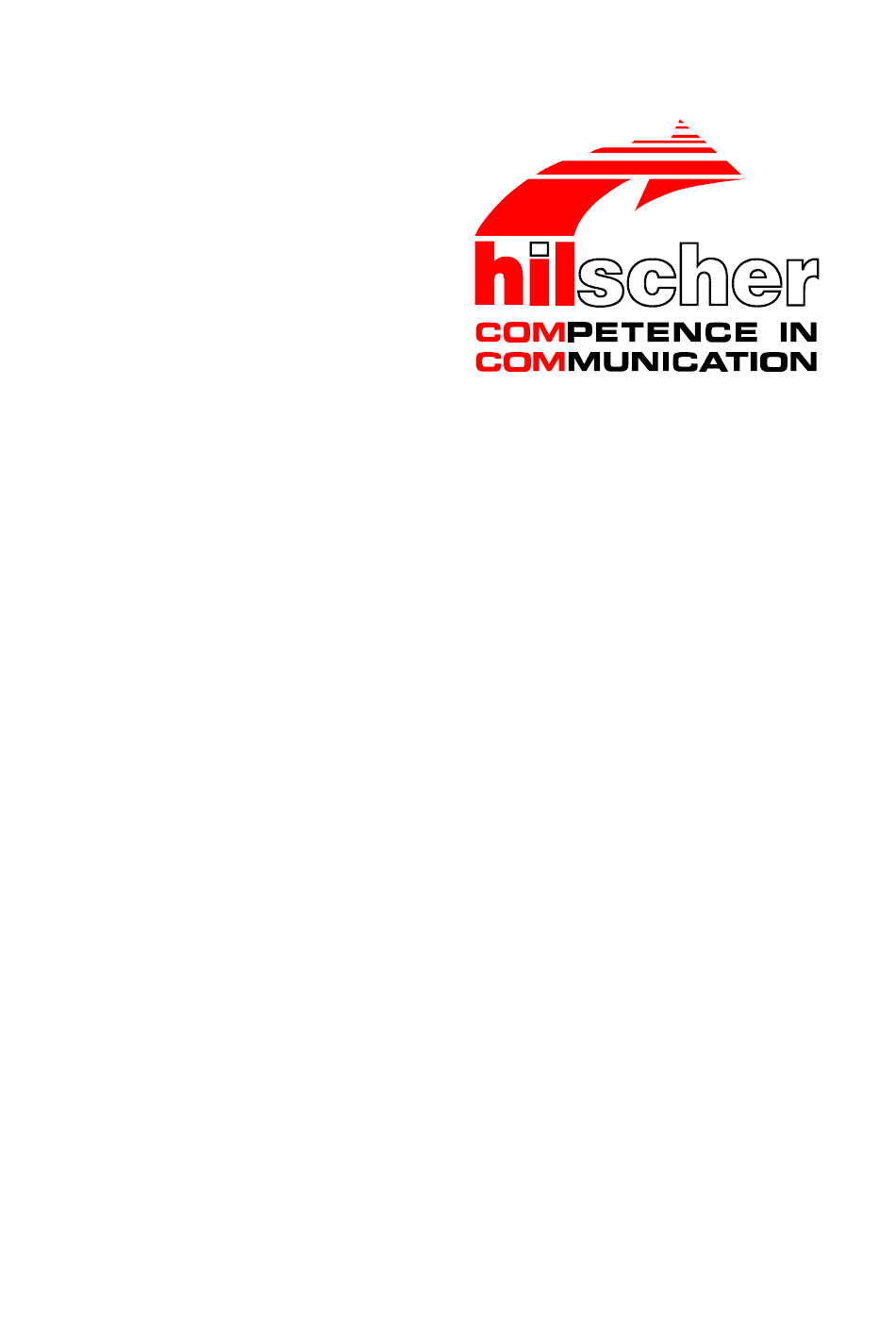

- Page 1 Device manual PKV 30-DPS Protocol converter for PROFIBUS-DP slave Hilscher Gesellschaft für Systemautomation mbH Rheinstraße 78 D-65795 Hattersheim Germany Tel. +49 (0) 6190/9907-0 Fax. +49 (0) 6190/9907-50 Sales: +49 (0) 6190/9907-0 Hotline and Support: +49 (0) 6190/9907-99 e-mail: hilscher@hilscher.com Homepage: http://www.hilscher.com...
- Page 2 2.1.2 Selection of the Bootstart Mode or Normal Mode Although this appliance has been developed with great care and intensively tested, Hilscher Gesellschaft für Systemautomation mbH cannot guarantee the suitability of this appliance for any purpose not confir- med by us in writing.
-
Page 3: Table Of Contents
3.1 Technical Data ..................Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 4: Introduction
The device is supplied in various versions. The protocol converter PKV 30-DPS has two communications interfaces and one of them is for PROFIBUS-DP slave and the other one is for general protocols. -
Page 5: General Device Description
Valid operation and an error state from the serial interfaces are displayed by LEDs. Block diagram of the protocol converter PKV 30-DPS Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 6: Configuration
Side viewing of PKV 30-DPS with jumper row selection jumper J2 interface open RS232 RS485 1-2, 3-4 RS422 4 3 2 Selection of serial interface type Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 7: Selection Of The Bootstart Mode Or Normal Mode
2.1.3 Selection of the PROFIBUS Slave Station Address The selcetion of the slave address is done with two code switches. Please refer to chapter 'Physical dimensions' in this manual. Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 8: Connection Of The Power Supply (X1)
The power supply are connected by means of a plug-in screw terminal. A 3-way COMBICON plug from PHOENIX (MSTB 2.5/3-ST-5.08) is used. symbol signal +24V +24V supply voltage reference potential earth ground Pin assignment of the X1 power supply connector Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 9: Serial Interfaces
EN485 RXDA RXD1A RXD1B ADM485AR CTSA 74HCT153 TXD1 RTS1 RXD1 CTS1 100n 100n RGND1 100n 100n MAX202 P9604S12.HP Output scematic of the serial device interface at connector X3 Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... - Page 10 RS 422 Pin assignment of the serial device interface X3 Using the RS232 interface use the pins only that are marked with a check in the table. Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E...
-
Page 11: Potential Free Rs485 Profibus Interface (X2)
The cable shield of the bus plug is directly connected to the case of the converter. nected at connector X2. The grounding follows over the chasis of the PKV. Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... - Page 12 Pinning of the 9-way D-Sub plug for the PROFIBUS-DP on X2 Pin 1 in not for the connection of the protection earth for earthing the shield. Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E...
-
Page 13: Diagnostic Interface
The PC is connected by a three-way cable which must not be longer than 15 m. The wiring of the cable is shown below. Diagnostic cable between the protocol converter and the PC Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 14: Activation Of The Diagnostic/Configuration Mode
General device description The interface on connector X3 of the PKV 30-DPS is designed for communication respectively for diagnostic/configuration If the interface is configured as If the power of the protocol converter is switched on, it checks the serial interface... -
Page 15: Status Displays - Led
Task 6 Task 7 with without without with without with with error error error error error error implem- error ented Display of the task which reports a parameterization error Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 16: Physical Dimensions
Connector arrangement on the protocol converter Physical dimensions of the protocol converter for snap mounting to a mounting rail The overall height of the converter is approx. 80 mm. Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E... -
Page 17: Appendix
18V - 30V, max. 0,15 A at 24 V Operating temperature 0 to 50 degrees Celsius Safety type IP50 Dimensions (LxHxD) 105 x 105 x 80 mm Mounting rail mounting DIN EN 50022 Copyright * Hilscher Gesellschaft für Systemautomation mbH * Hotline/Support: +49(0)6190/9907-99 * De:P30DPS#5E...
