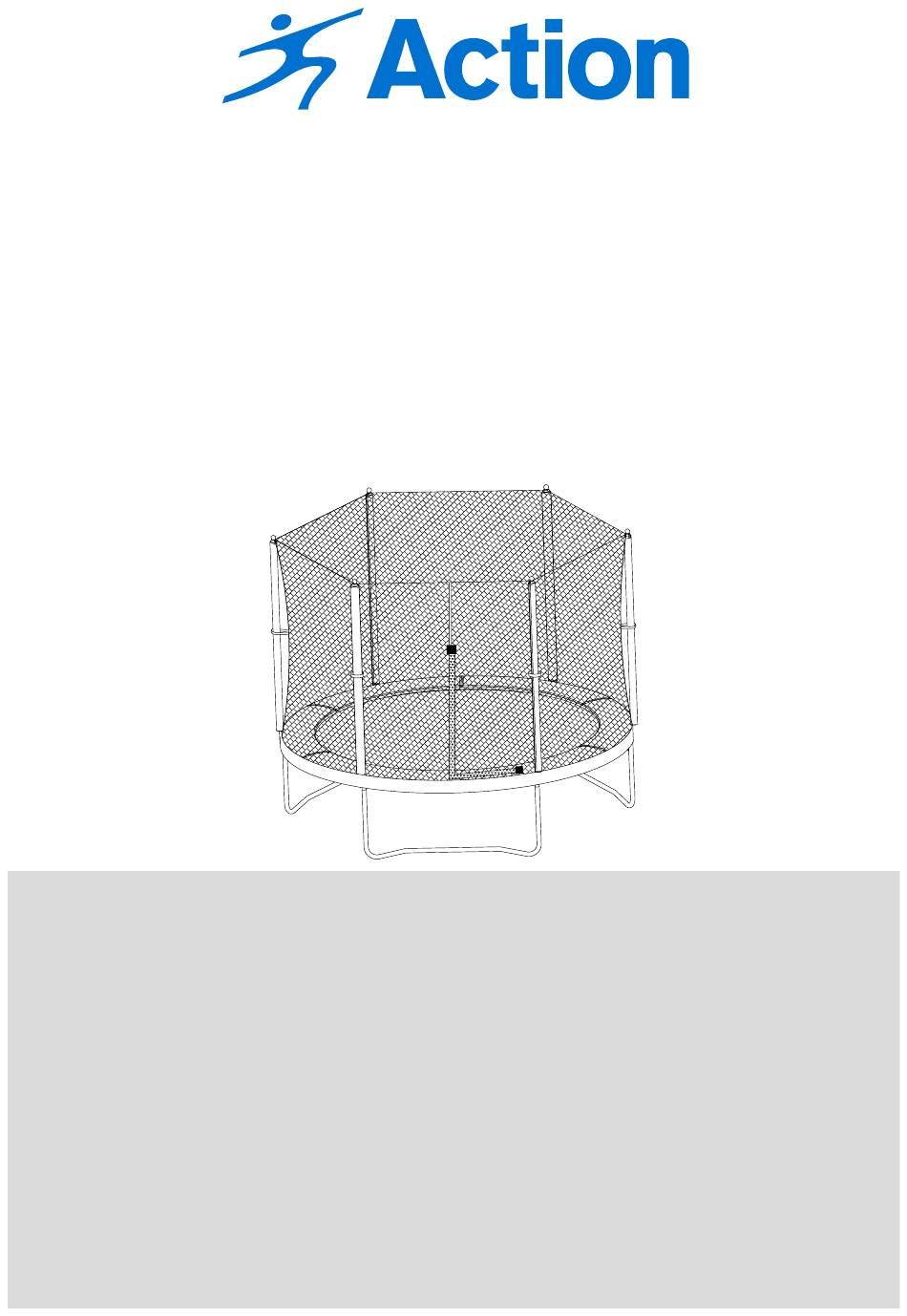

183cm (6ft) Trampoline
SAFETY INFORMATION, INSTALLATION, CARE
READ PRIOR TO ASSEMBLING AND USING THE TRAMPOLINE
WARNING: To ensure your safety, please do not attempt to assemble this trampoline
without reading this instruction manual carefully. Failure to comply with this warning
may result in injury and/or property damage.
• Prior to assembly, this product includes small parts/accessories that are not suitable
for children under 3 years of age as they may cause a choking hazard.
• This product should be assembled by 2 adults.
• Only use this product on a soft, flat level surface.
• This trampoline has a maximum user weight of 80kg.
• Do now allow more than one person on the trampoline at any time.
• This product is designed for domestic use only, it is not intended for gymnastics or high
level acrobatic stunts.
For parts and service enquiries, please contact Action Spares on 1800 465 070
S002211
Instruction Manual
ATTENTION!
AND MAINTENANCE INSTRUCTIONS
or e-mail service@actionspares.com.au
Advertisement
Table of Contents
Related Manuals for Action S002211
Summary of Contents for Action S002211
- Page 1 • Do now allow more than one person on the trampoline at any time. • This product is designed for domestic use only, it is not intended for gymnastics or high level acrobatic stunts. For parts and service enquiries, please contact Action Spares on 1800 465 070 or e-mail service@actionspares.com.au...
-
Page 2: Table Of Contents
Contents Warnings Installation Instructions Care and Maintenance Instructions Safety Information Basic Skills Basic Landing Positions Parts List Assembly Instructions Inspection Check List Warranty Information S002211 6ft Trampoline... -
Page 3: Warnings
14. Do not allow any activity underneath the trampoline. 15. Users should be barefooted or only wearing socks when using the trampoline, footwear must not be worn. S002211 6ft Trampoline... - Page 4 24. Do not bounce on the trampoline immediately after a meal. 25. Jewellery should be removed before using the trampoline as this may cause an injury to the user and/or damage the trampoline. 26. Users should only use the trampoline under adult supervision. S002211 6ft Trampoline...
-
Page 5: Installation Instructions
Keep the area surrounding the trampoline clear. Place the trampoline away from walls, structures, fences and other play areas. Place the trampoline in a well-lit area. Trampoline Trampoline width width 1.5m 1.5m 1.5m 1.5m Correct installation Incorrect installation S002211 6ft Trampoline... -
Page 6: Care And Maintenance Instructions
Sagging of the barrier Bent or broken barrier supports Sharp protrusions on the barrier support structure Broken or damaged enclosure entry system NOTE: As components will deteriorate over time, please note your date of purchase here. Date: S002211 6ft Trampoline... -
Page 7: Safety Information
Shoes should be removed as they may damage the bed and increase the risk of injury. S002211 6ft Trampoline... - Page 8 For further information or additional instructional material, contact the manufacturer or retailer. To learn more advanced trampolining skills contact a suitable gymnastics/ trampoline club. S002211 6ft Trampoline...
- Page 9 Learn this skill before you attempt any others. h. Avoid bouncing too high. Stay low until you can control your bounce and repeatedly land in the centre of the trampoline. Do not bounce immediately after a meal. S002211 6ft Trampoline...
-
Page 10: Basic Skills
3. The third phase is the balance, where your hands flair out the side and your arms slowly come back down, keeping your body balanced, ready to start the process again (see Figure B1 on page 11). S002211 6ft Trampoline... - Page 11 Basic Skills (cont) FIGURE B1 - ARM ACTION Bounce Variations Figures B2, B3 and B4 show three variations, the tuck, the pike, and the straddle pike respectively. These should be assumed at the top of the bounce, before resuming the normal landing position on your feet.
-
Page 12: Basic Landing Positions
Hands should be on the bed slightly behind your hips. Fingers should be together and pointed toward the toes. 3. Push on the bed with your hands to rebound up to your feet (see Figure B5). FIGURE B5 - SEAT DROP S002211 6ft Trampoline... - Page 13 3. From the standing position, ride the bed several times. Lift upward with your hips, reach forward with your hands, and land on all fours. Look slightly in front of your hands on landing. Push to rebound to your feet (see Figure B6). FIGURE B6 - HANDS & KNEES DROP S002211 6ft Trampoline...
-
Page 14: Parts List
Leg Base x3 Springs x36 Spring Hook x1 Lower Enclosure Pole x6 Upper Enclosure Pole x6 Pole Covers x6 Net x1 T-Joints x6 NOTE: Some parts may be supplied pre-assembled. NOTE: Some parts may be supplied pre-assembled. S002211 6ft Trampoline... -
Page 15: Assembly Instructions
Lay down Leg Bases (4) inside the Top Rail (3), as shown. Place T-Joints (12) in between each of the Top Rail (3). NOTE: The T-Joint (13) should have the smaller tube facing upwards. The Top Rails (3) should also have the grooves in the frame facing upwards. S002211 6ft Trampoline... - Page 16 Top Rail (3) into ends of the T-Joint (12). Insert the assembled legs into the base of the T-Joints (12) on the frame. Secure into place using the locking pins. Ensure the holes on the frame are facing upwards. S002211 6ft Trampoline...
- Page 17 This will even out the tension on the springs from the mat and make it easier to connect the last couple of springs. S002211 6ft Trampoline...
- Page 18 On the outside of the pad, there are elastic straps with a connection clip. On the inside of the pad (at the stitching line where the two colour of the pad join, there is a receiving loop to attach the connection clips: S002211 6ft Trampoline...
- Page 19 Take the connection clip, and attach it to the Safety Pad (2) at the receiving loop. Repeat around the safety pad for all straps. safety pad Take strap to centre and move across one left or right spring location trampoline mat CORRECT POSITION: When attached, pads should fully cover the springs S002211 6ft Trampoline...
- Page 20 Slide the Pole Sleeve (10) over each of the 6 assembled poles. Attach all 6 enclosure poles to the frame by inserting them into the upper part of the T-Joints (12). Secure into place using the locking pins. S002211 6ft Trampoline...
- Page 21 Net (11) to the trampoline frame. Attach the hook and loop tape located on the Net (11) to each enclosure pole. Ensure that you read all the warning labels on the trampoline to familiarise yourself with them. Please keep this instruction manual for future reference. S002211 6ft Trampoline...
-
Page 22: Inspection Check List
Enclosure is in good condition (e.g. no punctures, tears, holes, sagging or other damage) Stitching of the enclosure is in good condition Enclosure support structure does not present sharp protrusions Enclosure entrance is in good condition and not broken or damaged S002211 6ft Trampoline... -
Page 23: Warranty Information
National Service Centre: 2/24 Anderson Road, Smeaton Grange, NSW 2567 – if mailing please include your contact details. A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase, the retailer name you purchased the item from, and the brand on the product. - Page 24 9:00am – 4:30pm Monday to Friday (excluding Public Holidays) 9:00am – 3:00pm Saturday This product is warranted and distributed by: Action Sports of 48B Egerton St, Silverwater NSW, 2128 Phone: (02) 8799 3500 © 2020 Action Sports Equipment Pty Ltd.
