WARNING: To ensure your safety, please do not attempt to assemble this slide without reading this
instruction manual carefully. Failure to comply with this warning may result in injury and/or property
damage.
• Prior to assembly, this slide includes small parts/accessories that are not suitable for children under 3
years of age as they may cause a choking hazard.
• This slide should be assembled by an adult.
• Only use this slide on a soft, flat level surface.
• Maximum user weight of 45kg.
• This slide is suitable for users aged 3 years and over.
• Do not allow more than 1 person on the slide at any time.
• This slide is designed for domestic use only, it is not intended for commercial use in play centres,
nurseries etc
For parts and service enquiries, please contact our National Service Centre on 1800 465 070 or e-mail
service@actionspares.com.au

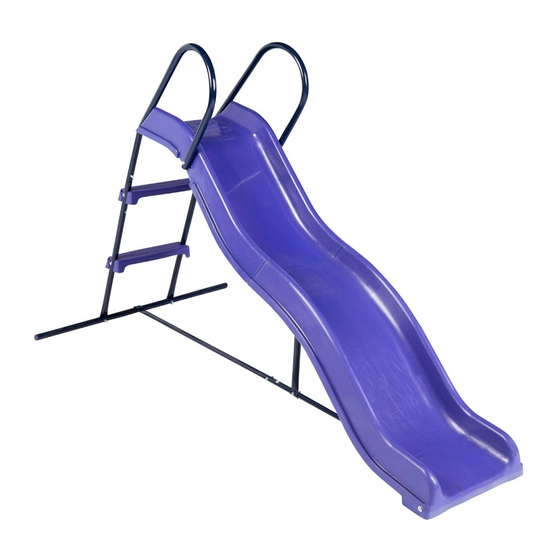

6ft Wavy Slide
S002373
ATTENTION!
SAFETY INFORMATION, INSTALLATION, CARE
AND MAINTENANCE INSTRUCTIONS.
READ PRIOR TO ASSEMBLING AND USING THE SLIDE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S002373 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Action S002373

  • Page 1 6ft Wavy Slide S002373 ATTENTION! SAFETY INFORMATION, INSTALLATION, CARE AND MAINTENANCE INSTRUCTIONS. READ PRIOR TO ASSEMBLING AND USING THE SLIDE. WARNING: To ensure your safety, please do not attempt to assemble this slide without reading this instruction manual carefully. Failure to comply with this warning may result in injury and/or property damage.
  • Page 2 Contents Warnings Parts List Assembly Instructions Warranty Information S002373 Action 6ft Wavy Slide...
  • Page 3 15. Jewellery should be removed before using the Wavy Slide as this may cause an injury to the user and/or damage the Wavy Slide. 16. Users should only use the Wavy Slide under adult supervision. S002373 Action 6ft Wavy Slide...
  • Page 4 Upper support tube Lower support tube Handle Stabiliser bar Ladder tube Vertical support tube Front tie bar Rear tie bar Support strap Support strap Support strap Upper slide Lower slide Step Connector Spanner Allen Key S002373 Action 6ft Wavy Slide...
  • Page 5 Assembly Instructions National NOTE: If you have any problems by this stage, please do not try to install the slide and call our Service Centre 1800 465 070. S002373 Action 6ft Wavy Slide...
  • Page 6 Assembly Instructions (cont) Step 1 Slide chute assembly CONNECTOR x 4 M6 BOLT 20mm x 6 One connector for both sides One connector for both sides S002373 Action 6ft Wavy Slide...
  • Page 7 Assembly Instructions (cont) Step 2 Bracket assembly M6 BOLT 17mm x 1 M6 BOLT 35mm x 8 The F3 bolts for part 31 only need to be finger tight S002373 Action 6ft Wavy Slide...
  • Page 8 Assembly Instructions (cont) Step 3 Assembly Of The Bracket Onto The Slide M6 BOLT 17mm x 3 M6 BOLT 66mm x 2 M6 bolt spacer S002373 Action 6ft Wavy Slide...
  • Page 9 Assembly Instructions (cont) Step 4 Tie bar assembly M6 BOLT 17mm x 1 M6 BOLT 25mm x 1 M6 BOLT 30mm x 1 Top of the slide Bottom of the slide S002373 Action 6ft Wavy Slide...
  • Page 10 Assembly Instructions (cont) Step 5 Ladder assembly M6 BOLT 35mm x 2 M6 BOLT 38mm x 4 S002373 Action 6ft Wavy Slide...
  • Page 11 Assembly Instructions (cont) Step 6 Assembling the ladder to the slide M6 BOLT 35mm x 3 M6 BOLT 63mm x 4 S002373 Action 6ft Wavy Slide...
  • Page 12 M6 BOLT 60mm x 2 Underside of the slide National NOTE: If you have any problems by this stage, please do not try to install the slide and call our Service Centre 1800 465 070 S002373 Action 6ft Wavy Slide...
  • Page 13 2/24 Anderson Road, Smeaton Grange, NSW 2567 – if mailing please include your contact details. A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased the item from, and the brand on the product.
  • Page 14 9:00am – 4:30pm Monday to Friday (excluding Public Holidays) 9:00am – 3:00pm Saturday This product is warranted and distributed by: Action Sports of 48B Egerton St, Silverwater NSW, 2128 Phone: (02) 8799 3500 © 2019 Action Sports Equipment Pty Ltd.
