2.2.1 Power supply

RHF2S208 could be powered by both AC/DC adapter and PoE injector. An high reliability industrial
IP67 AC to DC adapter is configured for each gateway when it comes out from the factory. Specially, a
3.2Ah LiFePo4 battery is integrated for RHF2S208Bxx. All the source could be injected into the
gateway, which could be switched automatically based on the logic the AC/DC adapter > PoE injector >
battery.

2.2.2 Networking

RHF2S208 support serveral kinds of way for networking backhaul. Please uncover the enclosure and
install the sim card if you want to use the cellular network. Or a cable is needed to be connected to a
router to use the 10/100m ethernet. And you can set the priority of the two selection on the web-based
utility.

2.2.3 Debug and Configure

Several debug interface could be used:
1) Connect the gateway to your PC with USB to UART interface
2) DHCP in a LAN
3) Wireless access via WiFi
V1.1 2018-10-9
www.risinghf.com

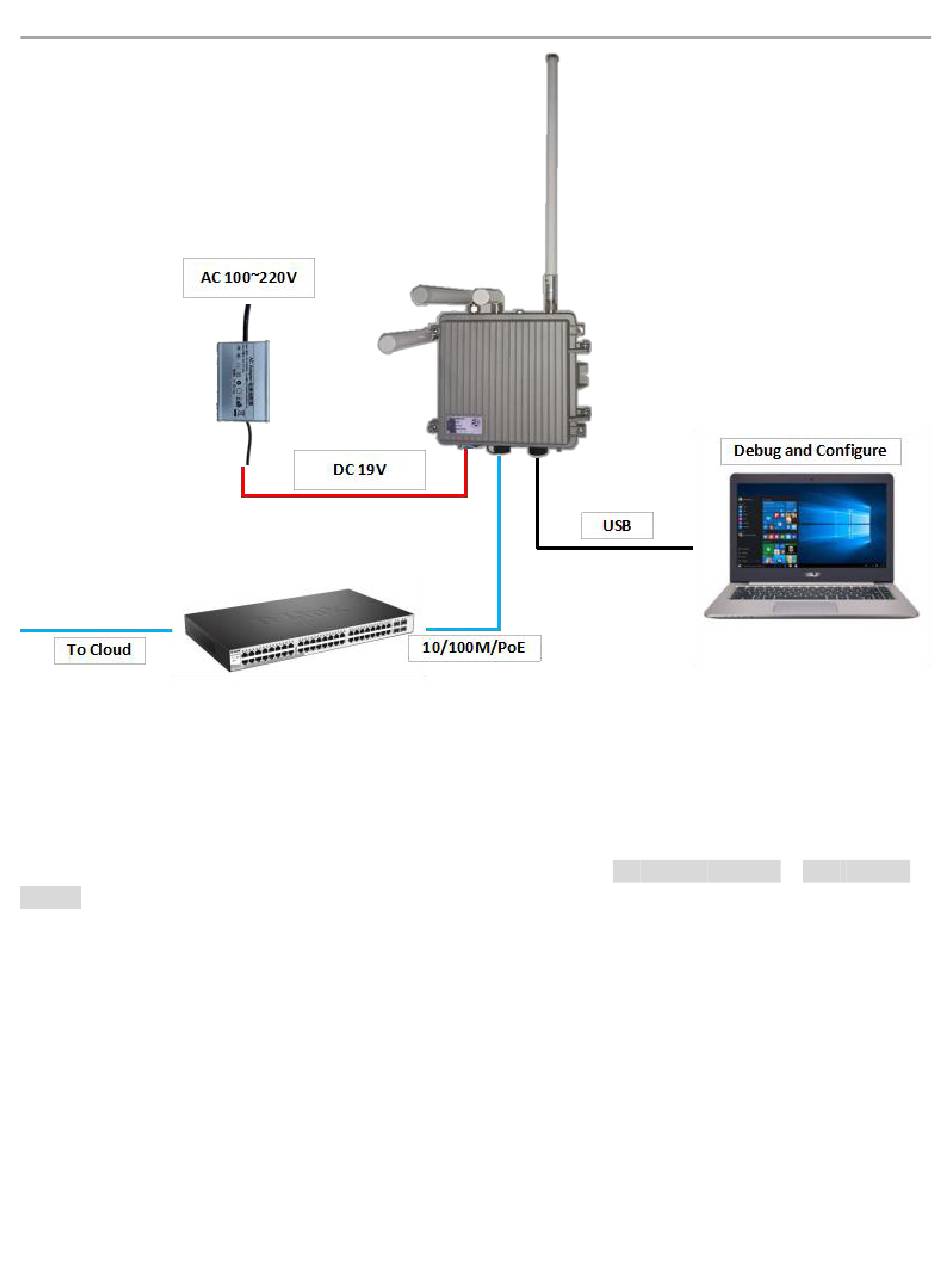

Figure 2-2 Set up your gateway
