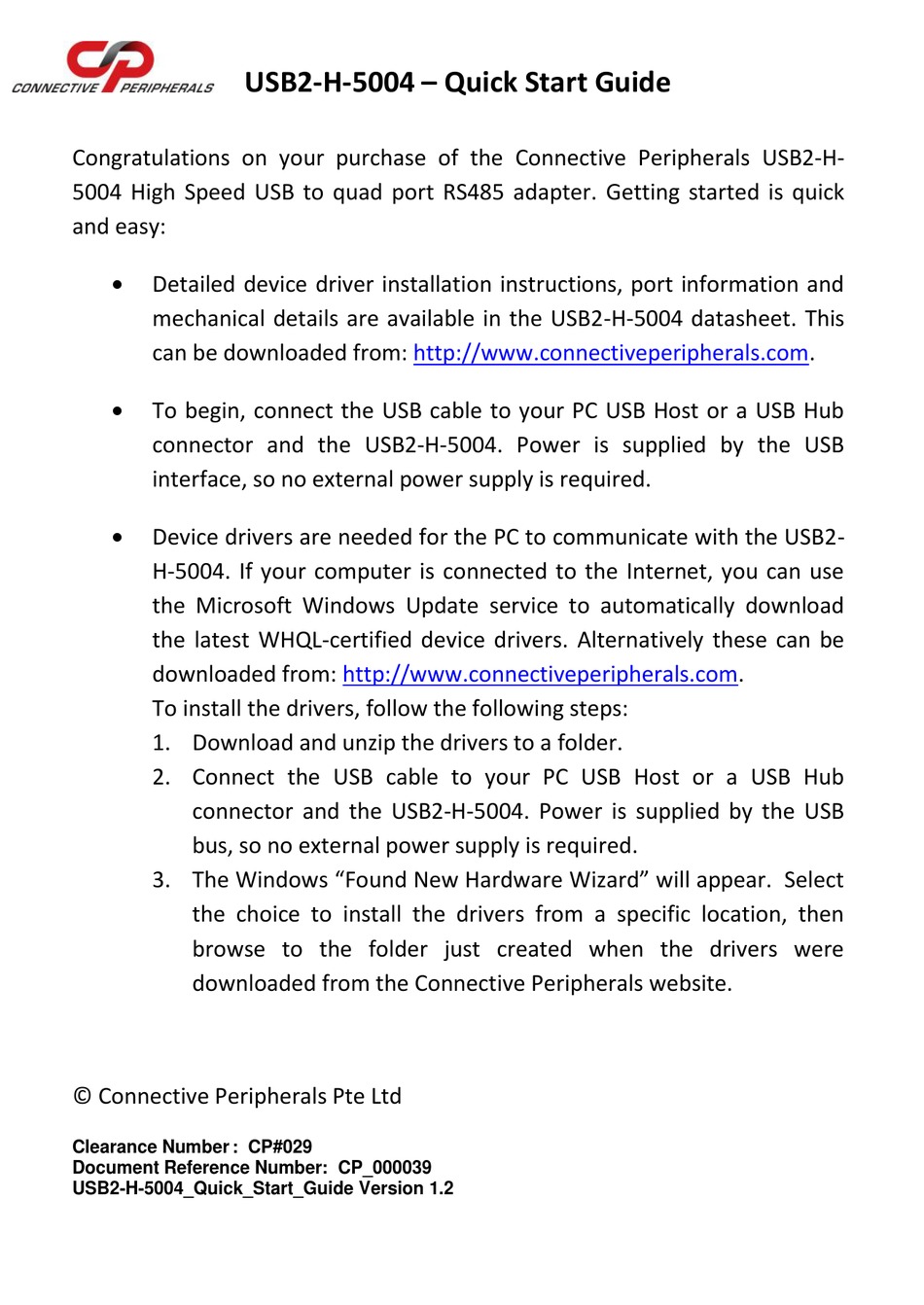

Connective Peripherals USB2-H-5004 Quick Start Manual

Congratulations on your purchase of the Connective Peripherals USB2-H-
5004 High Speed USB to quad port RS485 adapter. Getting started is quick
and easy:

Detailed device driver installation instructions, port information and
mechanical details are available in the USB2-H-5004 datasheet. This
can be downloaded from: http://www.connectiveperipherals.com.

To begin, connect the USB cable to your PC USB Host or a USB Hub
connector and the USB2-H-5004. Power is supplied by the USB
interface, so no external power supply is required.

Device drivers are needed for the PC to communicate with the USB2-
H-5004. If your computer is connected to the Internet, you can use
the Microsoft Windows Update service to automatically download
the latest WHQL-certified device drivers. Alternatively these can be
downloaded from: http://www.connectiveperipherals.com.
To install the drivers, follow the following steps:
1. Download and unzip the drivers to a folder.
2. Connect the USB cable to your PC USB Host or a USB Hub
connector and the USB2-H-5004. Power is supplied by the USB
bus, so no external power supply is required.
3. The Windows "Found New Hardware Wizard" will appear. Select
the choice to install the drivers from a specific location, then
browse to the folder just created when the drivers were
downloaded from the Connective Peripherals website.
© Connective Peripherals Pte Ltd
Clearance Number : CP#029
Document Reference Number: CP_000039
USB2-H-5004_Quick_Start_Guide Version 1.2
USB2-H-5004 – Quick Start Guide
