- Page 1 SirenSat Offshore Installation & User Guide...
-
Page 2: Product Overview

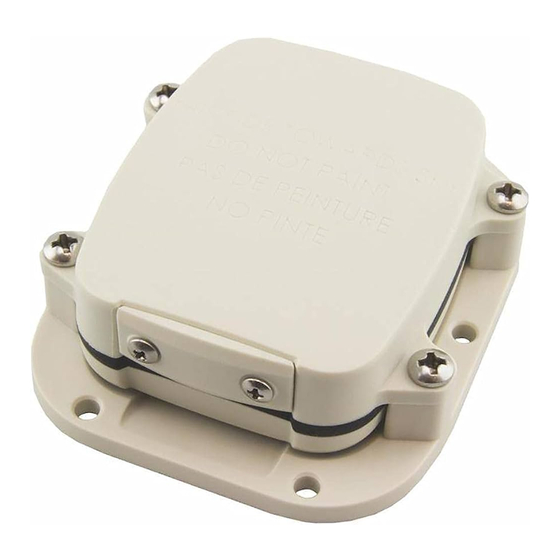

Product Overview The SirenSat Offshore system provides a practical solution for offshore vessel tracking beyond cellular range. This provides the ability to collect regularly updated location data that can be accessed through the Siren Marine smart device app and Siren Marine fleet app. The SirenSat Offshore also meets the requirement of several marine insurance companies that require vessels to have a satellite tracking application. -
Page 3: Getting Started
The SirenSat Offshore Antenna will be required if you have not already purchased this device. Siren Marine Main Device A main device hub such as the Siren 3 Pro, Siren 3, or MTC must be installed on your vessel to operate all Siren Marine devices and send data to the Siren Marine device app. - Page 4 The SirenSat Offshore system must be paired to the Siren Marine device app prior to installation. The base of the SirenSat Offshore will have a barcode with serial number that is required to pair the system. Follow these steps to pair the SirenSat Offshore:...
- Page 5 Install the supplied AAA lithium-ion batteries as shown below. You will need a small Philips-head screwdriver to open the battery chassis. The batteries will power the SirenSat Offshore for up to fifteen days without connection to an external power supply. Should the internal battery power drain to low battery, an alert will appear in the Siren Marine device app.
- Page 6 Powering On The SirenSat Offshore is equipped with a small ON/OFF switch located on the side of the antenna as shown below. The switch is directly above the mini-USB port and can be toggled using a tool such as a small flat-head screwdriver or pen. The SirenSat Offshore is supplied with the power in the OFF position.
- Page 7 Wiring The SirenSat Offshore antenna should be connected to a battery source and external input sensors using the supplied wire harness. Please refer to the table and wiring diagram below: Wire Color Function Violet Battery Power + (8V – 22V)
- Page 8 Please note that the SirenSat Offshore antenna consumes 0.27 mAh of battery power per day as it has been programmed to make a connection to its satellite system up to every five minutes. This frequency allows the Siren Marine geofence capabilities to be used while external to cellular coverage.
- Page 9 30 minutes if not in motion. SirenSat Offshore vessel tracking updates will appear on the mobile app as a yellow tracking line, versus the red tracking line used to show the vessel is connected via cellular. Location updates begin when the antenna is switched ON and will continue thereafter.
- Page 10 These wired sensors can be connected in series with the Siren Marine device or wired directly to the SirenSat Offshore harness if desired. Siren Marine wireless sensors will not work with the SirenSat Offshore. Users will only be alerted when these sensors are tripped into their alert state. Users will not be alerted when sensors return to their normal state.
-
Page 11: Coverage Map
Coverage Map Satellite coverage areas provided by the SirenSat Offshore indicated on map below:... -
Page 12: Technical Specifications
Technical Specifications General 2.7in (H) x 3.25in (W) x 1in (D) / 68.58mm (H) x 82.55mm (W) x 25.4mm (D) Dimensions Brackets included in measurement Weight 3.6oz / 102g Environmental Operating Temperature -22°F to +140°F / -30°C to +60°C Power Consumption Line Power 5VDC or 8-22VDC with regulator cable (4) AAA 1.5V Lithium-Ion... -
Page 13: Customer Support
Questions? Give us a call or send us an email. We’re standing by to help. Customer Support Call: (855) 757-4736 Email: support@sirenmarine.com Hours: 8:30AM-5:00PM EST sirenmarine.com 221 Third St., Suite 200, Newport, RI 02840...
