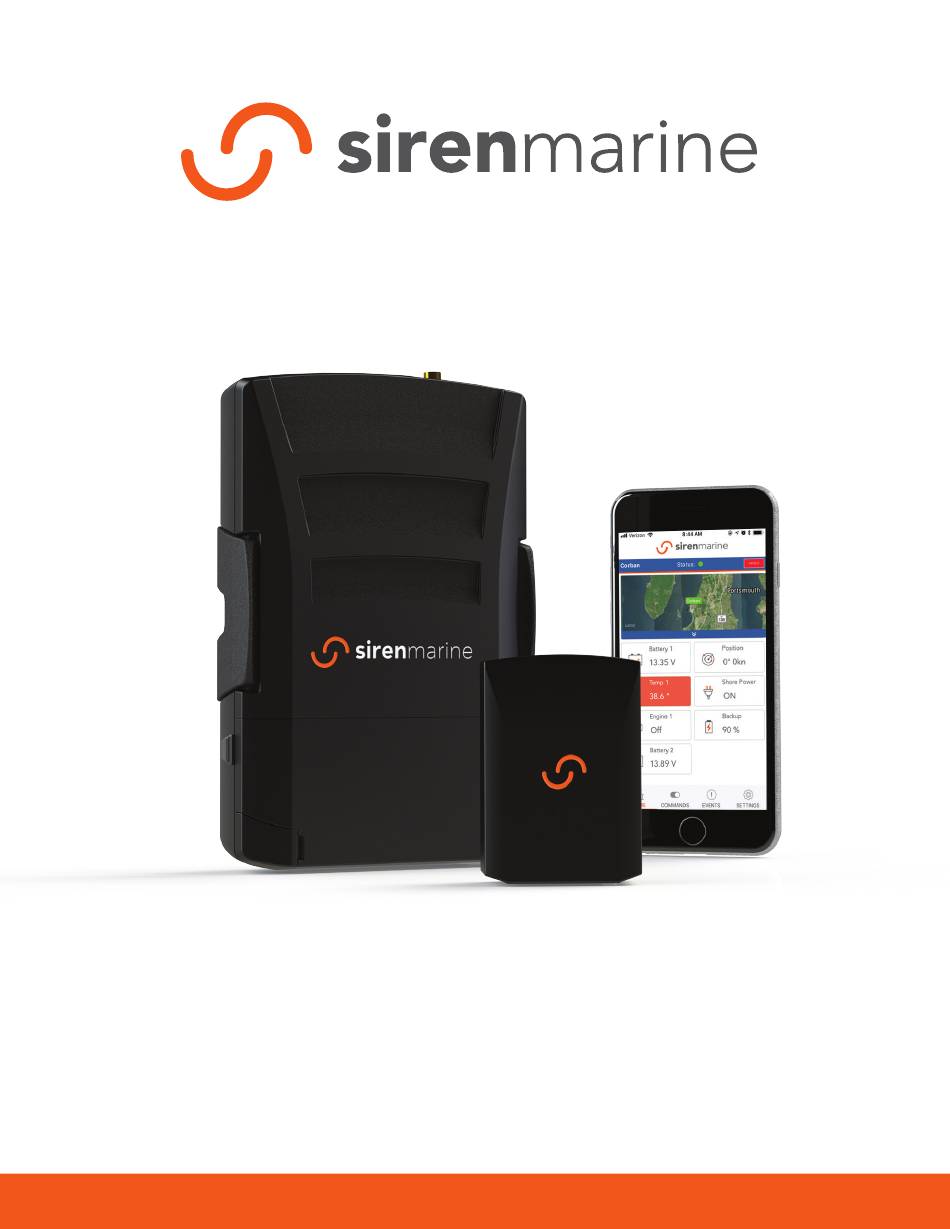

- Page 1 SETUP & INSTALLATION GUIDE...
- Page 2 Every boater knows that small problems can become big problems if left undetected. Our products allow you to monitor, track, control, and secure your boat from a cell phone, tablet or computer. Siren Marine’s years of boating experience has led to the development of a technology made “by boaters, for boaters” that solves real-world...
-
Page 3: Table Of Contents
Table of Contents MTC Standard Features ....4 Package Contents ......5 PIN Layout ........5 Battery Connection ......6 Battery 1 Monitoring ....... 7 Battery 2 Monitoring ....... 7 Ignition (Engine 1) ......8 Manual Arm/Disarm Switch ..... 8 Security 1&2 ........ -
Page 4: Mtc Standard Features
MTC Standard Features The Siren Marine MTC is ushering in the future of the Connected Boat ™ . Now offering a brand new easy-to-use app, global 3G connectivity, the choice of wired and wireless sensors, and more inputs than ever before, the MTC is the most versatile and reliable system on the market. -
Page 5: Package Contents
Setup Guide App Guide SETUP & INSTALLATION GUIDE APP GUIDE GUIDE PIN Layout REFERENCE THE MTC TERMINAL BOARD BELOW FOR HELP WHEN INSTALLING UNIT. 10 9 22 21 20 19 18 17 16 15 14 12 11 BATT BATT BATT... -
Page 6: Battery Connection
Connect to Power The Siren Marine MTC can be powered by either a 12 or 24vdc system. The internal battery charges off of the boat’s battery, and it is recommended that the unit be connected directly to the battery with a 5amp slow fuse fitted between the unit and the power supply. -
Page 7: Battery 1 Monitoring
Battery Battery 2 Monitoring Battery 2 Monitoring The Siren Marne MTC has the ability to monitor 2 batteries on board. Both battery inputs share the same common ground(-) labeled BATT NEG. To connect the MTC to a second battery Connect one end of a Red 12v Positive(+) lead ( not supplied ) from the Positive(+) post on your second battery and connect the other end to terminal #3 on the MTC labeled BATT 2+. -
Page 8: Ignition (Engine 1)
Siren Marine app or when you are outside cell coverage. Connect the Negative(-) side of the switch to the input labeled ARM/DIS on the MTC. To learn how to setup your arm and disarm functions see the Siren Marine Quick Start Guide. -
Page 9: Spare Input - Dig In7
Connect the Orange Wire out of the Blue Sea wire harness would be terminated on BL SEA ON on the MTC terminal board. Connect the Brown Wire out of the Blue Sea wire harness to the MTC to BL SEA OFF. Status LED PINS Coming soon for alarm status indicator light. -
Page 10: Technical Specifications
Technical Specifications General Physical Dimensions ......6.5in x 4.5in x 1.25in Weight ...........0.98lbs Digital Inputs .........7 (0-30VDC) Digital Outputs ........3 Remote Battery Control ......On/Off Analog Inputs ........5 (0-30VDC) 1-Wire Interface Inputs ......2 (Temperature Sensing) Status LEDs (2)........GPS (green)/Cellular (red) Electrical Operating Voltage .......10-30 VDC Power Consumption ......<20mA @ 12v (Sleep on network with SMS) 70mA @ 12v (Active Tracking) Back-Up Battery ........3000mAh Lithium Polymer Battery... -
Page 11: Terms & Conditions
Terms & Conditions Definitions End User refers to the owner of a Siren Marine Device (MTC). If the SIM card is abused in any way or is removed from the Siren Marine Service Provider is Siren Marine LLC. Device. Distributor: The Service Provider’s representative in the U.S.A. is Siren Marine, If the Service is canceled the Siren Marine System may be sent to Service 221 Third St #200, Newport, RI, U.S.A. - Page 12 Monitor Track Control sirenmarine.com Technical Support: 401.619.4774 855.75.SIREN (855.757.4736) 221 Third St., Suite 200, Newport, RI 02840...
