ZIGBEE 614 Quick Start Manual

ZIGBEE 614 Quick Start Manual

Led lighting driver

Advertisement

Quick Links

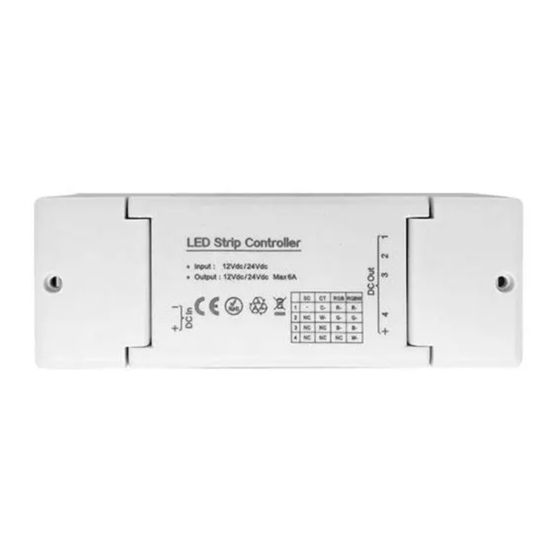

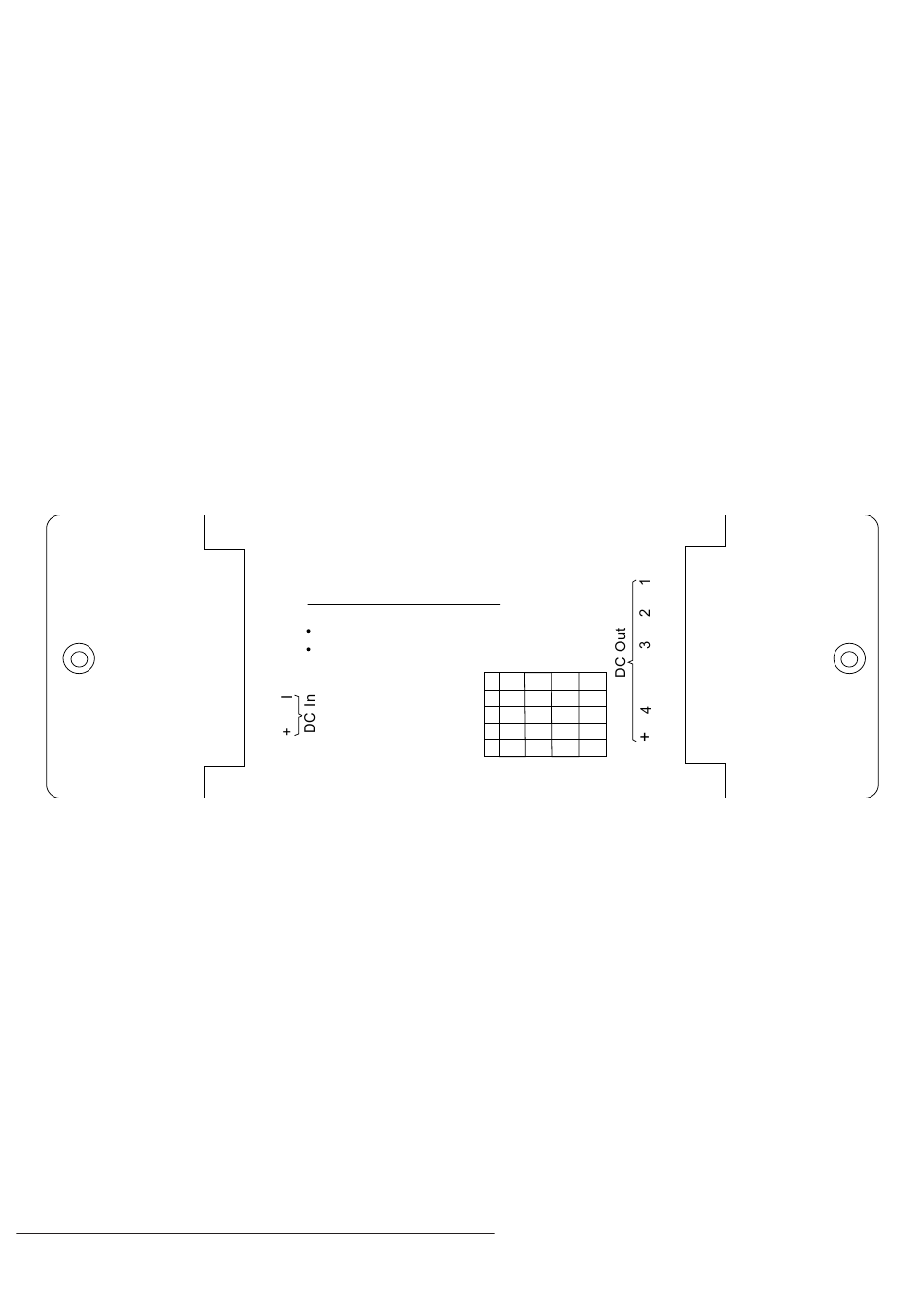

SLC614 LED Lighting Driver
Dimming/CCT/RGB/RGBW
Quick Start Guide
LED Strip Controller
Input : 12Vdc/24Vdc
Output : 12Vdc/24Vdc Max 6A
SC
CT
RGB
RGBW
-
1
C-
R-
R-
2
NC
W-
G-
G-
3
B-
NC
NC
B-
4
W-
NC
NC
NC

Advertisement

loading
Need help?

Need help?

Do you have a question about the 614 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZIGBEE 614

  • Page 1 LED Strip Controller Input : 12Vdc/24Vdc Output : 12Vdc/24Vdc Max 6A RGBW SLC614 LED Lighting Driver Dimming/CCT/RGB/RGBW Quick Start Guide...
  • Page 2: Get Started

    Introduction LED Strip Controller Input : 12Vdc/24Vdc Output : 12Vdc/24Vdc Max 6A RGBW The LED Lighting Driver with LED light strips allows you to remotely control your lighting or even apply schedules for automatic switching from your mobile phone. This guide will provide you with an overview of the product and help you get through the initial setup to installation.
  • Page 3 3.1 To get started, you will need: A Gateway The mobile app 3.2 Installation The in-wall switch must be installed by qualified electrical personnel, keep the wiring diagram below for future reference. LED Strip Controller Input : 12Vdc/24Vdc Output : 12Vdc/24Vdc Max 6A RGBW Wiring Diagram...
  • Page 4 3.3 Connect to the gateway’s network 1. Set your gateway to permit joining. 2. The LED strip light that connected to the LED Lighting Driver will start flashing after installation indicating it is ready to join the gateway's network. 3. The LED Lighting Driver will join the gateway automatically and the LED strip light will turn steady when successfully joined.
  • Page 5: Technical Specifications

    Technical Specifications Wireless Connectivity • ZigBee 2.4GHz IEEE 802.15.4 • Operating frequency: 2.4GHz • Range outdoor/indoor: RF Characteristics 100m/30m • Internal PCB antenna ZigBee Profile • ZigBee Lighting Link Profile Power Input • DC 12/24V Max power • 144W Operation temperature •...
  • Page 6: Safety Notice

    Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the LED Lighting Driver and other property. Read all the safety notices below before using the LED Lighting Driver. • Avoid high humidity or extreme temperatures. •...

This manual is also suitable for:

Slc614
