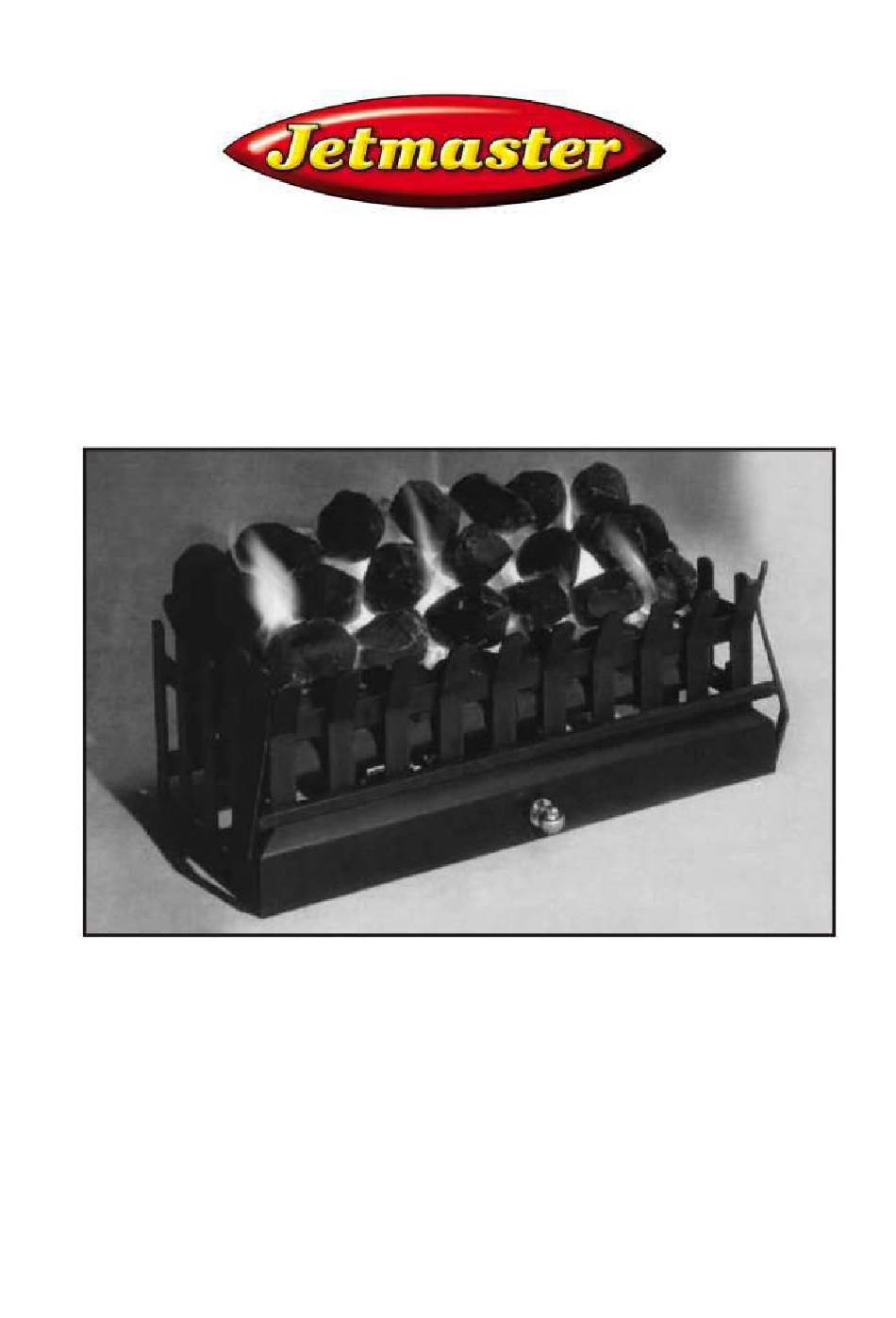

DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL
1
INSTALLATION
AND
OPERATING INSTRUCTION MANUAL
JETMASTER
DE LUXE GAS GRATES AND
DE LUXE CONVECTOR GAS GRATES
MODELS: DE LUXE 600, 700, 850, 1050 GAS GRATE
MODELS: DE LUXE 550, 700, 850 CONVECTOR GAS GRATE
Advertisement
Related Manuals for Jetmaster DE LUXE 600
Summary of Contents for Jetmaster DE LUXE 600
- Page 1 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL INSTALLATION OPERATING INSTRUCTION MANUAL JETMASTER DE LUXE GAS GRATES AND DE LUXE CONVECTOR GAS GRATES MODELS: DE LUXE 600, 700, 850, 1050 GAS GRATE MODELS: DE LUXE 550, 700, 850 CONVECTOR GAS GRATE...
- Page 2 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Technical Data...
- Page 3 PREPARATORY BUILDING WORK WITH JETMASTER FIREBOX PREPARATORY BUILDING WORK / CUSTOM-BUILT ENCLOSURE GAS CYLINDERS / PIPE RUNS INSTALLING THE GAS GRATE INTO A JETMASTER FIREBOX COMMISSIONING OF THE GAS GRATE ASSEMBLY SEQUENCE DE LUXE GAS AND CONVECTOR GAS GRATE COMMISSIONING OF GAS GRATE...
- Page 4 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL 1. General For best performance, Jetmaster De Luxe Gas Grates are designed to be installed within the appropriately sized Jetmaster Universal or IGC built-in, or Jetmaster Hex, Mynx, Lynx free- standing fireplaces.
- Page 5 SANS 827: 2011 Installation of pipes and appliances for use with Natural Gas. 4. Deviation from Instructions Consult Jetmaster prior to commencing installation, if any deviation from these guidelines is being considered. Failure to do so may result in an illegal, dangerous and uninsured installation and will invalidate your Jetmaster Warranty.
- Page 6 Check the Jetmaster Pipe Sizing Chart below to choose the correct size of pipe for the gas grate size and the length of pipe run. Although Jetmaster supplies 1.5 metres of dia. 8 mm copper tubing with LP Gas Convectors, it is not necessarily of sufficient size if a larger fire or longer than 4 metre run is to be fitted.
- Page 7 Drill the side or the back of the Jetmaster firebox body with a 10 or 12mm drill for the gas pipe entry point. Sleeve the gas pipe with metal tubing where it is to pass through the wall of the fireplace to protect it.
- Page 8 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Assembly Sequence De Luxe Gas and Convector Gas Grates: Frame for the DLX Gas Grate Frame for the DLX Convector Gas Grate Gas Grate inside the DLX Frame Gas Grate inside the DLX Convector Frame Fence clipped in place on the DLX Frame Fence clipped in place on the DLX Convector Frame...
- Page 9 Turn the gas grate back onto its base. Fit the gas front and dummy ash-pan. If installed in a Jetmaster Universal firebox, fit the gag, which is supplied with the gas grate, to the Jetmaster damper friction bar, to prevent the damper from closing more than halfway.
- Page 10 10 minutes and check that in all positions all the fumes are drawn up into the flue system. Turn the gas grate off and allow it to cool and then touch up the Gas Grate with Jetmaster heat resistance paint, if necessary.
- Page 11 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Step 1: Position the front coal segments as shown above. The left hand side front coal piece has an indentation on its rear edge to clear the pilot hole. Ensure that the pilot hole and flame strip are not obstructed.
- Page 12 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Fit the left and right hand pre-formed coal segments on the respective sides of the centre back board. The side pieces should be inserted into the tray in such a way that their bottom ends make contact with the rear edge of the front segments.
- Page 13 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Place a second row of coals, using the smaller, oval shaped type, in a rearward pointing, near vertical way so that the bottom of these coals touch the coals in the first row and they are resting in the valleys created by the protrusions of the centre back coal panel.
- Page 14 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Please Note: Care should be taken when handling the ceramic coal pieces. When arranging the ceramics on the De Luxe grate, it is important to make sure that all pieces are aligned properly in accordance with the above.
- Page 15 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL When the pilot flame emerges, keep the knob pressed in for a further 8 to 10 seconds to allow the flame to heat the thermocouple sufficiently which in turn will allow the gas valve to open and gas to flow to the grate.
- Page 16 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Shutting the fire down procedure: Turn the control knob clock-wise to the “low” flame position. Now press the knob backwards and then turn clock- wise to the “Off” position. This will stop the flow of gas to the pilot and burner, resulting in the extinguishing of the flames.
- Page 17 Do not attempt to re-light the gas grate until the cause of the fume emission has been identified and rectified. S Seek professional advice from Jetmaster (Pty) Ltd, Tel: 011 764 4632, or a registered LPGSA Association installer. 21. Servicing Procedure...
- Page 18 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL Maintenance Procedure: Shut down the fire and allow the grate to cool. Turn the gas supply off at the gas cylinder or isolation valve. Carefully remove all the ceramic coals, one at a time and clean off any soot deposits by hand, using a soft brush.
- Page 19 DE LUXE GAS GRATES / INSTALLATION AND OPERATING INSTRUCTION MANUAL 22. Fault Identification / Corrective Action The following table lists typical symptoms and provides information in regard to remedial actions to be taken. Should these actions not resolve the problem then a qualified service technician must be consulted.
-
Page 20: Warranty
We would like to thank you for purchasing one of our gas fireplaces. Jetmaster warrants that the burner and controls of the gas grate will be free from defects in workmanship or materials under normal use and service for a period of one year from the invoice date of purchase.
