IQ IQSpeakerphone S330 Quick Manual

IQSpeakerphone S330
Packing List
Speakerphone USB Cable
4-Strand 3.5MM Power adapter
Cable
Optional Accessories
4P4C Cable x Expansion microphone
3pcs (up to 2pcs)
Installation
To ensure normal the use of a speakerphone, please do not install the speakerphone at
the following locations:
Quick Guide
Installation steps

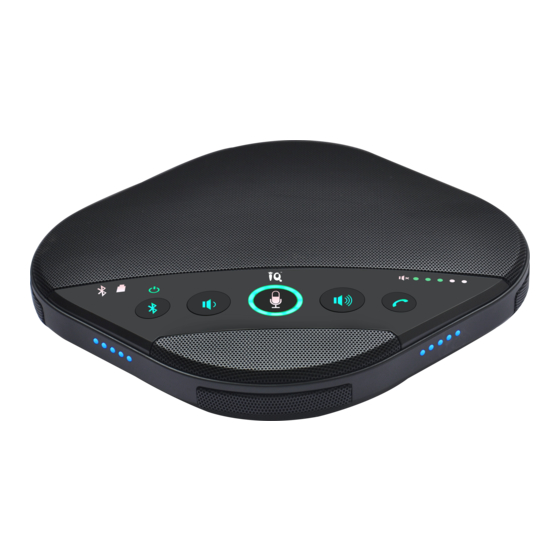

Product Overview
User manual
Where there is high noise, the speakerphone may pick up the noise, and when you
talking, it will prevent the speakerphone to enter the receiving mode.
The surface of the speakerphone will be scratched by vibration.
Do not place items within 60 cm of the speakerphone.
Please use the power adapter provided by the product to avoid accidents.
If you need to talk over a USB cable, connect one end of the USB cable to the USB
port of the device and the other end to the USB port of the speakerphone.
If you need a LINE IN/LINE OUT to call, please connect one end of the 3.5mm analog
audio LINE to the LINE IN/LINE out port of the video conferencing terminal and the other
end connect to the IN/OUT port of the speakerphone.
When choosing to install two expansion microphone, use the expansion microphone
connector to connect the speakerphone EXT1, EXT2 port.
expansion microphone
port 2
Line in/out port
expansion microphone
port 1
Press the Volume down/up button, The Status LED
Volume button
shows the current volume
/
Short press to Turn on/off Bluetooth, long press 3
Bluetooth button
seconds to turn the power on/off
Answer/End calls
Press the Answer/End calls button
Turn on/off Mute Microphone button
Mute Microphone
Press the volume up button and microphone
+ mute button at the same time for 4 seconds to
PC Mode
enter PC mode and the working status light will
flash green three times
Press the volume down button and microphone
mute button at the same time for 4 seconds to
+
Mobile Mode
enter the mobile mode and the working status
light will flash green two times
Press the answer/end calls button and
microphone mute button at the same time for
4 seconds to enter/exit echo cancellation mode,
Echo cancellation
+
enter the echo cancellation mode the blue light
Mode
of the working status lamp will flash blue three
times and exit flashes two times
LED Status indicator
USB port(power supply)
DIN6 Cable port
(connect to Hub)
