IQ S500 Quick Manual

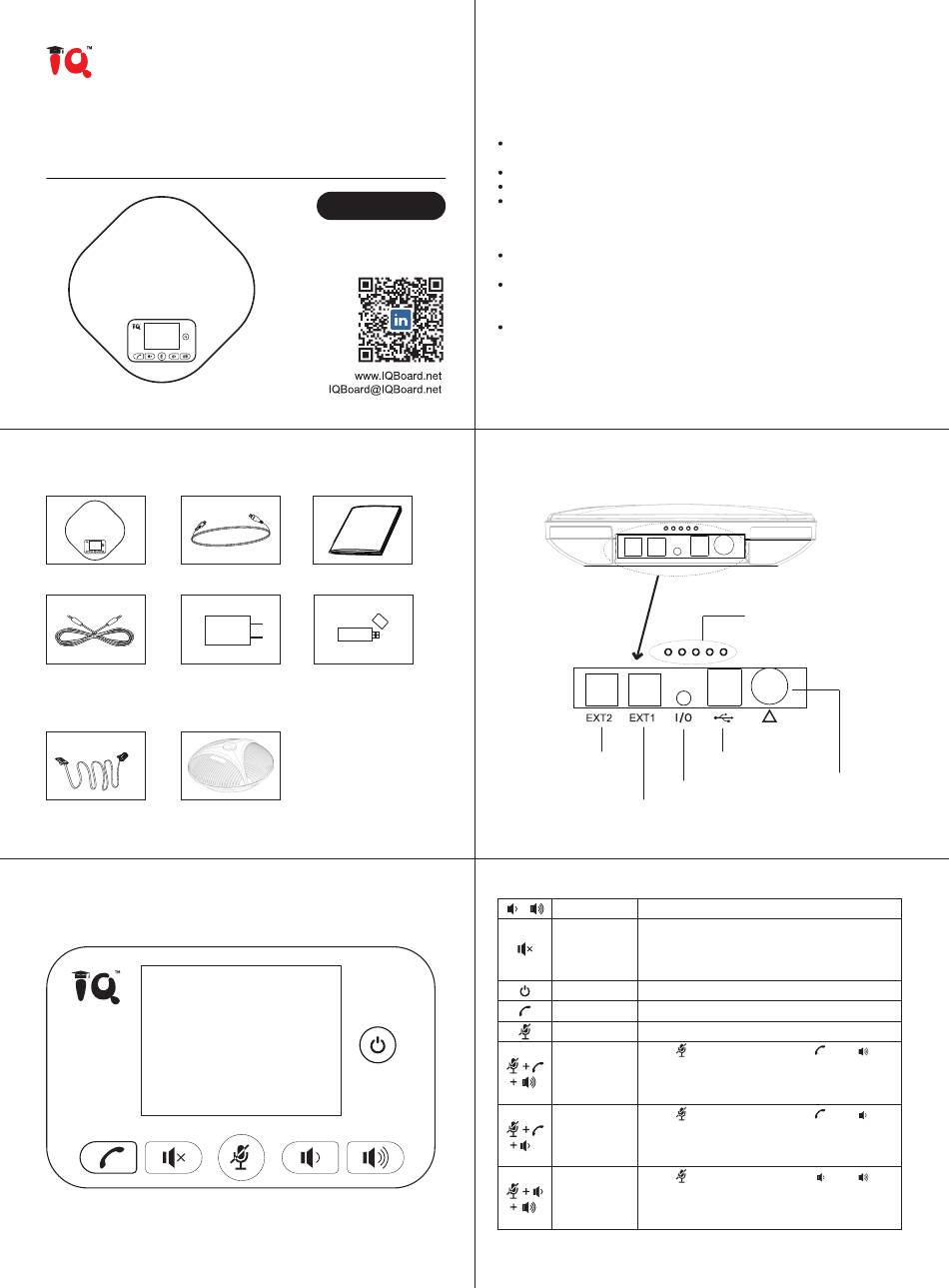

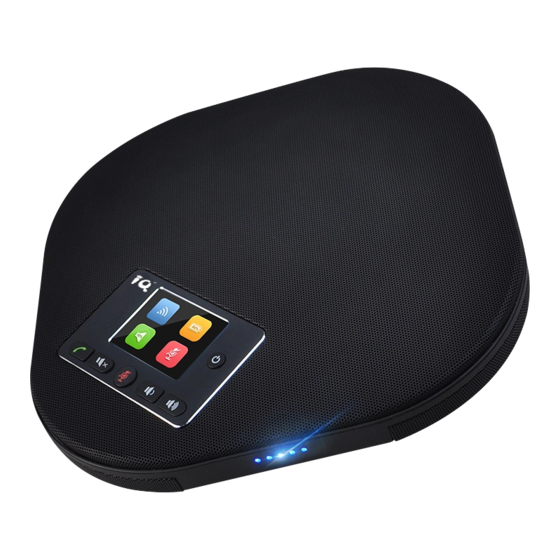

IQSpeakerphone S500

Packing List

Speakerphone USB Cable
Headphone cable Power adapter
Optional Accessories
4P4C Cable Expansion Microphone
(2.5M) (up to 2pcs)

Keypad

Quick Guide
Quick Guide
Wireless adapter

Installation

To ensure normal the use of a speakerphone, please do not install the speakerphone at
the following locations:
Where there is high noise, the speakerphone may pick up the noise, and when you
talking, it will prevent the speakerphone to enter the receiving mode.
The surface of the speakerphone will be scratched by vibration.
Do not place items within 60 cm of the speakerphone.
Please use the power adapter provided by the product to avoid accidents.
Installation steps
If you need to talk over a USB cable, connect one end of the USB cable to the USB
port of the device and the other end to the USB port of the speakerphone.
If you need a LINE IN/LINE OUT to call, please connect one end of the 3.5mm analog
audio LINE to the LINE IN/LINE out port of the video conferencing terminal and the
other end connect to the IN/OUT port of the speakerphone.
When choosing to install two expansion microphone, use the expansion microphone
connector to connect the speakerphone EXT1, EXT2 port.

Product Overview

expansion microphone
port 2
Line in/out port
expansion microphone
port 1
Volume Button Press the Volume down/up button
Short press this button to turn on/off the mute speaker,
long press this button for 5 seconds, the working status
Speaker Mute
indicator blue light flashes three times, indicating
entering/exiting AUX mode (default AUX mode is off)
Turn on/off Long press this button for 3 seconds
Answer/ End calls Press the Answer/End calls button
Mute Microphone Turn on/off Mute Microphone button
Press "
the same time to enter the PC mode, exit the mobile
PC Mode
phone mode, and the working status light flashes blue
three times
Press "
the same time to enter the mobile phone mode, exit
Mobile Mode
the PC mode, and the working status light flashes blue
three times
Press "
Echo Cancellation the same time to enter/exit the echo cancellation
Mode mode, and the working status light flashes blue three
times
Led Status Indicator
USB port(power supply)
DIN6 Cable port
(connect to Hub)
" for 5 seconds, then press " " and "
" for 5 seconds, then press " " and "
" for 5 seconds, then press " " and "
" at
" at
" at
