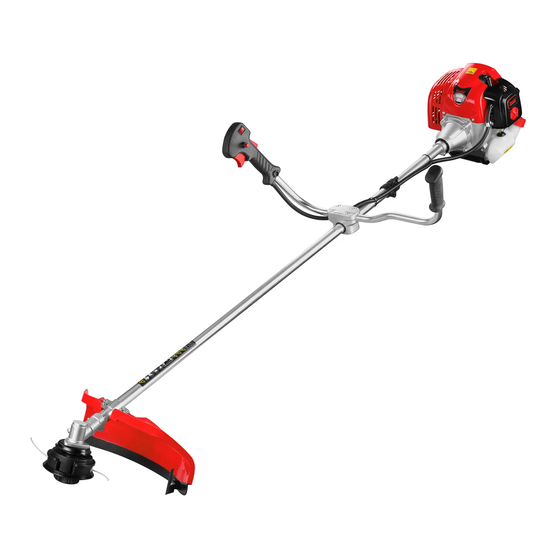

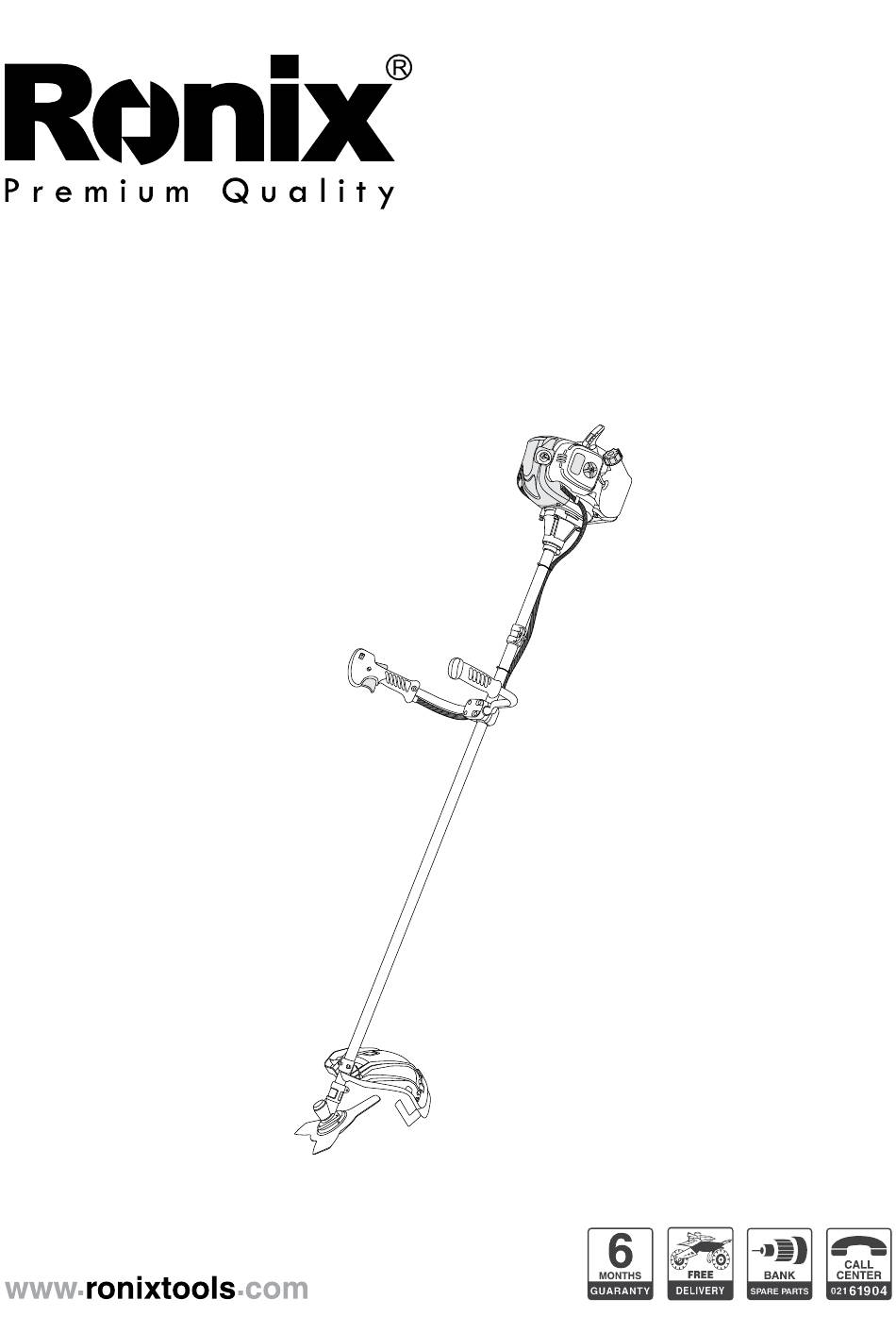

- Page 1 GASOLINE BRUSH CUTTER 4554...
-
Page 2: Specifications
SPECIFICATIONS Engine model 1E44F-5 Engine power 51.7cc Rated output power 1.35kw/7500rpm Carburetor Diaphragm type Ignition Shaft diameter 26mm Shaft type whole shaft Transmission shaft 9 teeth Fuel tank capacity 900ml Gross Weight 10.5 Kgs Net weight 9.5 Kgs Double shoulder harness, Accessories Trimmer head, 3T blade, Tools kit bag, Mix pot... -
Page 3: Intended Use
INTENDED USE This production is only used for cutting grass, bush, arbore scent shrub and clumps. Any other of use the brush cutter unmentioned in this manual could involve danger for your personal NOTE: Before using this product, please read this manual carefully to understand the proper use of your unit. - Page 4 Check the condition of working area to avoid any accident by hitting hidden obstacles such as stumps, stones, cans, or broken glass Beware of blade thrust Beware of thrown objects Keep bystanders at least 15m away from the operating person Do not use saw blades! Never modify the cutter in any way.
-
Page 5: Safety Rules & Precautions
NOTICE Indicates a situation that could result in damage to the product SAFETY RULES & PRECAUTIONS Proper safety precautions must be observed. Like all power equipment this unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation. - Page 6 These guards must always be fixed when operating the machine. Check these guards before each use. If any damage (crack, break, etc.) on the guard, contact with your dealer for replacing it. If use of non-conformant replacement guards, or remove or modify these guards could result in serious injury to the operator or bystanders.
- Page 7 is in use. - Do not use this type of machine for sweeping away debris. - Do not use the unit when you are tired, ill or under the influence of medication, drugs or alcohol. - Use nylon cutting head which is free of damage. If a stone or any other obstacle is hit, stop the engine and check the nylon cutting head.
- Page 8 - Be careful not to hit the nylon cutting head against stones, or the ground. Unreasonable rough operation will shorten the life of the machine as well as create an unsafe environment for yourself and those around you. - Pay attention to loosening and overheating of parts. If there is any abnormality of the machine, stop operation immediately and check the machine carefully.
-
Page 9: Assembly Instruction
the minimum exposure which might trigger the ailment is unknown. Keep your body warm, especially the head, neck, feet, ankles, hands and wrists. Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks and also by not smoking. Limit the hours of operation. - Page 10 Refer to the pic 1~3, loose and take off the 4 screw and the upper clamp, Install the handle in to the middle clamp, then locked the screw INSTALLING PLASTIC GUARD 1, Move the 2 screw from the guard 2, Aim at the thread hole with the clamp and guard 3, Tighten the screw Guard Clamp...
-
Page 11: Warning And Caution
USE THE DOUBLE-SHOULDER HARNESS INSTALL THE HARNESS Put the harness on your shoulders and position the snap joint on front of your waist and connect the snap joint. SPREAD THE LOAD ON YOUR SHOULDERS Tension the side straps so that the weight is evenly distributed across both shoulders. -
Page 12: Rules For Safe Operation
RULES FOR SAFE OPERATION WARNING! All models trimmers and brush cutters can throw small stone, metal or small objects as well as the material being cut. Read these “Rules for Safe Operation” with care. Follow the instructions in your operator’s manual. Read the operator’s manual carefully. -
Page 13: Cutting With A Nylon Head
DANGER ZONE: NO PERSON EXCEPT OPERATOR ALLOWED 15 METERS RADIUS DANGER ZONE. EYE, EAR, FACE, FOOT, LEG AND BODY PROTECTION MUST BE WORN BY OPERATOR. PERSONS IN ZONE OR RISK BEYOND DANGER ZONE SHOULD WEAR EYE PROTECTION AGAINST THROWN OBJECTS. RISK DIMINISHES WITH DISTANCE FROM DANGER ZONE. - Page 14 your nylon line cutting head only with nylon trimmer line of the proper diameter. WARNING! Use extreme caution when operating over bare spots and gravel, because the line can throw small rock particles at high speeds. Debris shields on the unit cannot stop objects which bounce or ricochet off hard surfaces.
-
Page 15: Cutting With A Blade
SCALPING AND EDGING Both of these are done with the line head tilted at a steep. Edging is trimming the grass back where it has spread over a sidewalk or drive way. During both edging and scalping, hold the unit a steep angle and in a position where the debris, and any dislodging dirt and stones, will not come back towards you even if it ricochets off the hard surface. -
Page 16: Fuel & Oil Mixture
if you scythe in both directions. Cut only with the side of the blade that the debris is moving away from you. If kickback occurs, the blade may be dull, the material so thick and hard that you should use other tool instead of this machine. Do not force the blade to cut. -
Page 17: Storing Fuel
IMPORTANT Two-stroke fuel may separate. Shake fuel container thoroughly before each use. Stored fuel ages. Do not mix more fuel than you expect to use within a month. GASOLINE Use branded 89 octane or higher unleaded gasoline known to be of good quality. -
Page 18: Check Points Before Operation
4. Do not add fuel to this unit close to an open fire or sparks. 5. Be sure to wipe off spilled fuel before attempting to start engine 6. Do not attempt to refuel a hot engine CHECK POINTS BEFORE OPERATION 1. -
Page 19: Maintenance And Care
until fuel comes into the primer pump. 10X 2. Pull choke lever up to close choke. 3. Pull starter handle until engine flash fires. Push choke lever down to open choke (excessive cranking with choke lever will cause flooding engine making it difficult to start). Pull starter handle until engine starts. -
Page 20: Troubleshooting
FUEL FILTER - Fuel tank is fitted with a filter. Filter is situated at the free end of fuel pipe and can be picked out through fuel port with a piece of hooked wire or the like. - Check the fuel filter periodically. Do not allow dust to enter into fuel tank. - Page 21 EXTENDED STORAGE - Inspect, clean and repair unit if necessary. - Remove all fuel from tank. - Start engine-This will consume all fuel in fuel line and carburetor. - Remove spark plug and pour one tea spoon of clean motor oil into spark plug hole of cylinder-replace spark plug.
-
Page 22: Troubleshooting Guide
TROUBLESHOOTING GUIDE FAILURE TO START Symptom Probable Cause Remedy fuel system these is no fuel in Add fuel in tank abnormality tank fuel filter obstruct Clean fuel filter spark instead fuel plug fuel is too dirty there fuel tear down spark spark is water in fuel there system... -
Page 23: Low Output
LOW OUTPUT symptom probable cause remedy fuel filter obstruct, clean fuel filter clean fuel flameout when speedup fall short of fuel road the smoke is thin, muffler fouled with oily adjust carburetor carburetor spout backward deposits clean the oily deposits compress press is short- piston piston ring replace piston piston ring... - Page 24 THE ENGINE SUDDENLY STOPPED probable cause remedy fuel is used up add fuel spark plug fouled with oily deposits and short clean the oily deposits circuit connect high voltage wire fall off USER MANUAL...
