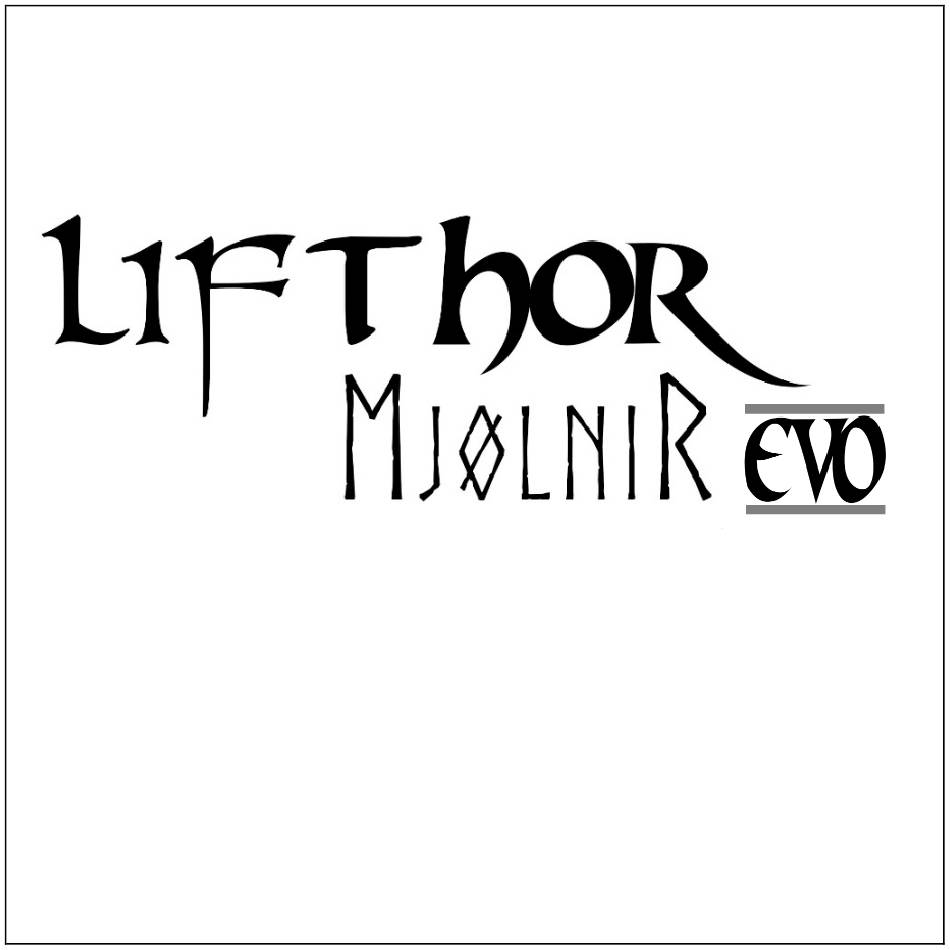

- Page 1 by Thor’s Drone World User’s Manual...
- Page 2 Congratulations on your new the Ultimate Tablet holder for Autel EVO 1 & 2...
- Page 3 Content: Tablet clamp Compatible with 7.9” up to 13” devices Aluminum body Thumb Screws (x2) Aluminum Support plate ball joint Hex Key (x2)
-
Page 4: How To Assemble
How to assemble: Remove the components from the box, use the bigger hex key provided to unscrew the ball joint from the box inlay. Using the bigger Hex key provided, secure the ball joint on the top hole of the aluminum body. - Page 5 With the smaller hex key provided, unscrew the aluminum stopper from the underside of the body.
- Page 6 Remove the stopper completely from the main body. Stopper *Note: The body has 2 anti-slip pads to protect the RC from any scratches and keep it secure in place.
- Page 7 Attach the stopper to the RC with one of the thumb screws provided.
- Page 8 Gently lower the RC into the bay of the base with a slight inclination. PRO TIP: Open the cover for the cable input slightly before installing the RC.
- Page 9 Make sure the RC is centered and aligned properly...
- Page 10 Once everything is in place, secure the stopper from underneath the body, with the small Hex Key provided.
- Page 11 Unscrew the tightening ring from the back of the Tablet Clamp and place it on the ball joint tightening ring ...
- Page 12 Attach the clamp to the ball joint and screw the ring back to secure the clamp position / angle. tightening ring ...
- Page 13 The clamp has two mechanisms to ensure Ratchet part your tablet sit secure and to adjust the in place. height The first mechanism is the Lock ratchet part, to adjust to the size of your tablet. We recommend setting it a little smaller (1”...
- Page 14 Place the tablet in landscape mode by pulling the spring mechanism upwards and release it to secure the tablet in place. You can adjust the top clamp brackets, if needed, to avoid pressing on any buttons Spring mechanism *Scan the QR code with your phone for a video tutorial...
- Page 15 Compatible with most small tablets like iPad Mini or similar up to larger tablets like the iPad Pro 12.9” and everything in between...
-
Page 16: Alternative Setup
Alternative setup without support plate with support plate... - Page 17 Installation of support plate Start by connecting the cable to the RC Thread the cable through the top of the hole from the support plate Secure the support plate to the main body with the thumb screw provided...
- Page 18 Integrated tripod mounting point located underneath the main body...
-
Page 19: Separately Sold Accessories
Separately sold accessories: Exchangeable phone clamp Mounting bracket for 4Hawks antenna Mounting bracket for CrystalSky Monitor... - Page 20 www.lifthor.com...
