Breville Dual Boiler BES920 Instruction Book

Hide thumbs Also See for Dual Boiler BES920:

Advertisement

Quick Links

Download this manual
BES920_USC_IB_R20_FA.indd 1
BES920_USC_IB_R20_FA.indd 1
Dual Boiler
the
Instruction Book - BES920
™
21/5/20 9:40 am
21/5/20 9:40 am

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dual Boiler BES920 and is the answer not in the manual?

Questions and answers

Related Manuals for Breville Dual Boiler BES920

Summary of Contents for Breville Dual Boiler BES920

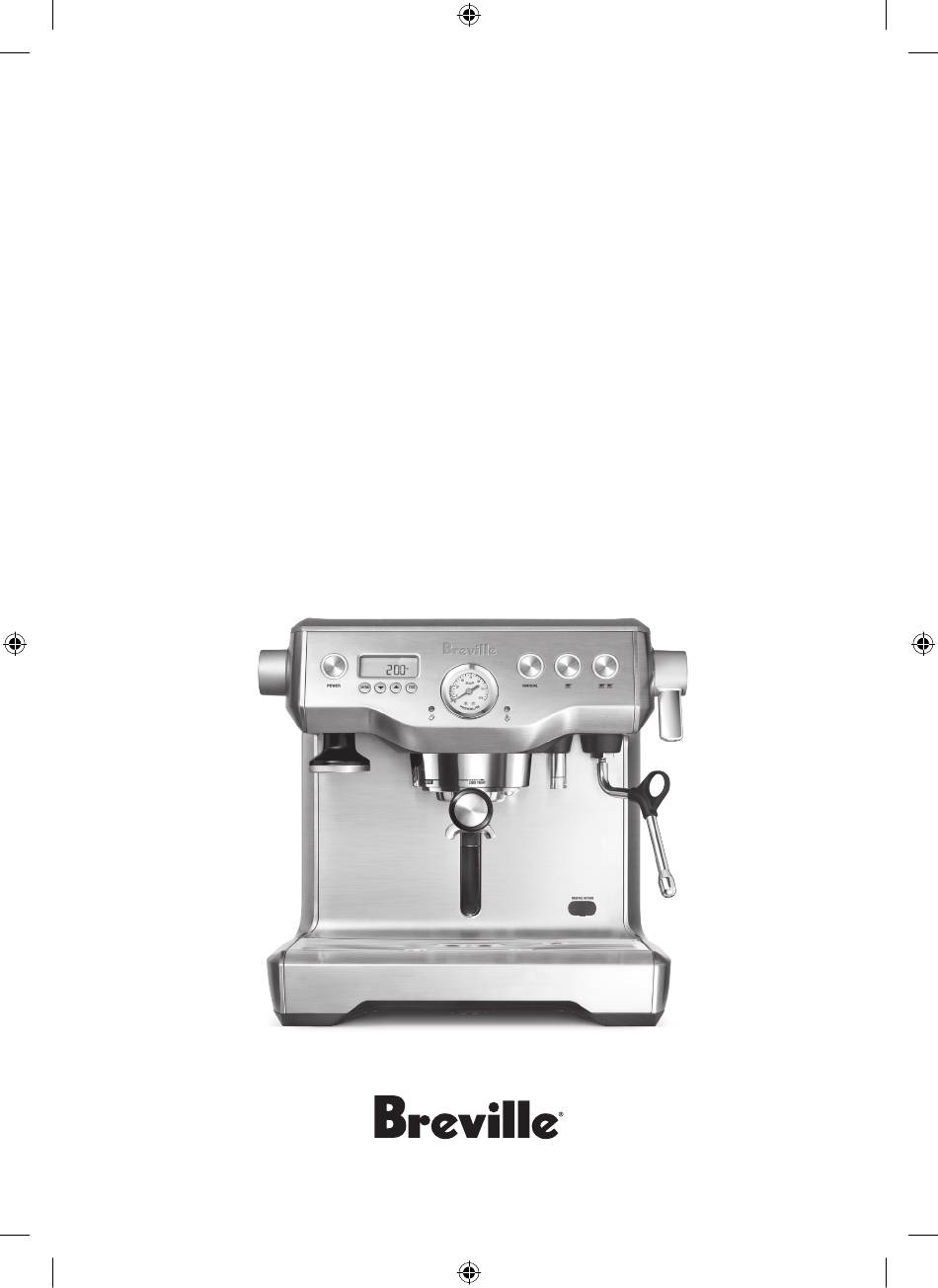

  • Page 1 Dual Boiler ™ Instruction Book - BES920 BES920_USC_IB_R20_FA.indd 1 BES920_USC_IB_R20_FA.indd 1 21/5/20 9:40 am 21/5/20 9:40 am...

  • Page 2: Table Of Contents

    RECOMMENDS • Close supervision is necessary SAFETY FIRST when any appliance is used by or near children. At Breville we are very safety • If the appliance is to be: conscious. We design and − left unattended manufacture consumer − cleaned products with the safety of you, −...
  • Page 3 • The use of accessory about your appliance including attachments not recommended the frequency of use of the by Breville may result in appliance and the manner fire, electric shock or injury in which your appliance to persons.
  • Page 4 SHORT CORD a properly grounded and INSTRUCTIONS dedicated circuit, separate from Your Breville appliance is other electrical appliances. fitted with a short power cord • Use only cold water in the to reduce personal injury or water tank.
  • Page 5 CSA DUTY CYCLE SPECIFIC MARKING: INSTRUCTIONS FOR WATER FILTER The Canadian Standards Authority requires any • Filter cartridge should be kept appliances capable of drawing out of reach of children. over 1500W to be marked with • Store filter cartridges in a dry a ‘duty cycle’...

  • Page 6: Features

    Features ADDITIONAL FEATURES TRIPLE HEAT SYSTEM Dual Stainless-Steel Boilers Backlit LCD Dedicated espresso and steam boilers for Displays current settings and simplifies simultaneous milk texturing and espresso programming functions. extraction at the optimum temperature. High Volume Instant Steam Actively Heated Group Head Dedicated 32 fl.oz (950ml) steam boiler Commercial 58mm group head with delivers instant and continuous steam.

  • Page 7: Components

    Components KNOW YOUR BREVILLE PRODUCT J. Heated cup warming tray A. Top-fill 84 fl.oz (2.5L) removable water tank With integrated water filter and backlit K. 1 CUP, 2 CUP and MANUAL buttons level indicator. With preset shot durations, manual override or reprogrammable B.
  • Page 8 ACCESSORIES A. Stainless steel milk jug B. Water filter holder with filter C. 1 CUP & 2 CUP single wall filter baskets D. 1 CUP & 2 CUP dual wall filter baskets E. Cleaning disc F. The Razor™ precision dose trimming tool G.

  • Page 9: Operation

    Replacing the water filter after three months or 10.6 USgal / 40L will reduce the need to descale the machine. Filters can be purchased at Breville webpage. NOTE DO NOT use highly filtered, demineralized or distilled water in this machine. This may affect the taste of the coffee.
  • Page 10 FIRST USE 6. After approximately 10 minutes, the machine will reach the default operating 1. Ensure tank is filled with cold water. temperature (200˚F/93˚C) and all 4 You can do this by either opening the buttons will illuminate. The machine is now top-fill water tank lid (push to open), or in STANDBY mode, ready for the next step, by removing the water tank at the back...
  • Page 11 POWER SAVE MODE 3. Clock Displays current time. The default is 12:00AM The machine will enter POWER SAVE mode if the time has not been set. See ‘Set Clock’, after remaining idle for 1 hour and turn off page 14. completely if not used for a continuous 4-hour period.
  • Page 12 2 CUP BUTTON STEAM Press 2 CUP button once to extract a double For instant steam, move STEAM LEVER to shot of espresso at the preset duration (30 OPEN position. The STEAM LED will illuminate. seconds). The extraction will start using the low-pressure pre-infusion.
  • Page 13 PROGRAMMABLE FUNCTIONS Reprogramming 1 CUP button To enter program mode, press the MENU button. Continue to press MENU button until the desired function is flashing on the LCD. Program mode allows you to program: • Shot Volume • Shot Temperature •...
  • Page 14 EXTRACTION TEMPERATURE SET CLOCK Press MENU button until ‘SHOT TEMP’ Setting the clock is optional. Press MENU flashes. The LCD will display the current button until ‘SET CLOCK’ flashes. The default shot temperature. is 12.00AM if time has not been set. Press UP or DOWN arrow to adjust the time.
  • Page 15 Press UP or DOWN arrow to set the AUTO ADVANCED FEATURES START to ON or OFF. These features should only be accessed by experienced users. To access Advanced Features, with the machine turned off, press and hold the 1 CUP button, then also press the POWER button.
  • Page 16 While ‘rSEt’ is displayed on the LCD, press Temperature Unit - ˚C/˚F (SEt) the MENU button to reset all settings to factory defaults. Machine will beep to confirm selection. Set units to metric or imperial. While ‘SEt’ is displayed on the LCD, press MENU button. Press UP or DOWN arrow to the desired unit.
  • Page 17 Machine Audio (Snd) Pre-Infusion Duration (Pd) The LCD will display the current Pre-Infusion Duration. Press UP or DOWN arrow to vary time. Adjust the audible alerts. While ‘Snd’ is displayed on the LCD, press MENU button. Press UP or DOWN arrow to off (OFF), low(LO) or high (HI).
  • Page 18 HOT WATER LED flashing during heat-up New Filter The machine will not reach operating Indicates when the water filter in the water temperature (STANDBY mode) if the HOT tank needs to be replaced. For information WATER dial is in the OPEN position. The on changing the filter, refer to ‘Replacing the HOT WATER LED will flash.

  • Page 19: Coffee Making Tips & Preparation

    Coffee Making Tips & Preparation 1 CUP 2 CUP PRE-HEATING Dual Wall Filter Baskets Heating your cup or glass Use Dual Wall filter baskets if using pre-ground A warm cup will help maintain the coffee’s coffee. Dual Wall filter baskets regulate the optimal temperature.
  • Page 20 when under pressure. The resulting espresso will be OVER-EXTRACTED, dark in color and Razor bitter in flavor. ™ Precision dose trimming tool If the grind is too coarse the water will flow through the ground coffee in the filter basket too quickly.

This manual is also suitable for:

Dual boiler bes920xl
