- Page 1 User Manual EZ-MX42HS 4K@60 4:4:4 8bit Scaler Output Dolby Vision Dolby Atmos EZCOO - It’s easy, Just cool...
-
Page 2: Packing List

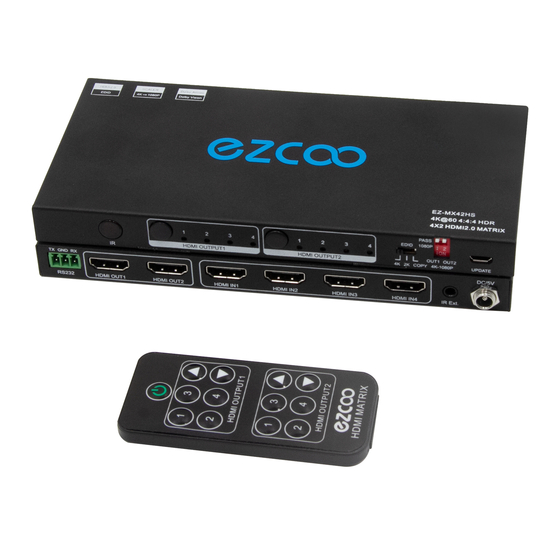

OVERVIEW This Matrix 4x2 is 4 IN 2 OUT HDMI Matrix with Ultra HD up to 4K@60Hz 4:4:4 8bit HDR and HDCP2.2,support Dolby vision and Dolby atmos.It reliably distributes four HDMI source signal to two HDMI display devices, ideally use for offices,school,conference rooms,shopping malls,hotels and museums, which require to distribute and switch multiple HDMI source signal to two HDMI display devices. - Page 3 INSTALLATION and INSTRUCTION Connect one cable from HDMI source devices to each HDMI input. Connect one cable from each display (monitor or projector) to the HDMI outputs. Both HDMI OUT ports support downscaler 4K to 1080P, you have to implement it via the EDID switch or the scaler switch on the front panel.
-
Page 4: Edid Setting
EDID SETTING Switch setting Function Set EDID: 4K@60Hz_4:4:4_Dolby vision_Dolby Atmos_7.1CH_3D-HDR Set EDID: 1080P@60Hz_2CH_3D_HDR Learning EDID from HDMIOUT 1 Note: Other options about EDID setting, please kindly use the API commonds(Refer to the last section API Commands list). SCALER SETTING Switch setting Function Switch setting Function... -
Page 5: Remote Control
REMOTE CONTROL The remote control can be used to turn on and off the matrix and switch the HDMI source for each output. Note ： • Please remove the insulation slice before use. • Please make sure the remote is pointed directly at the IR receiver windown. -
Page 6: Update Guide
Cable 1080P HDMI Cable Length 8-bit 12-bit 8-bit Input 49.2 ft (15m) 32.8ft (10m) 9.8ft (3m) Output 49.2 ft (15m) 32.8ft (10m) 16.4ft (5m) UPDATE GUIDE How to use the Micro-USB on the front panel.We can control the matrix and upgrade the matrix via this port.Please find a Micro-USB cable, connect to the USB port on the front panel to your windows PC(Laptop/Desktop).It will install the driver aromatically when the matrix connected, please wait for a minute. - Page 7 After you sent this command, you will see <JUMP TO ISP MODE...>, and then click <Close> All LEDs on the matrix will be off. NOTE: DO NOT remove any connection on the matrix at this time. Running < STM Flash Loader Demo> Select correct port and click <next>...
- Page 8 5. Finish and repower the matrix.
- Page 9 API Command via USB port/RS232 port The configuration steps are the same as UPGRADE section. Send “EZH” to get all API commands. List of API Commands Command Function Get help, show all the commands EZS RST Reset to Factory Defaults EZS CAS EN Set Cascade Mode Enable (HDCP) EZS CAS DIS...
- Page 10 Example When you want to set EDID as 4K@60Hz 7.1CH, please send a command "EZS IN0 EDID15" as follows.
- Page 11 CONTACTS When you need any technical assistance, please send e-mail to ezcoousa@hotmail.com NOTES Please use this machine based on below instructions to keep longer lifetime. 1. The machine should be placed at the spot far away from the Damp, High-Temperature, Dusty, Erosive, and Oxidant environment. 2.
