- Page 1 User Manual 4x2 HDMI 2.0 Matrix Optical audio output 4K@60 4:4:4 8bit Scaler output EZCOO - It’s easy, Just cool...
-
Page 2: Packing List

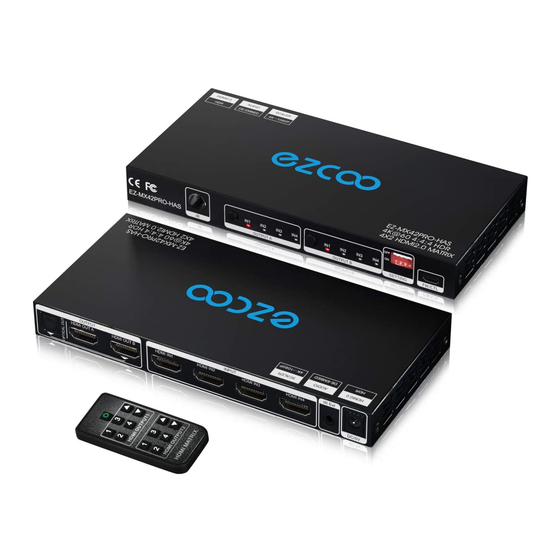

OVERVIEW This EZ-MX42PRO-HAS is a 4 in 2 out HDMI Matrix with Ultra HD up to 4k60 4:4:4 8bit HDR and HDCP2.2. It reliably distributes four HDMI source signal to two HDMI displays. It is ideal for applications such as Home theatre, offices, school, conference rooms, shopping malls, hotels and museums, which require manage multiple sources and distribute an HDMI source signal to multiple displays. -
Page 3: Installation
INSTALLATION Connect one cable from HDMI source devices to HDMI input. Connect one cable from each display (monitor or projector) to the HDMI outputs. In this case, when the HDMI sources are 4K, it will support all the 4K displays. In this case, when you use 4K HDMI sources, but one 1080P diaplay, please set the EDID DIP switch as the above picture( HDMIOUT A downscaler from 4K to 1080P). -
Page 4: Edid Setting
EDID SETTING DIP switch setting Function DIP switch setting Function Pass through- learning Test Mode - Improve EDID from HDMIOUT B. compatibility. Set EDID: HDMI OUT A downscaler 4K@60Hz_4:2:0_5.1CH from 4K to 1080P. _3D_HDR Set EDID: Set EDID: 1080P@60Hz_2CH 4K@60Hz_4:4:4_5.1CH _3D_HDR _3D_HDR Note: Other options about EDID setting, please kindly use the API... -
Page 5: Troubleshooting
TROUBLE SHOOTING • Please connect 4K TV to HDMI Matrix OUT 2 (B) firstly; after 4K TV display well, please connect the second display device to HDMI Matrix OUT 1 (A). • Please connect 1080p HDMI display to matrix OUT 1(A), especially when 4K & 1080p TV work together. -
Page 6: Specification
SPECIFICATION General HDMI vertion HDMI 2.0 HDCP version HDCP 2.2 HDMI 24/50/60fs/4K*2K/1080p 24bit/30bit, Video format resolution /1080i/720p/576p/576i/480p/480i 36bit deep color DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/ Audio format Dolby Atoms Input/Output 0.5~1.5Volts p-p(TTL) 600MHz TMDS signal bandwidth Input/Output Max working 5Volts p-p (TTL) 200mA DDC signal current Power adapter Input: AC (50HZ, 60HZ):100V-... -
Page 7: Update Guide
UPDATE GUIDE How to use the Micro-USB on the front panel. We can control the matrix and upgrade the matrix via this port. Please find a Micro-USB cable, connect to the USB port on the front panel to your windows PC(Laptop/Desktop). It will install the driver aromatically when the matrix connected, please wait for a minute. - Page 8 Then, double click the FlyMcu.exe, Following as below order: 1. Search the port 2. Select 57600 bps 3. Load the .hex file 4. Start to ISP (update)
- Page 9 API Command via USB port The configuration steps are the same as UPGRADE section. Send “EZH” to get all API commands. List of API Commands Command Function Get help, show all the commands EZS RST Reset to Factory Defaults EZS CAS EN Set Cascade Mode Enable (HDCP) EZS CAS DIS Set Cascade Mode Disable (HDCP)
- Page 10 Example When you want to set EDID as 4K@60Hz 7.1CH, please send a command "EZS IN0 EDID15" as follows.
- Page 11 EZCOO TECHNOLOGY INC. assumes no responsibility for any inaccuracies that may be contained in this document. EZCOO TECHNOLOGY INC. also makes no commitment to update or to keep current the information contained in this document.
- Page 12 EZCOO - It’s easy, Just cool...
