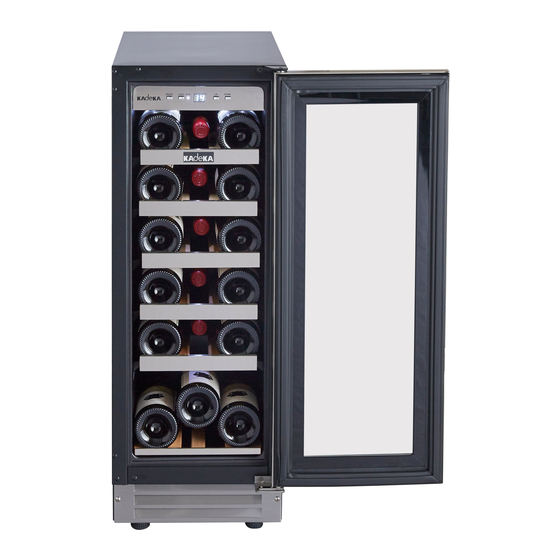

Kadeka KA24WR Instruction Manual
Hide thumbs Also See for KA24WR:

Advertisement

Wine Chiller
INSTRUCTION MANUAL
Model Number:
KA24WR / KW39WR / KA45WR
KA110WR / KSJ168EW / KA165T / KA143T
KA24WR KA39WR
KA45WR
KA110WR
KSJ168EW
KA165T
KA143T
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KA24WR and is the answer not in the manual?

Questions and answers

Summary of Contents for Kadeka KA24WR

  • Page 1 Wine Chiller INSTRUCTION MANUAL Model Number: KA24WR / KW39WR / KA45WR KA110WR / KSJ168EW / KA165T / KA143T KA24WR KA39WR KA45WR KA110WR KSJ168EW KA165T KA143T BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
  • Page 2 PARTS & FEATURES KA24WR HUMIDOR 2. DOOR 3. HANDLE 4. SHELVES 5. LEVELING LEGS 6. CABINET KA39WR 1. WORKTOP 2. DIGITAL CONTROL PANEL 3. LOCK 4. HUMIDOR 5. DOOR 6. HANDLE 7. FULL SHELVES 8. ODOUR FILTER 9. HALF SHELF 10.
  • Page 3 KSJ110EW & KSJ168EW KA143T & KA165T 1. DIGITAL CONTROL PANEL 5. LEVELING LEGS 2. STAINLESS STEEL HANDLE 6. SECURITY LOCK 3. LARGE SHELVES 7. BOTTOM GRILLE 4. SMALL BOTTOM SHELF 8. CABINET...
  • Page 4: Disposal Of Old Appliances

    DISPOSAL OF OLD APPLIANCES Before disposing of an old appliance remove any plugs and power leads to ensure that the appliance is inoperative. Remove the door, but leave the shelves in place to prevent children climbing inside. This symbol on the product indicates that it must not be discarded as general household waste Instead it should be handed over to the applicable collection point for the recycling...
  • Page 5 repairs may result in a major source of danger for the user and invalidate any warranty.  Never store anything dangerous inside the appliance, such as combustibles, explosives, strong acid or alkali etc.  Always keep any ventilation openings clear of obstruction. Should they become blocked, clear them straight away.
  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS  Before Using Your Wine Chiller  Remove the exterior and interior packing.  Before connecting the Wine Chiller to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
  • Page 7: Operating Your Wine Chiller

    The range of setting temperatures may not be reached.  The controls of your Wine Chilller For KA24WR The temperature setting can be adjusted from 5°C ~18°C.  “RUN”...
  • Page 8 For KA39WR Recommended Temperatures for Chilling Wine. Red Wines: 15-18℃ (59-64 F) Dry/White Wines 9-14℃ 48-57 F) Sparkling Wines 5- 8℃ 41-46 F) The above temperatures may fluctuate depending on whether or not the interior bulb is ON or OFF or whether the bottles are located on the upper/middle or lower section.
  • Page 9 To control the inner light turn on/off.  Used to set temperature in upper zone.  Used to set temperature in lower zone.  Setting the Temperature Control  The Wine Cooler has two temperature zones. Upper zone – temperature range 5 to 12 Lower zone –...
  • Page 10 To shows the setting temperature.  Setting the Temperature Control  Set the desired cooling temperature by pressing the buttons adjacent to the “UP/DOWN” program. Each depression of the buttons will scroll through the available temperature settings in increments of 1 degree. The temperature selected will flash in the LED display for approximately 5 seconds, then revert back to display the temperature of the internal chiller Note: During periods of high humidity, some condensation may appear on outside surfaces of cooling...
  • Page 11  To view the “set” temperature. (anytime) press and hold the corresponding button for approximately 5 seconds, the “set” temperature will temporarily “flash” in the LED display for 5 seconds. Note: During periods of high humidity, some condensation may appear on outside surfaces of cooling appliances.
  • Page 12  Door Lock (not for KA24WR) Your unit is provided with a lock and key combination. The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock and turn it counterclockwise to unlock the door.
  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE  How to remove the shelf For KA24WR  To prevent damaging the door gasket, make sure to have the door all the way open when pulling shelves out of the rail compartment.  For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail compartment, however, this unit is designed with a notch on each sides of the shelf tracks to prevent bottles from falling.
  • Page 14  Cleaning Your Wine Chiller Warn ing To avoid electric shock always unplug your Wine Chiller before cleaning. Ignoring this warning may result in death or injury.  Turn off the power, unplug the appliance, and remove all items including shelves and rack. ...
  • Page 15: Problems With Your Wine Chiller

    PROBLEMS WITH YOUR WINE CHILLER? You can solve many common Wine Chiller problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the Service Centre. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE...
  • Page 16: Specifications

    Specifications Model KA24WR KA39WR KA45WR KA110WR KSJ168EW KA165T KA143T Voltage 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V 220-240V Rated 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz frequency Electric 0.45 A 0.5 A 0.6 A 0.75 A...
