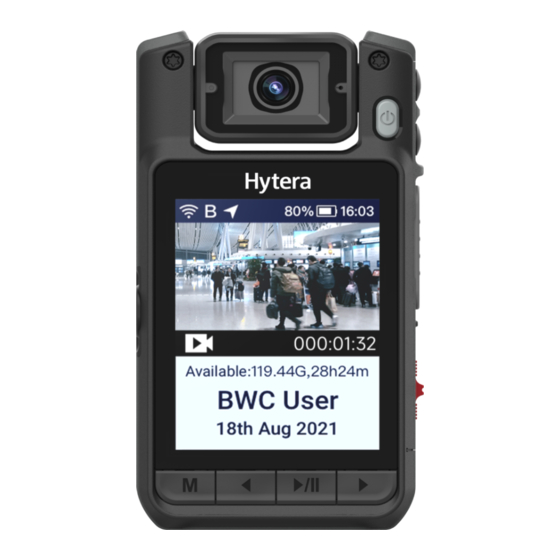

VM690 Pro Body Worn Camera
User Manual
Hytera Communications Corporation Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM690 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Hytera VM690 Pro

Summary of Contents for Hytera VM690 Pro

  • Page 1 VM690 Pro Body Worn Camera User Manual Hytera Communications Corporation Limited...
  • Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. To derive optimum performance from the product, please carefully read this manual before use. This manual is applicable to the following product: VM690 Pro Body Worn Camera...

  • Page 3: Icon Conventions

    : Indicates situations that could cause minor personal injury. Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names.
  • Page 4  2012/19/EU  2014/53/EU Please note that the above information is applicable to EU countries only.

  • Page 5: Packing List

    1. Packing List Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Item Qty. Item Qty. Body Worn Camera Battery Belt Clip USB Data Cable Documentation kit Figures in this manual are only for reference.

  • Page 6: Product Overview

    2. Product Overview 2.1 Product Layout 2.2 LCD Icons Icon Description The WLAN feature is enabled. The WLAN Hotpot feature is enabled. The Location feature is enabled. The BT feature is enabled. A BT device is connected. The available space of the TF card is lower than 8% of the total storage. The TF card is full.

  • Page 7: Led Indicator

    Icon Description Length of the bar indicates the battery power. : Low battery. : Full battery. 2.3 LED Indicator Status Description  The product is being charged.  Glows red The TF card is out of storage.  The product is being turned off. ...

  • Page 8: Before Use

    3. Before Use 3.1 Attaching the Battery To attach the battery, perform the steps shown in the following figure: To remove the battery, turn off the product, and then follow the steps in the reverse order. 3.2 Installing the Belt Clip To install the belt clip, do as shown in the following figure: To remove the belt clip, do the following: Remove the battery.

  • Page 9: Charging The Product

    3.3 Charging the Product Use only the battery approved by the Company. Polarity reverse or use of other batteries may result in explosion and fire hazards. Charge the product with the USB data cable. The LED indicator on the product tells its battery status and charging status. For details, see 2.3 LED Indicator.

  • Page 10: Basic Operations

    4. Basic Operations 4.1 Turning On the Product In power-off mode, long press the Power On/Off key. After being turned on, the product enters the preview mode. 4.2 Turning Off the Product In power-on mode and non-recoding status, long press the Power On/Off key. 4.3 Making the Basic Settings In the preview mode, long press the Menu/Playback/Back key to enter basic settings.

  • Page 11: Recording Videos

    Settings Description Brightness You can adjust the screen brightness manually. You can configure the screen-off time. If no operation is made to the product within the screen-off time, the screen will be turned off automatically.  Screen Off Press the Power On/Off key to turn off the screen, or wait for the screen-off time Screen to turn off the screen automatically.
  • Page 12 Function Description The product automatically captures the video for a preset amount of time before you Pre-event actually toggles the key downwards to start recording. This ensures you never miss anything recording important. Post-event The product automatically continues recording for a preset amount of time after the recording recording is manually stopped.

  • Page 13: Recording Audios

    4.5 Recording Audios Prerequisites Before audio recording, you can enable the AES256 encryption through the BWC Manager. Procedure In the preview mode, press Programmable Key A to start audio recording. To finish the recording, press Programmable Key A. 4.6 Taking Photos Prerequisites Before photo taking, you can set the parameters or functions such as photo resolution, photo quality, watermark, and AES256 encryption through the BWC Manager.

  • Page 14: Adjusting The Volume

    Press the Left or Right key to select from numbers, special characters, or uppercase or lowercase letters, and then press the Play/Pause/Confirm key. If you enter the incorrect password, do either of the following:  To delete the last number, special character, or letter, press the Menu/Playback/Back key. ...
  • Page 15 4.10 Transmitting the Voice Prerequisites You have connected the product to a portable radio through the USB data cable. Procedure Press and hold the PTT key, and then speak into the microphone. After speaking, release the PTT key.

  • Page 16: Data Collection

    5. Data Collection You can collect the data such as videos, photos, and audios from the product by any of the following:  Though the app installed on the smartphone. You can connect the product to the smartphone through the WLAN Direct.

  • Page 17: Troubleshooting

    6. Troubleshooting Phenomena Analysis Solution The battery may be improperly Remove the battery, and then attach it attached. again. The product cannot be turned The battery may run out. Charge or replace the battery. The battery contacts may be dirtied or damaged, leading to a Clean the battery contacts.
  • Page 18 Phenomena Analysis Solution photos cannot be viewed by video and photo files are normal applications. encrypted. The product cannot make Enable the feature through the BWC pre-event recording or This feature is not enabled. Manager. post-event recording. The product gives no alert tone; the indicator does not light up;...

  • Page 19: Care And Cleaning

    7. Care and Cleaning To guarantee optimum performance as well as a long service life of the product, please follow the tips below. Product Care  Do not pierce or scrape the product.  Keep the product away from substances that can corrode the circuitry. Product Cleaning ...

  • Page 20: Optional Accessories

    8. Optional Accessories Use the accessories specified by the Company only; otherwise, we shall not be liable for any losses or damages arising out of the use of any unauthorized accessories. Contact your local dealer for the optional accessories of the product.

  • Page 21: Appendix-Product Specifications

    9. Appendix—Product Specifications Item Description WLAN 2.4G 2412– 2462MH – 5725 MH –5250 MHz –5350 MHz FCC:5150 ,5250 ,5470 5725–5850 MHz Frequency range WLAN 5G – 5600MH –5250MHz –5350MHz ,5250 ,5470 IC:5150 5650–5725MHz, 5725–5850MHz – 2402 2480 MHz WLAN 2.4G 21.80dBm(802.11b/g/n) (tolerance: ±...
  • Page 22 Hytera Communications Corporation Limited. © 2021 Hytera Communications Corporation Limited. All Rights Reserved. Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, People's Republic of China Postcode: 518057...
