Summary of Contents for VS V91 DLT
- Page 1 ZZ009161, ZZ009178 Rev. 12...
- Page 2 COPYRIGHT This document is the property of VS Security Products Ltd and it may not be reproduced, copied or exhibited to a third party without the written permission of VS Security Products Ltd.
-
Page 3: Table Of Contents
Introduction to the V91 DLT/LTO Tape Degausser Installation Operation Indicators / Features Maintenance / Service Tables Parts List This document refers to V91 DLT/LTO part no’s; ZZ009161 110-115v 60Hz ZZ009178 220v-240v 50Hz VS Security Products LTD ZZ009161, ZZ009178 Page 3 of 13... -
Page 4: Specification
WEEE directive. Registered Producer Number: WEE/JB2622WS VS Security Products reserves the right to amend or modify the specifications and design criteria applying to these products VS Security Products LTD... -
Page 5: Introduction To The V91 Dlt/Lto Tape Degausser

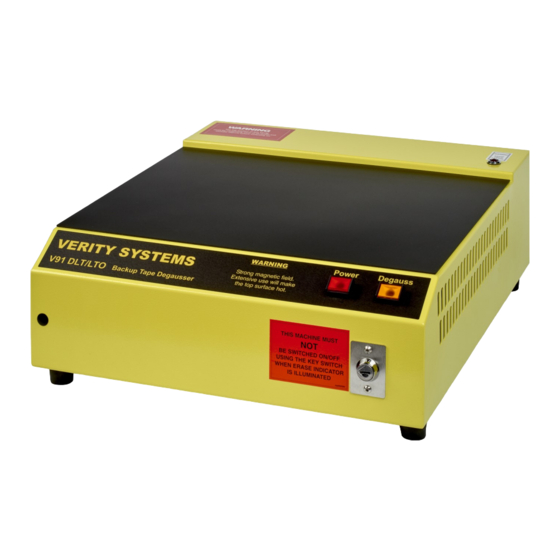

The V91 DLT/LTO bulk degausser functions like a large electro magnet, its erasing field originating as leakage flux from a large gap in the field structure, the V91 DLT/LTO structure is basically a U section. The field intensity decreases rapidly as the distance from the degausser surface increases. -
Page 6: Operation
(After initial warm up period). operating periods in excess of specified duration will result in exterior surfaces becoming very hot. 4.1 Turning on the V91 DLT/LTO The V91HD/DLT degausser has been designed for simplicity of operation in that it consists basically of a flat bed over which the cartridge is passed. -
Page 7: Indicators / Features
5.3 Overheat Protection The high energy field developed by the V91 DLT/LTO necessitates the generation of a considerable amount of heat. The degausser coil is monitored for excessively high temperatures and should this condition occur its operation will be inhibited until the coil has cooled sufficiently. -
Page 8: Tables
However the tuning capacitors and the degaussing coil are not spared items and if found be faulty the unit should be returned to VS Security Products for repair. To access the components inside the degausser the laminate cover must be removed. -
Page 9: Parts List
Security Key Switch Ind2 OI100017 Flashing Led RP200013 220 ohm Resistor RS100076 Relay Base RS100077 24v ac Relay SD100025 Rectifier Diode TX100069 Transformer CC100025 100 μf Capacitor XX003064 V91 Top VS Security Products LTD ZZ009161, ZZ009178 Page 9 of 13... - Page 10 Security Key Switch Ind2 OI100017 Flashing Led RP200013 220 ohm Resistor RS100076 Relay Base RS100077 24v ac Relay SD100025 Rectifier Diode TX100069 Transformer CC100025 1 100 μf Capacitor XX003064 V91 Top VS Security Products LTD ZZ009161, ZZ009178 Page 10 of 13...
- Page 11 8.3 Circuit Diagram (ZZ009161) VS Security Products LTD ZZ009161, ZZ009178 Page 11 of 13...
- Page 12 8.4 Circuit Diagram (ZZ009178) VS Security Products LTD ZZ009161, ZZ009178 Page 12 of 13...
- Page 13 VS SECURITY PRODUCTS LIMITED VS AND ASSOCIATES Unit 17, Pegasus Court 3160, Texas Hill Road North Lane Placerville Aldershot California GU12 4QP 95667...
