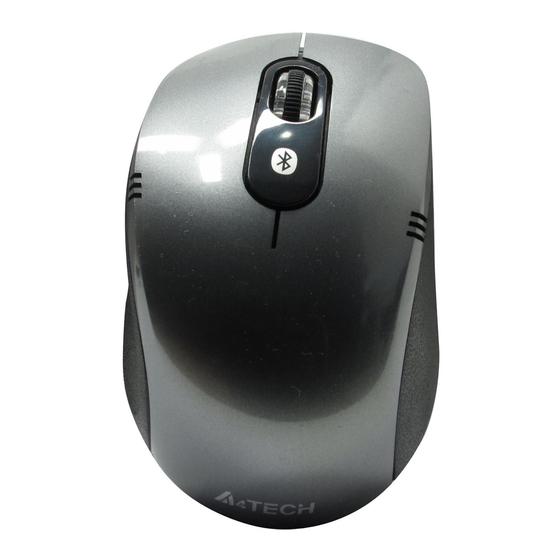

- Page 1 All manuals and user guides at all-guides.com Bluetooth Mouse User Guide Model: BT-630 www.a4tech.com...
- Page 2 All manuals and user guides at all-guides.com THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
-
Page 3: Package Contents
All manuals and user guides at all-guides.com RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: System Requirement
All manuals and user guides at all-guides.com 2. 1000DPI 3. Four stages power saving mode, low battery warning 4. 8 in Right software, innovative 4D wheel System Requirement : Windows XP/ Vista / Windows 7 Know your product — 3 —... - Page 5 All manuals and user guides at all-guides.com Back View Front View Dual-color LED Indicator Bluetooth Mouse LED Status Power On Green LED: Turn off after 1 Second Low Battery Warning Red LED: Blinking Connection Start Alternate Blink Between Red and Green Connection Complete Stop Blinking Turn On/Off Mouse...
-
Page 6: Battery Installation
All manuals and user guides at all-guides.com 1. Slide on the power switch to immediately turn on the mouse. 2. To turn off the mouse, just slide off the power switch and then LED light is off immediately. Battery Installation Open battery cover and insert the supplied AA battery. - Page 7 All manuals and user guides at all-guides.com Time elapses to enter the Status Power Consumption Way to wake up mode Stand-by 0 second 20mA Moving Slight Sleep 2 seconds 10mA Moving Middle Sleep 4 seconds 1.7mA Moving Deep Sleep 5 minutes 0.3mA Clicking Note:...
- Page 8 All manuals and user guides at all-guides.com Configuration Our Bluetooth Mouse is designed to work with Five major software standards: Microsoft, Broadcom, IVT,Toshiba, Apple. Please select the corresponding connection way according to your software standard. Bluetooth Bluetooth Bluetooth Bluetooth Bluetooth Device Support Software...
-
Page 9: Bluetooth Software: Microsoft
All manuals and user guides at all-guides.com Note ： ： ： ： Before start Bluetooth Mouse connectivity, please check whether your system has already installed Bluetooth software and whether it works. Bluetooth Software: MICROSOFT Step 1 ： Click Start, click Control Panel Step 2：In popped Bluetooth Devices (make sure you're in Classic View), and window,Click Add. - Page 10 All manuals and user guides at all-guides.com Step 3：Turn on the mouse and press the Step 4：After the device names appear,click connection button at the bottom of mouse Bluetooth Mouse, and then click Next. until the LED Indicator in the middle wheel blinks alternately in Red and Green.
-
Page 11: Bluetooth Software: Widcomm
All manuals and user guides at all-guides.com Step 5：When the wizard asks to specify a Step 6 ： Please wait while the wizard passkey, click Don't use a passkey, and completes the process of adding your Bluetooth mouse. In the final page of the then click Next. - Page 12 All manuals and user guides at all-guides.com Step 1 ： Right click on Bluetooth icon Step 2：In popped Initial Bluetooth located at system tray, then select Add a Configuration Wizard, Click Next. Bluetooth Device. Step 3 ： Turn on the mouse and press the Step 4：After the device names appear,click connection button at the bottom of mouse BlueTooth Mouse, and then click Next.
- Page 13 All manuals and user guides at all-guides.com Step 5：Please wait while the wizard completes the process of adding your Bluetooth mouse. In the final page of the wizard, click Click here. The LED Indicator in the middle wheel stops blinking, the Bluetooth mouse has successfully installed. Bluetooth Software: BLUESOLEIL Step 1：Right click on Bluetooth icon Step 2：Double click orange circle button to...
- Page 14 All manuals and user guides at all-guides.com Step 3：Turn on the mouse and press the Step 4：Right click on the mouse icon and connection button at the bottom of mouse select Connect Bluetooth Human Interface until the LED Indicator in the middle Device.
- Page 15 All manuals and user guides at all-guides.com Step 5 ： The Bluetooth mouse will automatically complete the connection. The bluetooth mouse has successfully installed while the LED Indicator in the middle wheel stops blinking. Bluetooth Software: Bluetooth Stack — 14 —...
- Page 16 All manuals and user guides at all-guides.com Step 1：Right click on Bluetooth icon Step 2：In popped Bluetooth Settings, Click located at system tray, then select Add New Connection. New Connection. Step 3：Turn on the mouse and press the Step 4：Please wait until the device names connection button at the bottom of mouse appear,click until the LED Indicator in the middle...
- Page 17 All manuals and user guides at all-guides.com Step 5 ： Please wait while the wizard Step 6：The LED Indicator in the middle completes the process of adding your wheel stops blinking after the mouse has Bluetooth mouse. The mouse doesn’t successfully installed.
- Page 18 All manuals and user guides at all-guides.com Step 1：Right click on Bluetooth icon Step 2：Follow on-screen instructions to located at system tray, then select Set up continue setup. Select Mouse when below window appears. Bluetooth Device. Step 3：Turn on the mouse and press the Step 4 ：...
-
Page 19: Software Installation
5. To launch the software, double click the icon on your desktop or go to Start— Programs—A4tech 8 in Right, then the icon will appear in the taskbar at the right corner of your screen. — 18 —... - Page 20 All manuals and user guides at all-guides.com .For more completed instructions on how to set up this software, please refer to software manual in CD. ** Features and specifications of all A4 TECH products are subject to change without notification. —...
