Summary of Contents for Broil King BSACT-26-1

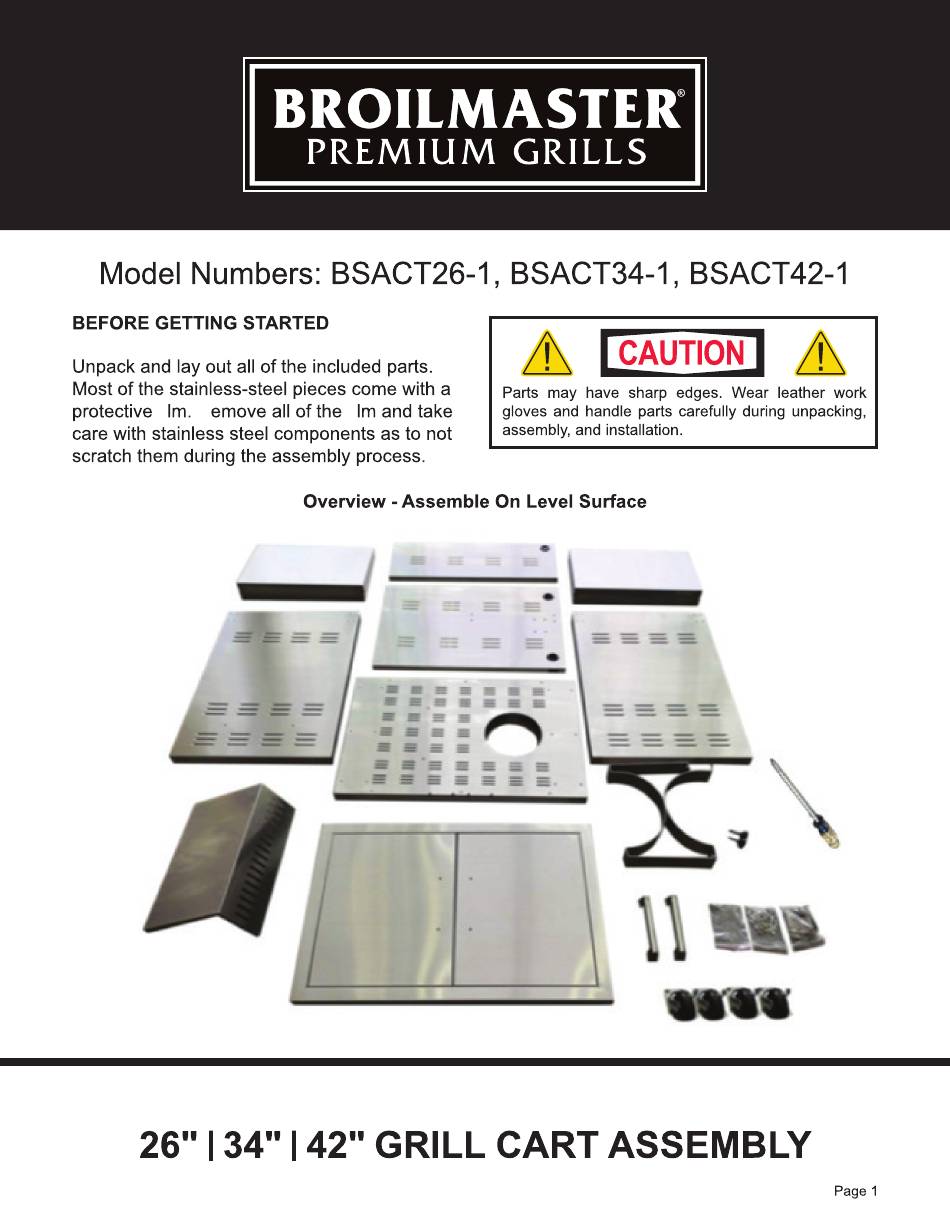

- Page 1 fi fi...
- Page 2 BR0036 BR0037 Side Panel (3A Left) BR0038 M4x8 Flat Head Screws 5 pcs Side Panel (3B Right) BR0039 BR0040 BR0041 M4x10 Screw 4 pcs + M4 Hex Nut 4 pcs BR0042 BR0043 BR0044 BR0045 BR0046 BR0047...
- Page 3 Attach Bottom Back Panel #4 to the Side Panels (#3A & #3B) by using 6 pcs M5x12 screw and 6 pcs M5 flat washer and then to the Bottom Panel #2 by using 3 pcs M5x12 screw and 3 pcs M5 flat washer. Locking Caster #1 using 4 pcs M5x12 screw and 4 pcs M5 flat washer on each.
- Page 4 Attach Step Panel #6 to the Bottom Panel #2 by using 2 pcs M5x12 screw and 2 pcs M5 & flat washer, and then to use 2 pcs M5x12 screw using 8 pcs M5x12 screw and 8 pcs M5 flat and 2pcs M5 flat washer to be attached with washer, and then to use another 3 pcs M5x12 Left Side Panel #3A...
- Page 5 Attach 4 pcs Side Shelf Brackets #10 to the Attach two Door Handles #8 to the assembled Right and Left Side Panels #3A & #3B by Door Unit 39 by using 4 pcs M4x8 screw and using 16 pcs M5x12 Countersunk Head Screw, 4 pcs M4 flat washer and then attach a Side Shelf #11 to each Side Panel.
- Page 6 The mounting holes in the Bottom Back Panel barbeque head with 2 pcs M5x12 screw #4 are for mounting the transformer. (These holes are only for the BBQ head with lights.) fi The larger round holes in the Upper and Bottom Back Panel #4 &...
