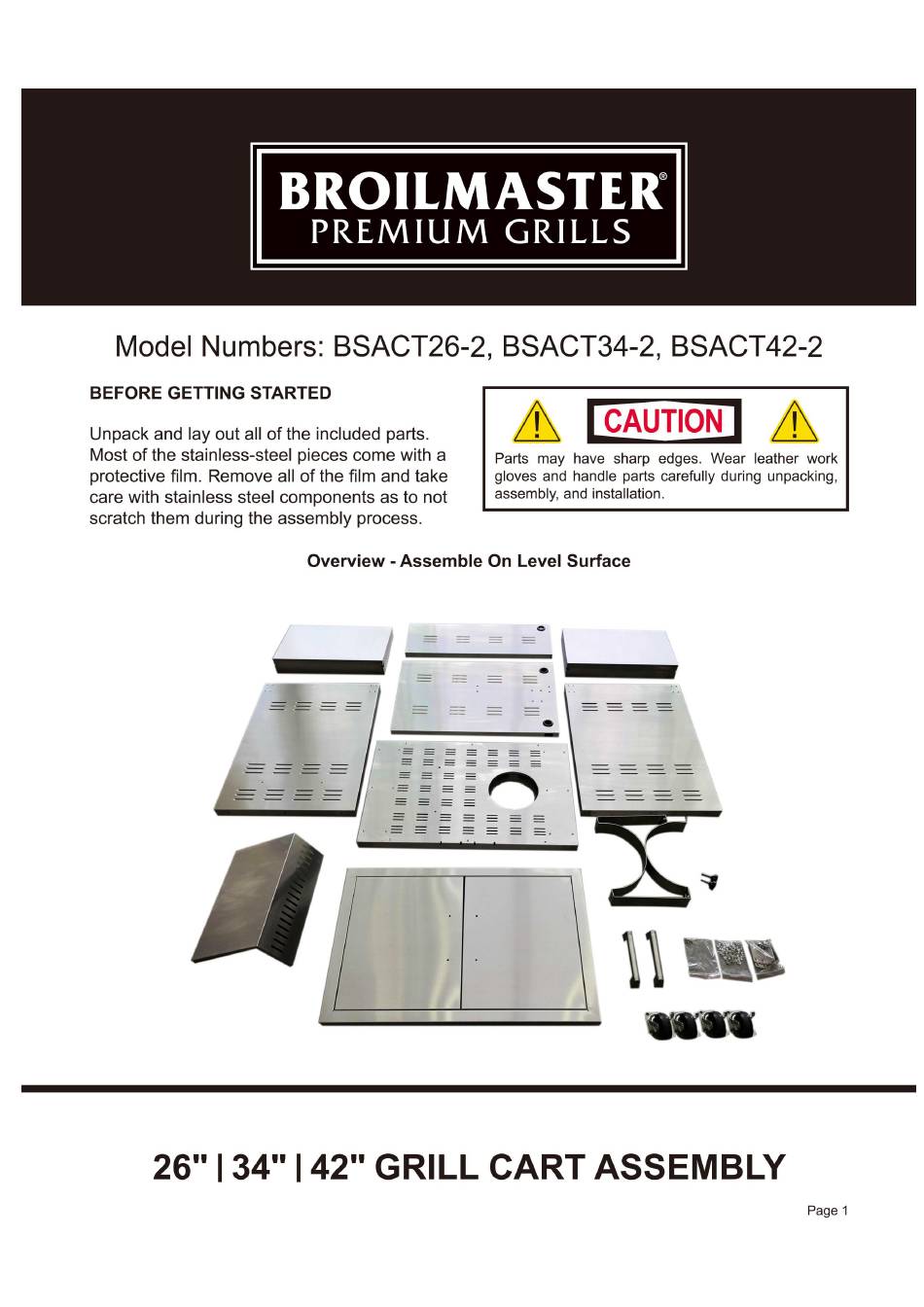

Broil King BSACT26-2 Assembly

Grill cart

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSACT26-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Broil King BSACT26-2

  • Page 3 Follow Steps 1 Through 5. STEP-1:Remove all parts from the carton and STEP-4:Attach Bottom Back Panel(#5)to the please use an assistant to help in this cart Side Panels(#3 & 4)by using 6 sets M5x12 assembly. screw with captive washer and then to the Bottom Panel(#2)by using 3 sets M5x12 screw STEP-2:With the Bottom Panel (...
  • Page 4 Follow Steps 6 Through 8. STEP-6:Attach Tank Interference Step(#7)to the Bottom Panel(#2)by using 2 sets M5x12 screw with captive washer, and then to use 2 sets M5x12 screw with captive washer to be attached with Left Side Panel(#3). STEP-8:Attach the Assembled Door Unit(#10)to the Right &...
  • Page 5 Follow Steps 9 Through 10. STEP-10:Assemble 1 set Left & Right Side STEP-9:Attach two Door Handles(#9)to the Shelf Brackets(#11)to the Left & Right Side Assembled Door Unit(#10)by using 4 sets M4x8 Shelves' slots(#3 & 4), then attach a Side screw with captive washer. Shelf(#12)to each Side Panel by using 16pcs M5x12 Countersunk Head Screw.
  • Page 6 Follow Steps 11. STEP-11:Finally,the barbecue is ready to be DRAW YOUR ATTENTION: installed into the cart. Once installed, secure Note1:Mounting holes in the Bottom Back the barbecue head with 2pcs M5x12 screw Panel#5:①&② is for Tank Securing Strap through the holes that are on each side, With Ring(#8).
  • Page 7 Installation Is Complete.
