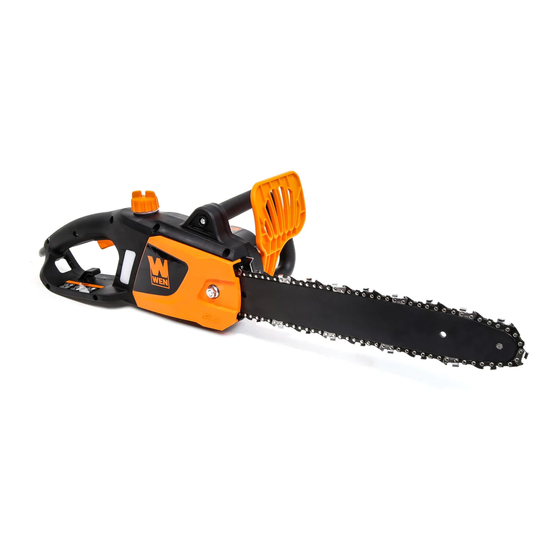

Wen 4015 Instruction Manual

14-inch electric chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL 4015
14-INCH ELECTRIC
CHAINSAW
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 4015

Summary of Contents for Wen 4015

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Chainsaw Safety Warnings ................6 Electrical Information ..................8 BEFORE OPERATING Know Your Chainsaw ..................9 Assembly & Adjustment ................. 10 OPERATION & MAINTENANCE Operation ....................... 12 Maintenance ....................

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Electric Chainsaw. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Chainsaw Safety Warnings

    CHAINSAW SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. CHAINSAW SAFETY 6. Do not operate the chainsaw while standing in a 1.
  • Page 7 3. Only use replacement bars and chains specified by rapidly towards the operator. Either of these reactions WEN. Incorrect replacement bars and chains may cause may cause a loss in control of the chainsaw, increasing chain breakage and/or kickback.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation.

  • Page 9: Before Operating

    UNPACKING & PACKING LIST WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure to follow the safety instructions may result in serious personal injury. UNPACKING With the help of a friend or trustworthy foe, carefully remove the chainsaw from the packaging. Make sure to take out all contents and accessories.

  • Page 10: Assembly & Adjustment

    ASSEMBLY & ADJUSTMENTS WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure to follow the safety instructions may result in serious personal injury. FILLING THE AUTO OIL SYSTEM This chainsaw features an auto-oiling system to keep the chain and guide bar properly lubricated. The oil level indi- cator shows the remaining oil in the chainsaw.
  • Page 11 ASSEMBLY & ADJUSTMENTS TENSIONING THE CHAIN NOTE: The saw chain must be tensioned properly in order to ensure safe operation. The chain tension is optimal if the saw chain can be lifted 1/8 inch (3 mm) from the center of the guide bar. Since the saw chain heats up during operation, its length can therefore fluctuate.

  • Page 12: Operation & Maintenance

    SAFETY WARNINGS 1. In order to maximize safety, do not operate the saw above shoulder height; pole saws are more suitable for that type of work. Your friends at WEN Products offer several pole saw models, available for purchase at wenproducts.com.
  • Page 13 OPERATION OPERATION PREVENTING KICKBACK The term kickback refers to when the saw suddenly jumps up and back. This is usually caused by the workpiece coming into contact with the guide bar tip or the clamping of the saw chain. A kickback generates an abrupt powerful force. The saw usually reacts in an uncontrolled manner, creating the pos- sibility of injury to the user.
  • Page 14 OPERATION OPERATION FELLING A TREE Fig. 10 Felling When bucking and felling operations are being performed by two or more people at the same time, the felling operations should be separat- ed from the bucking operation by a distance of at least twice the height of the tree being felled.
  • Page 15 OPERATION OPERATION BUCKING A LOG Support Log Along the Fig. 12 Bucking is cutting a log into lengths. It is important to make sure your Entire Length footing is firm and your weight is evenly distributed on both feet. When Cut from top (overbuck), avoid possible, the log should be raised and supported by the use of limbs, cutting earth.
  • Page 16 OPERATION OPERATION LIMBING A TREE Tree Limbing Fig. 16 Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log Limb off the ground. Remove the small limbs in one cut (Fig. 16).

  • Page 17: Maintenance

    OPERATION STORAGE Examine the chainsaw thoroughly for worn, loose or damaged parts. If you need assistance, contact WEN customer service at 1-800-232-1195. Store your chainsaw in a cool, dry place – do not store the saw where temperatures may exceed 104°F, such as in direct sunlight or inside a vehicle or metal building during the summer.

  • Page 18: Troubleshooting Guide

    4. Safety button is not pushed. ing the trigger. 5. Defective outlet. 5. Try a different outlet. 6. Defective motor or switch. 6. Contact WEN customer service. 1. Adjust chain tension properly (see 1. Chain is too tight. p. 11). 2. Oil level is low.

  • Page 19: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty.
  • Page 20 Sprng Washer 4015-0006 Micro-switch 18-12 4015-1812 Stator Screw 4015-0007 Lock-off Button The Rotor 18-13 4015-1813 Component 4015-0008 Button Spring 18-11-1 4015-1811-1 Bearing Anti-Lock Button 4015-0009 Spring 18-11-2 4015-1811-2 Rotor Assembly 4015-0010 Switch Button 18-11-3 4015-1811-3 Bearing Oil Box Cap 18-14 4015-1814...
  • Page 21 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 4015-0027 Connecting Wire 4015-0030 Tensioning Spring Right Housing 4015-0031 Chain Wheel 4015-0028 Assembly 4015-0032 Split Washer 28-1 4015-2801 Housing 4015-0033 Pan Head Screw Heat Insulation 4015-0034 End Cap Assembly...

  • Page 22: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
  • Page 23 NOTES...
  • Page 24 THANKS FOR REMEMBERING V. 2021.07.08...
