Wen 4017 Manual

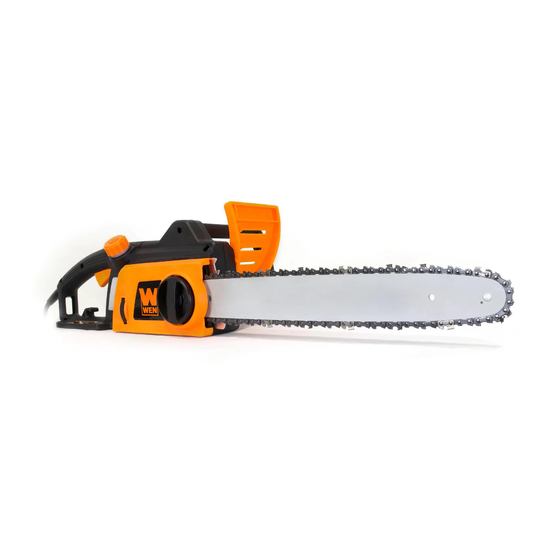

16? electric chain saw
Hide thumbs Also See for 4017:
Table of Contents

Advertisement

Quick Links

Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
16˝ ELECTRIC
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM

CHAIN SAW

(M-F 8AM-5PM CST)
Model # 4017
bit.ly/wenvideo

Advertisement

Table of Contents
loading

Related Manuals for Wen 4017

Summary of Contents for Wen 4017

  • Page 1: Chain Saw

    IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Assembly and Adjustments Operation Maintenance Troubleshooting Guide Exploded View and Parts List Warranty TECHNICAL DATA Model Number: 4017 120 V, 60 Hz, 12A Motor: 16 inch, Oregon Saw Chain: 44.2 feet per second Speed (no load): Oil Tank Capacity: 3.4 ounces...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. 1.

  • Page 4: Specific Safety Rules For Chain Saws

    GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.
  • Page 5 2. Do not overreach and do not cut above shoulder height. Keep the work area free from obstructions. 3. Only use replacement bars and chains specified by WEN. Replace dull blades as necessary. 4. Do not let the tip of the guide bar contact any surfaces.

  • Page 6: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 7: Know Your Chain Saws

    KNOW YOUR CHAIN SAW Power Cable Rear Handle Safety Button (not shown - opposite side of handle) Trigger Switch Oil Cap Sprocket Cover Bar Adjustment Locking Knob Front Handle Front Hand Guard Guide Bar Saw Chain Chain Tensioning Wheel Oil Level Indicator Cable Strain Relief Notch...

  • Page 8: Assembly And Adjustments

    ASSEMBLY AND ADJUSTMENTS WARNING: Always be sure that the tool is switched off and unplugged before adjusting, adding accessories, or checking a function on the tool. ASSEMBLY OF GUIDE BAR AND SAW CHAIN 1. Place the saw body on a firm and level surface. 2.
  • Page 9 ASSEMBLY AND ADJUSTMENTS REPLACING THE CHAIN 1. Rotate the bar adjustment locking knob and remove the cover of the saw’s body (see Assembly of Guide Bar and Chain for more details - Page 8). 2. Lift the worn saw chain out of the fitted slot in the guide bar.

  • Page 10: Operation

    OPERATION PREPARATION Before each use, check the following items to ensure safe working conditions. CHAIN SAW: before beginning work, inspect the chain saw for damage to the housing, the extension cord, the saw chain and the guide bar. Never use an obviously damaged machine. OIL TANK: check the fill level of the oil tank.

  • Page 11: Sawing Techniques

    OPERATION SAWING TECHNIQUES Saw off the lower branches on the tree first. By doing so, it is easier for the cut branches to fall to the ground. At the end of the cut, the weight of the saw suddenly increases for the user since it is no longer being supported by a branch.

  • Page 12: Maintenance

    MAINTENANCE CLEANING Regularly clean the tensioning mechanisms by blowing compressed air onto it or by cleaning it with a brush. Do not use any tools for the cleaning. Keep the oil away from the handle in order to ensure a secure hold. Clean the machine as necessary with a damp cloth and a mild cleanser, if appropriate.

  • Page 13: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION No power supply Check the power supply. Try a different source of power. Change as Defective outlet necessary. Saw does not operate properly Damaged Extension cable Check cable and replace if necessary. Push the safety button before pulling the Safety button not pushed trigger.

  • Page 14: Exploded View And Parts List

    Blade Adjustment Wheel 4017-032 Motor Gear Bushing 40-8 4017-079 Bumper 4017-033 Motor Plate Screws 40-9 4017-080 Countersunk Bumper Screws 4017-034 Left Housing 40-10 4017-081 Oil-Out Seal Ring 4017-035 Rotor Subassembly 4017-082 Tensioning Spring 24-1 4017-036 Bearing 4017-083 Sprocket 24-2 4017-037 Rotor 4017-084...
  • Page 15 EXPLODED VIEW AND PARTS LIST...

  • Page 16: Warranty

    LIMITED TWO YEARS WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
