SNBC HERALD Operation Manual

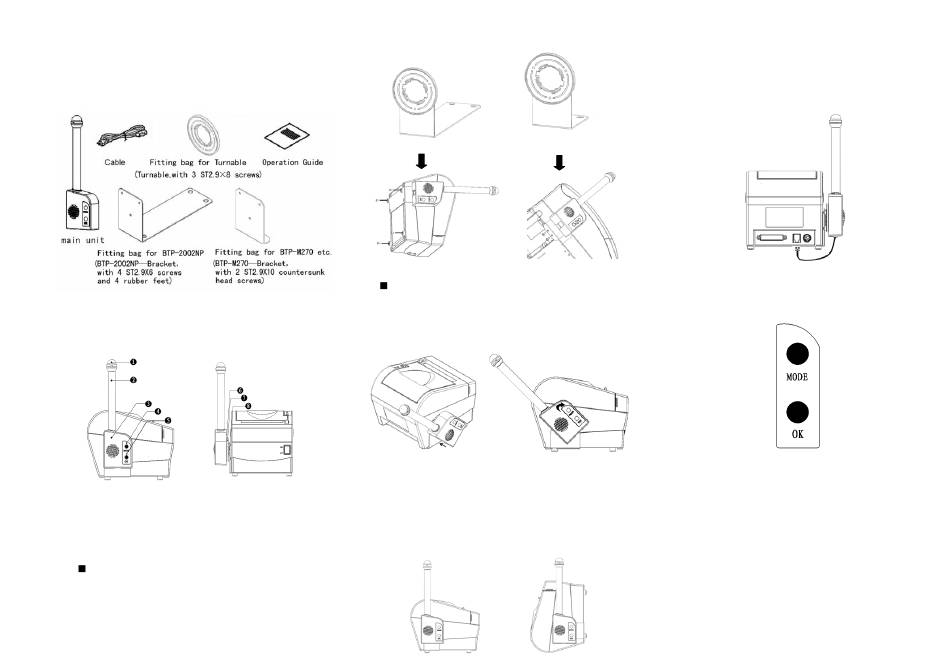

A. Package contents
The parts that are mentioned hereafter are included in the
carton. Please contact our resellers if any parts are missing
or damaged.
B. About the HERALD
Exterior and structure（see figures below）
1—Light 2—Light pole
4—MODE key 5—OK key
7—Turn-plate 8—Bracket
C. Assembling the HERALD
Mounting of the bracket
Mount the metal bracket with two nylon feet and two screws
onto the bottom of the printer as shown in the following
diagram. Then mount the two remaining nylon feet onto the
1
bottom of the printer opposite the metal bracket (see
drawing)
BTP-2002NP
Mounting the Main Unit
Step 1: Insert the Main Unit in the plastic turn-plate of the
Bracket as shown in Figure 1.
FIGURE 1
Step 2：Rotate the Main Unit clockwise as shown in figures
3—Top cover
2 and 3 if the printer is to be used on a horizontal surface. If
6—Bottom cover
the printer is mounted on a vertical surface by means of our
Wall Mount System then the Main Unit should be rotated
anti-clockwise.
Step 3：After you have ensured that the printer is switched
off, the Main Unit can be connected to the Cashdrawer
connector at the back of the printer as shown in figure 5.
BTP-M270 etc.
D. Printer key-pad
FIGURE 2
The printer module has two keys: MODE key and OK key
The HERALD has two modes, called "Operation" and
"Setting". The operation mode is used for operating the
HERALD; the settings mode is used for setting the optical
and acoustic signals of the HERALD. When the printer is
switched on after connecting the HERALD, a test
procedure will start and the HERALD will give a short beep
and a brief light flash. This indicates that the HERALD is
2
FIGURE 3 FIGURE 4
FIGURE 5
