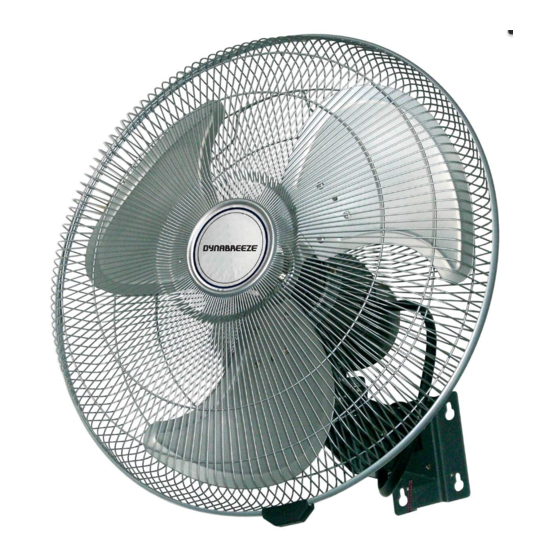

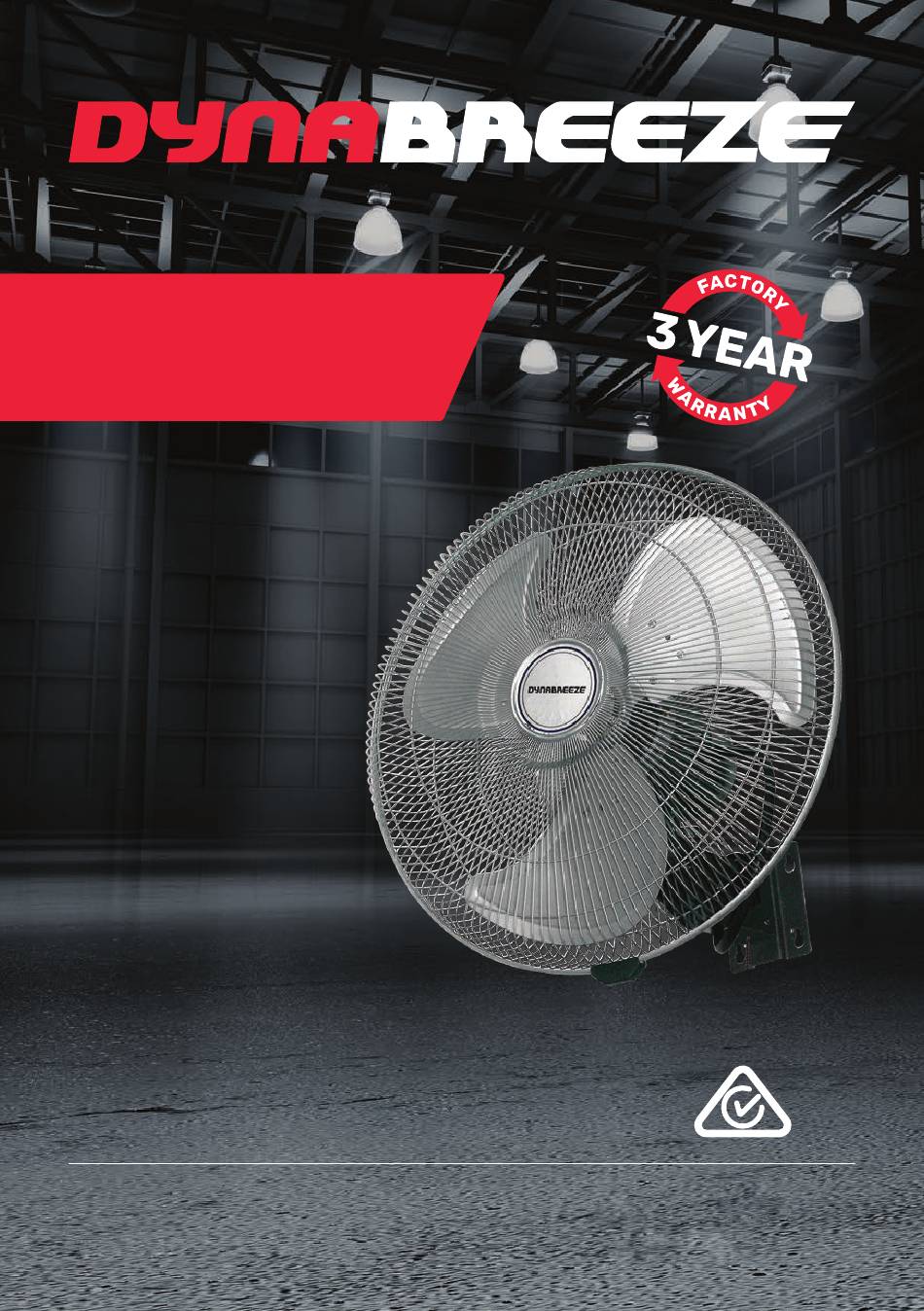

- Page 1 TRADE QUALITY SINCE 1995 INDUSTRIAL 450MM WALL FAN MODEL FA-23181 Instruction User Manual & Warranty CAUTION: Read the Assembly & Safety Instructions before operating and retain for future reference...
-
Page 2: Specifications
Thank you & Congratulations on the purchase of your Dynabreeze Industrial 450mm Wall Fan To find out more information on this product, please visit www.dynabreeze.com.au or contact: Tradeware Address 45 Birralee Rd, Regency Park SA 5010 Phone 1300 658 494... - Page 3 OPERATION CONDITIONS & SAFETY PRECAUTIONS When using electrical appliances, basic safety precautions should be WARNING: followed to reduce the risk of fire, electric shock and injury to persons or property. • To avoid a hazard due to instability of the •...
-
Page 4: Parts Identification
PARTS IDENTIFICATION Power Cord Red Cord: Oscillation Control Wall Mount Plate Oscillation Arm Safety Grille Motor Head Fan Blade Motor Neck Electric Motor Tilt Adjustment Speed Control Dial White Cord: On/Off Speed Control Cord 4 450MM WALL FAN... - Page 5 ASSEMBLY & OPERATION Tools required Drill Assembling the fan 1. Locate the bag that contains the wall plaster mounting hardware. 2. Select location to place it on the wall. Ensure power supply is nearby and NOTE: power cord is not too tight or in a position to interfere with oscillating function.
- Page 6 Assembling the fan cont. Operating the fan 4. Once the 4 fixings are in place, mount the After reading these instructions, plug the fan over the screw heads and slide down power cord into the power outlet. into position so the screw heads do not slip The fan can be turned on by pulling down out of the mounting bracket hole.
-
Page 7: Warranty
Tradeware offers a 3 Year Warranty. The additional warranties, terms and conditions are outlined on the website www.dynabreeze.com.au under the Support tab. Under Support you can also Register your product upon purchase and enjoy the peace of mind of knowing your product is registered should anything happen. - Page 8 Wall Mounting - Drilling Diagram 74mm Cut out this diagram to use as a drilling guide...
