Right LED
LAN P1-P5
Left LED
Right LED

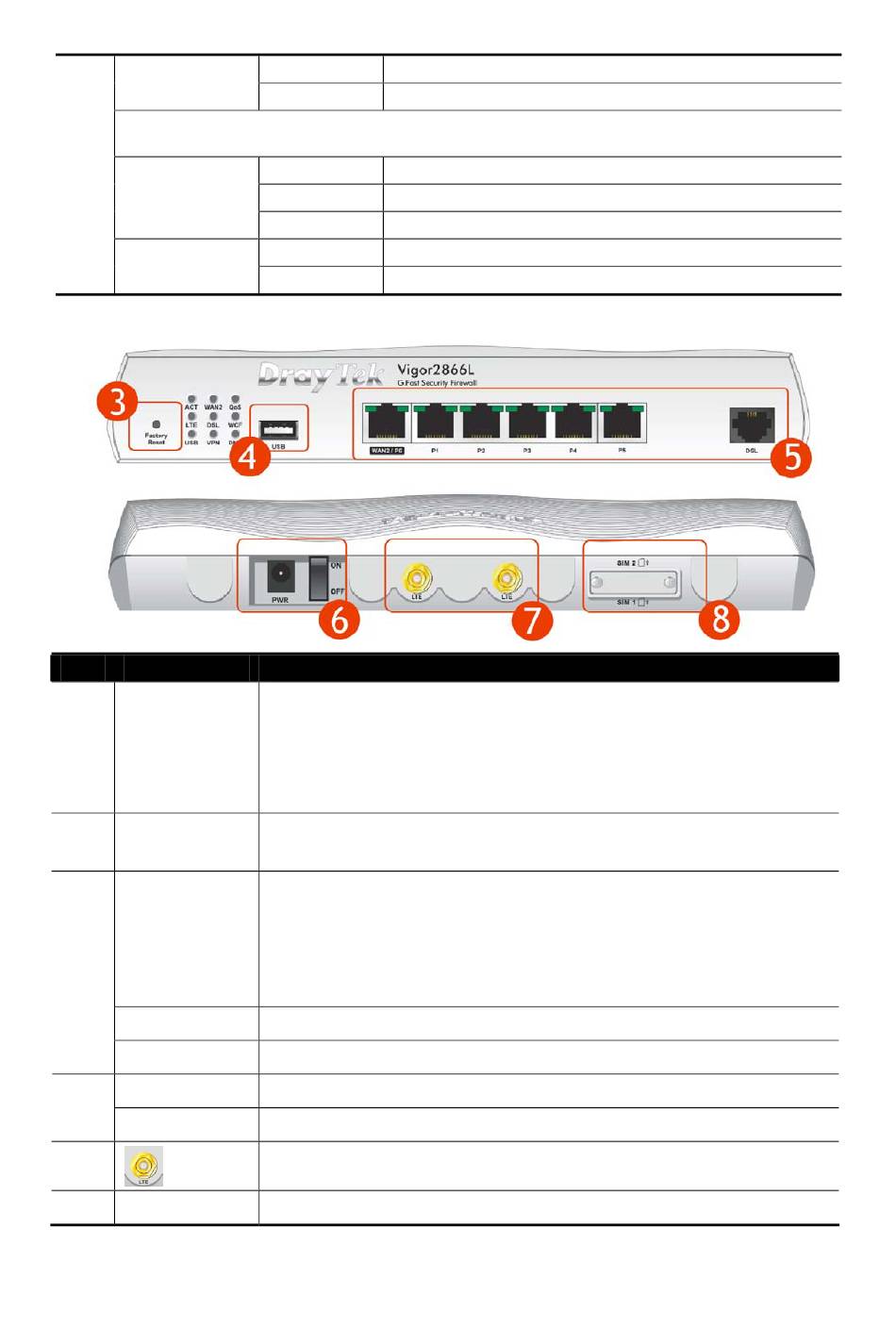

No.
Interface
Factory
(3)
Reset
(4) USB
WAN2 / P6
(5)
LAN P1-P5
DSL
PWR
(6)
ON/OFF
(7)
(8) SIM 2/1
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is connected with 10/100Mbps
Description
Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for more than
5 seconds. When you see the ACT LED begins to blink rapidly
than usual, release the button. Then the router will restart
with the factory default configuration.
Connecter for a USB device (for 3G/4G USB Modem or
printer or thermometer).
Connecter for local network devices or modem for
accessing Internet.
It is a switchable port. It can be used for LAN connection or
WAN connection according to the settings configured in
WUI.
Connecters for local network devices.
Connecter for accessing the Internet.
Connecter for a power adapter.
Power Switch.
Connecter for installing LTE antennas.
Slots for installing SIM card.
