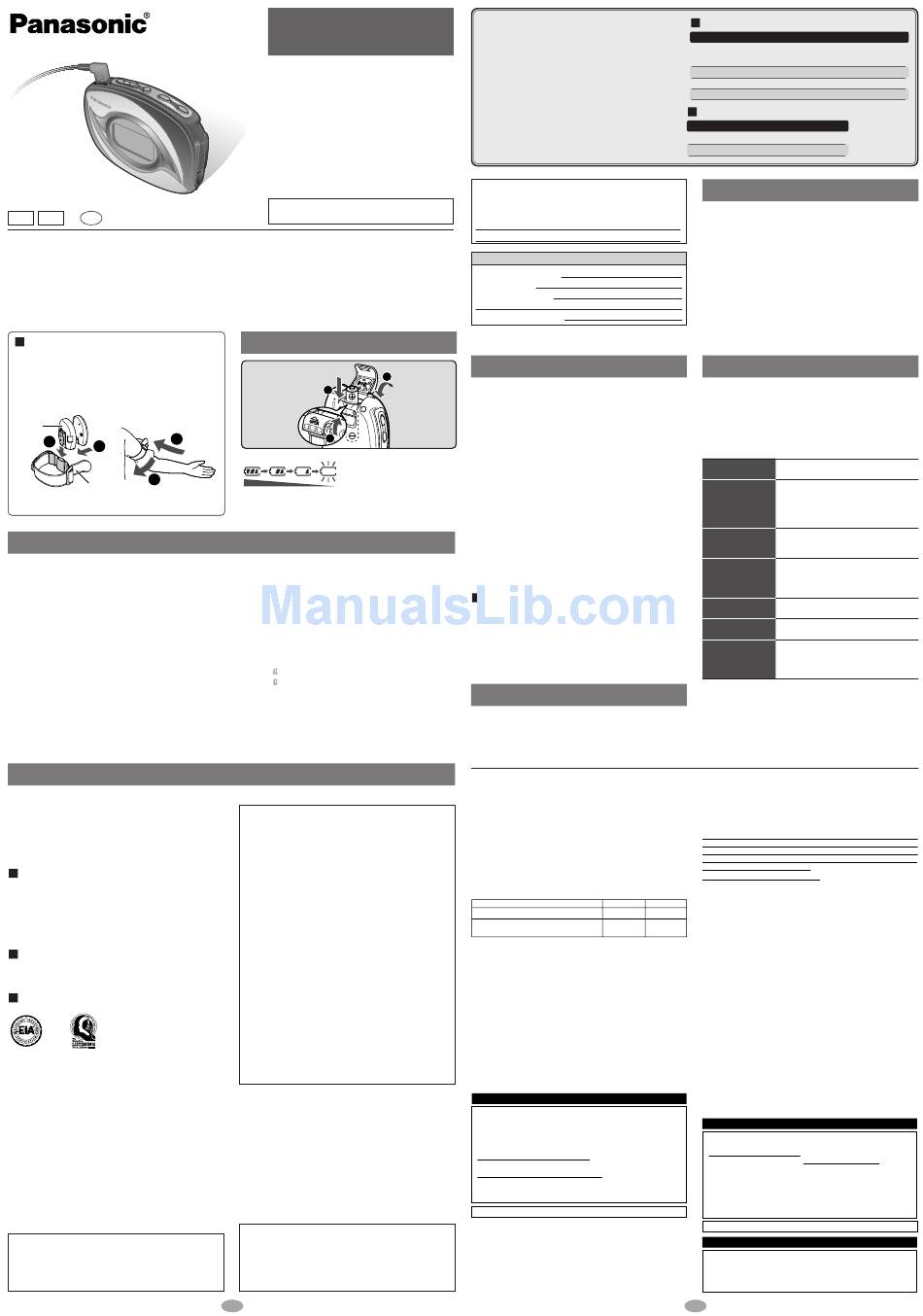

Panasonic SV-SW30S Operating Instructions

Digital audio player
Hide thumbs


Advertisement

P
PC
En
Panasonic Consumer Electronics Company
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
http://www.panasonic.com/
Panasonic Sales Company
Division of Matsushita Electric of Puerto Rico, Inc. ("PSC")
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Supplied accessories
Use numbers indicated when asking for replacements.
1 Pair of stereo headphones: L0BAD0000171
1 USB cable: K1HA05AD0001
1 CD-ROM (USB Driver)
1 Arm Band: RKHT0016
1 Carrying Case: RYKT0058
Carrying
Case
3
2
1
4
Arm Band
In the U.S.A: To order accessories, refer to "Accessory
Purchases" on page 2.

Specifications

Memory size:
SV-SW20V: 128 MB
SV-SW30V: 256 MB
Supported sampling frequency:
MP3 32 kHz, 44.1 kHz, and 48 kHz
WMA 8 kHz to 44.1 kHz
Supported bit-rates:
MP3 8 kbps to 320 kbps (128 kbps is recommend)
WMA 32 kbps to 192 kbps (96 kbps is recommend)
No. of channels:
Stereo, 2 channels
Frequency response:
20 Hz to 20,000 Hz (+0 dB, -6 dB)
Radio Frequency range (FM):
87.9 MHz to 107.9 MHz (200 kHz steps)
87.5 MHz to 108.0 MHz (100 kHz / 50 kHz steps)
Output:
4.5 mW + 4.5 mW (32 Ω, M3 jack)
Cautions
• Leave some slack in the cord of the headphones if you wind them
around the unit.
Do not;
• disassemble, remodel, drop, or allow the unit to get wet.
• use or store in locations directly exposed to sunlight, corrosive
gases, a heat vent, or a heating appliance.
• use or store in humid or dusty locations.
• use force to open the battery lid.
Batteries
• Do not peel off the covering on batteries and do not use if the
covering has been peeled off.
• Align the poles + and - correctly when inserting batteries.
• Remove batteries if you do not intend to use the unit for a long time.
• Do not throw into fire, short-circuit, disassemble, or subject to
excessive heat.
• Do not attempt to recharge dry cell batteries.
Allergies
Discontinue use if you experience discomfort with the headphones or
any other parts that directly contact your skin. Continued use may
cause rashes or other allergic reactions.
Listening caution
Do not play your headphones at a
high volume. Hearing experts
advise
against
extended play.
EST. 1924
If you experience a ringing in
your ears, reduce volume or discontinue use.
Do not use while operating a motorized vehicle. It may create a traffic
hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in
potentially hazardous situations.
Even if your headphones are the open-air type designed to let you
hear outside sounds, don't turn up the volume so high that you can't
hear what's around you.
Sound can be deceiving. Over time your hearing "comfort level"
adapts to higher volumes of sound. So what sounds "normal" can
actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE
your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and
clearly, and without distortion.
Once you have established a comfortable sound level:
• Leave it there.
Caution:
• Use only the provided shielded interface cables when
connecting to computer.
• To reduce risk of radio interference caused by headphone-,
earphone- or microphone cable, only use adequate accessories
with cable length less than 3 m.

Operating Instructions

Digital Audio Player

SV-SW30V
Model No.
SV-SW20V
Dear Customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product,
please read these instructions completely. Please keep this
manual for future reference.
Caution This unit is not waterproof and should
not be exposed to excessive moisture.
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.ca
© 2004 Matsushita Electric Industrial Co., Ltd.
Printed in Taiwan
Battery (not included)
1 alkaline battery
(LR03, AAA, AM-4)
2
1
Battery indicator
Full
Empty:
Replace with a
fresh battery
Power supply:
DC 1.5 V (one LR03, AAA, AM-4 battery)
Approximate play times:
10 hours (alkaline battery, PLAYER)
6 hours (alkaline battery, FM RADIO)
Maximum dimensions (W×H×D):
3
56.3 × 82.0 × 25.1 mm (2
/
16
Cabinet dimensions (W×H×D):
1
54.0 × 81.0 × 23.0 mm (2
/
8
Mass:
67.7
with battery (2.388 oz)
56.2
without battery (1.982 oz)
• Specifications are subject to change without notice.
• The play time shown depends on operating conditions.
• Mass and dimensions are approximate.
• MB means one million bytes. Useable capacity will be less.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.:
CAUTION:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Any unauthorized changes or modifications to this equipment
would void the user's authority to operate this device.
continuous
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.:
Notice:
This product has parts that contains a small amount of mercury.
Disposal of these materials may be regulated in your community
due to environmental considerations.
For disposal or recycling information please contact your local
authorities, or the Electronics Industries Alliance:
<http://www.eiae.org.>
1
• Windows Media Player (Version 9.0 or later
recommended) Free download from
http://www.microsoft.com/downloads/
• Supports playback of MP3 and WMA music files
• Built-in FM tuner
• Portable data storage device (Plugs in directly to
your PC)
• Play list (PLAYER) can contain up to 99 tracks.
These tables show the mode menu items available in
the PLAYER and FM RADIO modes.
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER
SERIAL NUMBER
User memo
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
RQTT0553-P
M0204SF0
TELEPHONE NUMBER

Product service

3
1. Damage requiring service
The unit should be serviced by qualified service personnel if:
(a) Objects or liquids have gotten into the unit; or
(b) The unit has been exposed to rain; or
(c) The unit does not operate normally or exhibits a
marked change in performance; or
(d) The unit has been dropped or the cabinet damaged.
If rechargeable batteries
2. Servicing
are to be used,
Do not attempt to service the unit beyond that described
rechargeable batteries
in these operating instructions. Refer all other servicing to
manufactured by
authorized servicing personnel.
Panasonic are
3. Replacement parts
recommended.
When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same
characteristics as the original parts.
Unauthorized substitutes may result in fire, electric shock,
or other hazards.
4. Safety check
After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., refer to "Customer Services Directory" below
1
" × 3
/
" × 1")
4
on page 2.
In Canada, contact the Panasonic Canada Inc. Customer Care
3
7
" × 3
/
" ×
/
")
16
8
Centre at 905-624-5505, or visit the website
(www.panasonic.ca), or an authorized Servicentre close to you.
Maintenance
Clean with a soft, dry cloth.
Do not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
ONLY FOR U.S.A.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Portable Audio Products Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company or Panasonic Sales
Company (collectively referred to as "the warrantor") will, for the length of the
period indicated on the chart below, which starts with the date of original
purchase ("warranty period"), at its option either (a) repair your product with new
or refurbished parts, or (b) replace it with a new or a refurbished product. The
decision to repair or replace will be made by the warrantor.
Product or Part Name
All Portable Audio Products except item listed below
Rechargeable batteries
(in exchange for defective item)
During the "Labor" warranty period there will be no charge for labor. During the
"Parts" warranty period, there will be no charge for parts. You must mail-in your
product during the warranty period. This Limited Warranty excludes both parts and
labor for batteries, antennas, and cosmetic parts (cabinet). This warranty only applies
to products purchased and serviced in the United States or Puerto Rico. This warranty
is extended only to the original purchaser of a new product which was not sold "as is".
Mail-In Service
For assistance in the continental U.S.A. in obtaining repairs please ship the
product to:
Panasonic Services Company
Customer Servicenter
Suite B
4900 George McVay Drive
McAllen, TX 78503
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or
fax (787)-768-2910.
When shipping the unit carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a day time phone number where you can be reached.
Customer Services Directory
Obtain Product Information and Operating Assistance;
locate your nearest Dealer or Servicenter;
purchase Parts and Accessories;
or make Customer Service and Literature requests by
visiting our Web Site at:
http://www.panasonic.com/support
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
PLAYER
Mode
NORMAL/ ROCK/ JAZZ/ CLASSIC/ POP/
SOUND
USER (BASS, TREBLE)
PLAY
NORMAL/ ONE REPEAT/ ALL REPEAT/ RANDOM
INFO.
Information (TITLE/ ARTIST/ BIT RATE)
ERASE
SINGLE TRACK/ PLAY LIST/ ALL
FM RADIO
Mode
BAND STEP
RECEPTION

System Requirements

OS: Microsoft
Professional, Windows
SV-
Drive: CD-ROM Drive
• The player and USB Driver cannot be used on Microsoft
Windows
and Macintosh
USB Driver:
• Operation on an upgraded OS is not guaranteed.
• Operation on an OS other than the one pre-installed is not
guaranteed.
• Multi-CPU or Multi-boot environments are not supported.
• Only users having system administrator (Administrator)
authority can use this software.

Troubleshooting guide

Before requesting service, make the below checks. If you are
in doubt about some of the check points, or if the remedies
indicated in the chart do not solve the problem,
refer to the "Customer Services Directory" if you reside in
the U.S.A. ( → below on page 2), or
refer to the "Product information" if you reside in Canada
( → see left).
No operation
No sound or there is
a lot of noise
Play doesn't resume
from the track where
I stopped play
Play doesn't start
from the first track
The unit stops
working
The display is too
dark or too light
Play doesn't start
immediately
Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.,
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER
WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED
WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
Parts
Labor
caused by products not supplied by the warrantor, or failures which result from
One (1) Year
One (1) Year
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
Ten (10) Days
Not applicable
maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other
business or rental use of the product, or service by anyone other than a Factory
Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED
WARRANTY COVERAGE".
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for
lost time, travel to and from the servicer, loss of or damage to media or images,
data or other memory or recorded content. The items listed are not exclusive, but
are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so
the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or
after the warranty period, you may contact your dealer or Servicenter. If the
problem is not handled to your satisfaction, then write to the warrantor's
Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
Accessory Purchases
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com or,
send your request by E-mail to: npcparts@panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday – Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express,
and Personal Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
Service in Puerto Rico
Matsushita Electric of Puerto Rico,
Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Phone (787) 750-4300, Fax (787) 768-2910
2
Options
Options
50 kHz/ 100 kHz/ 200 kHz
NORMAL/ CITY
Windows
98SE, Windows
Me, Windows
2000
®
®
®
®
XP Home Edition/Professional
®
®
3.1, Windows
95, Windows
98, Windows NT
®
®
®
®
.
®
• The HOLD function is on.
• Replace the battery if it is flat.
• Ensure the headphone plug is inserted firmly.
• Wipe the plug clean with a clean cloth.
• Separate the unit from other equipment,
such as mobile phones and televisions.
• Turn up the volume.
• This doesn't work if:
You download or delete files.
The random play mode is on.
• The random play mode may be on.
• Play usually resumes from the track where
you last stopped play. Use skip to return
to the first track.
• Take the battery out for about 5 seconds,
then reinsert it.
• Adjust the contrast.
• Depending on the amount of data in the
unit, it may take some time for play to
start after downloading or changing the
battery.

Advertisement

Table of Contents
loading

  Related Manuals for Panasonic SV-SW30S

  Summary of Contents for Panasonic SV-SW30S

  • Page 1: Operating Instructions

    Suite B 4900 George McVay Drive McAllen, TX 78503 For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910. When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.
  • Page 2: Files And Folders Structure Display On Your Computer

    Connecting to a computer and downloading files Connection Downloading MP3 and WMA 1. In My Computer or Explorer, open the player’s folder (removable disk or device). Turn the unit on. 2. Open the PLAYER folder. Press 3. Copy and paste or drag and drop the MP3/WMA files from your computer’s folder into the PLAYER folder.

This manual is also suitable for:

Sv-sw20sSv-sw30aSv-sw20aSv-sw20vSv-sw30vTy-sp37p4-k ... Show all
