Oxford & Garden KORAL MODULAR Assembly Instructions

KORAL MODULAR
ASSEMBLY INSTRUCTIONS

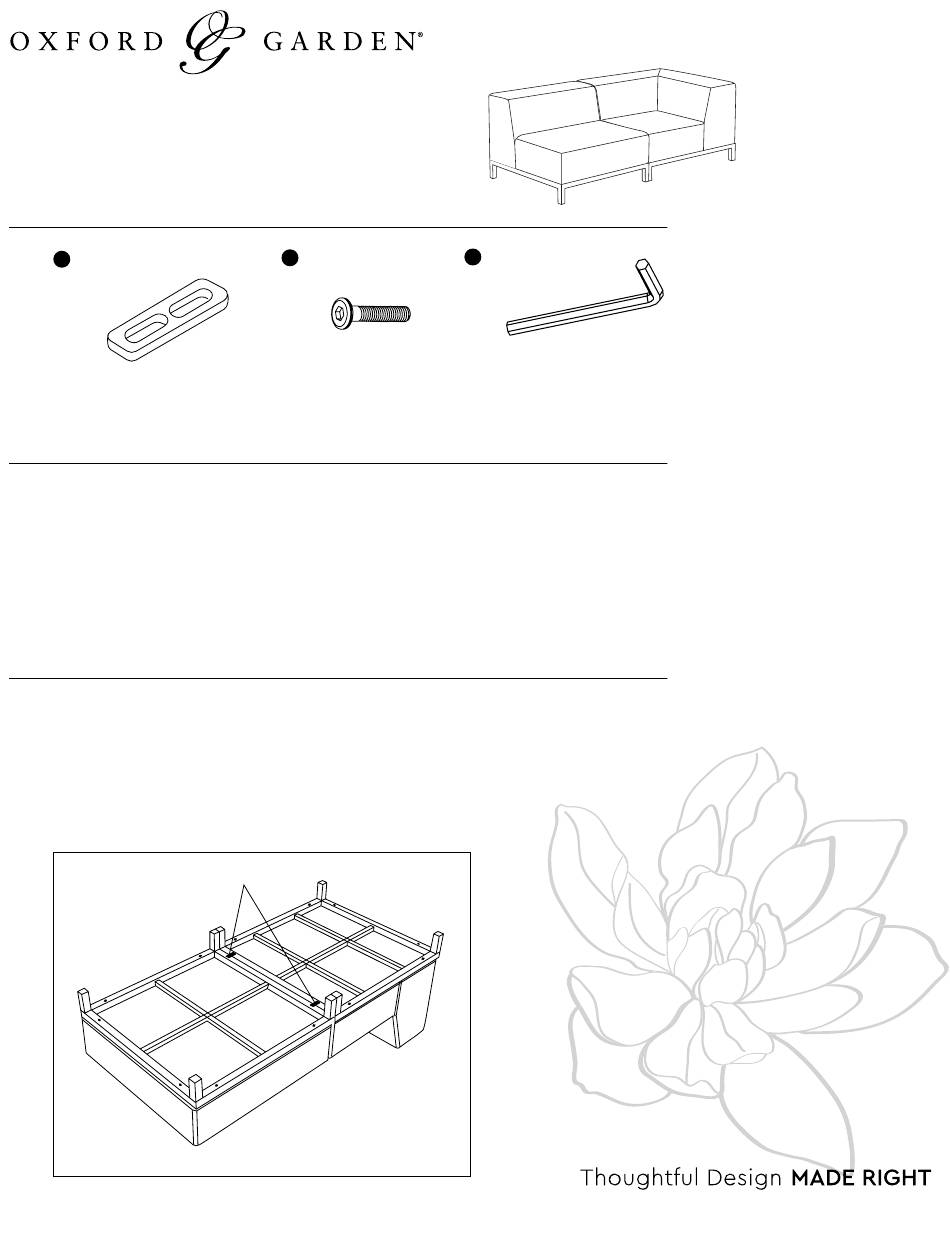

CONNECTING HARDWARE FOR EACH MODULE

A Connector Bracket
Quantity: 8

MODULE CONNECTION

Each base module is equipped with two low profile insert nuts on each side (totaling 8 per base). 8 connector
brackets and 16 connector bolts are included to connect ANY possible side of the base module. You may have
more hardware than what is needed based on the configuration you have chosen.

CONNECTING TWO OR MORE MODULAR UNITS

Lay units to be connected on their sides or backs on a clean, flat surface, such as provided cardboard box or
blanket, to protect the surfaces from scratches. Align the low profile insert nuts of two adjacent modules and
connect them using the provided bracket and connecting bolts. Loosely tighten bolts and brackets. Repeat process
for each module you wish to connect. Secure bolts tightly with the allen wrench. Return joined units to their
upright standing position.
NOTE: For stability and safety, it is essential that all units be secured to each other using the supplied hardware.
Connector Brackets
15 Kingbrook Parkway, Suite 100 Simpsonville, KY 40067 p. 877.866.3331
B
Connector Bolt
Quantity: 16
C
Allen Wrench
Quantity: 1
f. 502.719.8888 oxfordgarden.com
Ver. 06.30.20
